MAINTENANCE / INSTALL & TROUBLESHOOT GUIDE FOR MVDS
RTMS Detector (MVDS):

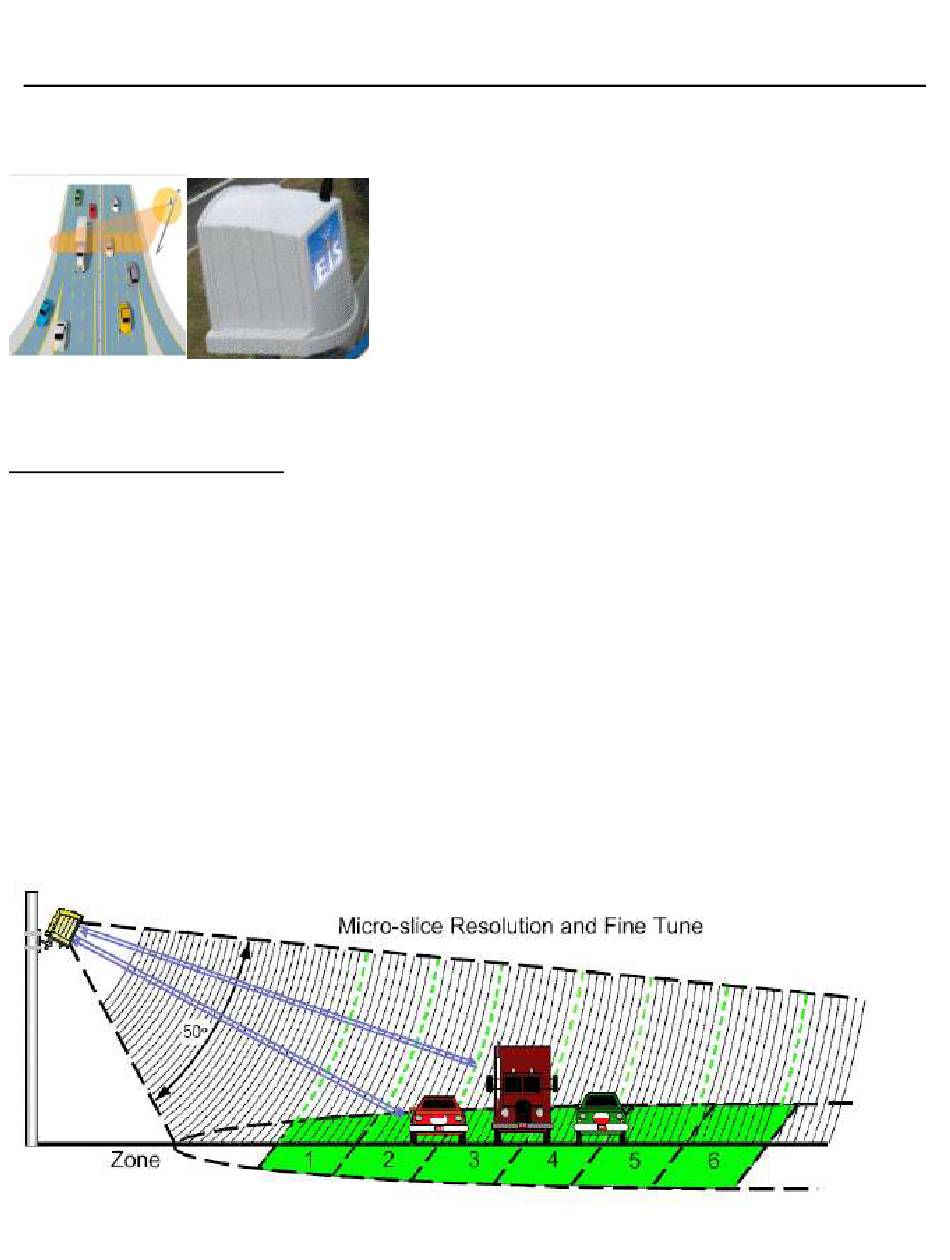

The non-intrusive radar-based RTMS® (Remote Traffic Microwave Sensor) G4™ is an advanced
sensor for the detection and measurement of traffic on roadways. The RTMS G4 is small,
roadside pole-mounted radar operating in the microwave band. Simultaneously, the sensor
provides per-lane presence as well as volume, occupancy, speed and classification information
in up to 12 user-defined detection zones. Output information is provided to existing
controllers via contact closure and to other computing systems by serial or IP communication
port or by an optional radio modem. A single RTMS can replace multiple inductive loop
detectors and the attendant controller
