G4 Software

RTMS Sensor ID Options

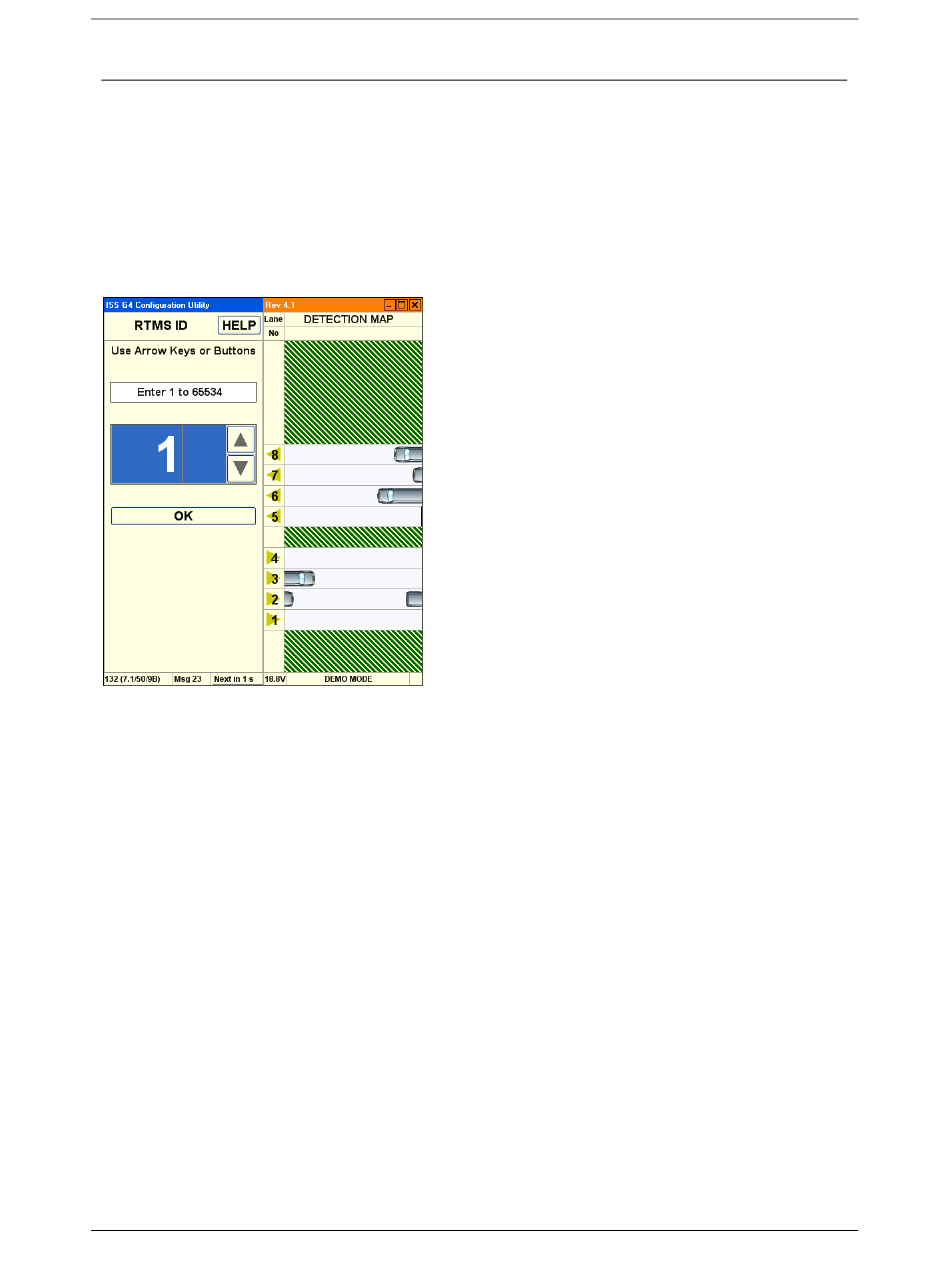

This screen allows you to set the Sensor ID parameter. (Please consult ISS Canada for
assistance designing large serial networks.)
•
X3 Stat Mode. The Sensor ID range is between 1-254.
•
G4 Mode. The Sensor ID range is between 1-65534.
The Sensor ID must be set only if Polled data mode is used. Units should be assigned unique
ID numbers to avoid data corruption.
Options are:
•
Text Entry. Use the keyboard to type an integer and the Sensor ID to the desired value.
•
Arrows. Click UP and DOWN arrows on screen or use arrow keys to set Sensor ID to the
desired value.
•
OK. Activates the new value and returns to the main screen.
