RTMS Communication Options

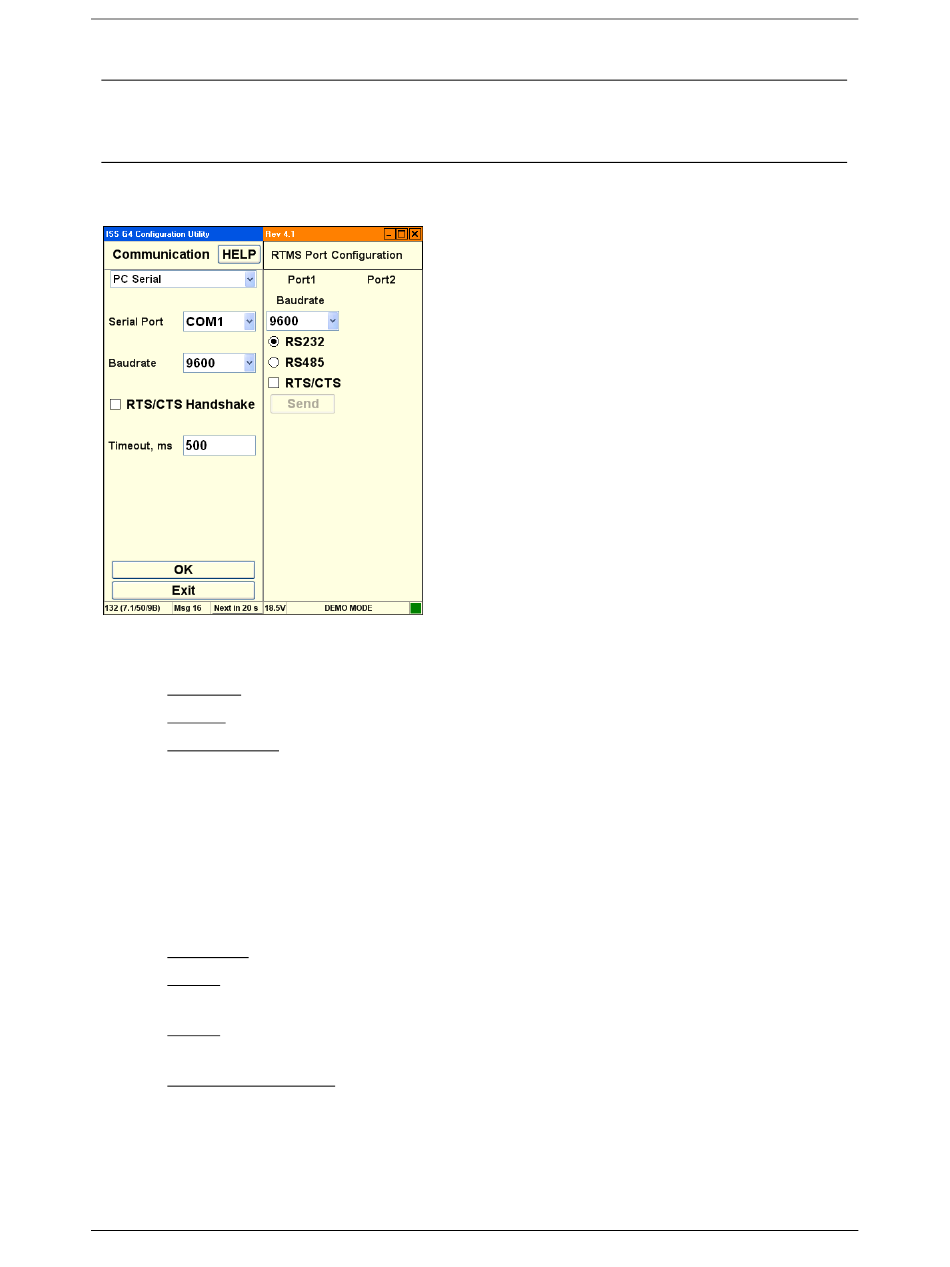

This screen allows you to configure communication protocols and specific parameters.

PC Serial Communication Options

Options are:
•
Mode. This drop-down allows to you to select the communication mode. Options are:
−
PC Serial. This option selects PC Serial communication.
−
TCP/IP. This option selects TCP/IP communication.
−
Radio Modem. This option selects radio modem communication.
•
Baud Rate. This drop-down allows to you to select the baud rate in Bits Per Second.
Available baud rates differ by connection mode.
•
RTS/CTS. This enables handshake functionality between two modems.
•
Timeout, ms. This option allows you to specify the timeout period. If communication is
not established during this timeout period, the software returns to this screen and allows
you to try again.
•
Port 1. Allows you to specify communication parameters for Port 1.
−
Baud Rate. This drop-down allows to you to select the baud rate in Bits Per Second.
−
RS232. Allows you to specify the type of cable connection between the computer and
the RTMS sensor.
−
RS485. Allows you to specify the type of cable connection between the computer and
the RTMS sensor.
−
RTS/CTS Handshake. This uses handshake functionality between the PC and RTMS.
•
Send. Sends the communication parameters to the RTMS sensor.
