Chapter 2
The TCP/IP Port with RS-232
CAT5 cable must be used for lengths between 30 ft [10m] and 330 ft [100m]. Lengths greater
than 330 feet are not supported for Ethernet communication.
It is recommended that both TCP/IP and RS-232 ports be brought out to their respective
connectors, as shown. The RS-232/485 port is useful for setup and maintenance purposes, the
IP port for data collection and remote setup.

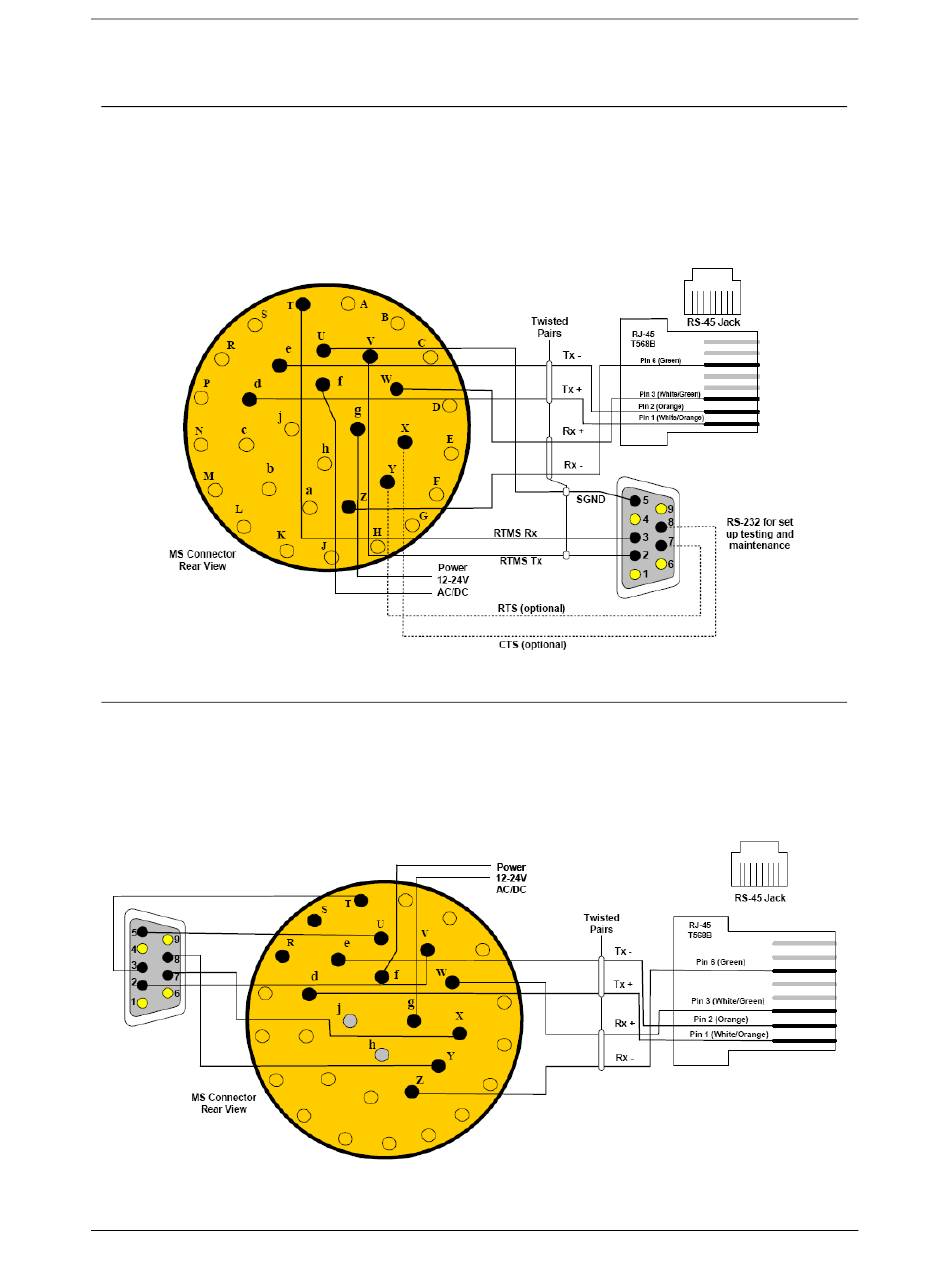

Figure 2.7. TCP/IP Port with RS-232 Wiring Diagram
The TCP/IP Port with RS-485
It is recommended that both TCP/IP and RS-232 ports be brought out to their respective
connectors, as shown. The RS-232/485 port is useful for setup and maintenance purposes, the
IP port for data collection and remote setup.
Figure 2.8. TCP/IP Port with RS-485 Wiring Diagram
G4 User Manual
RTMS G4 Installation
© 2009 ISS Canada
2-9
