How to Fix Splashing

Splashing occurs when a vehicle from one lane triggers a detection in another lane. Lane
changes are one cause of splashing. Narrow lanes or incorrect boundaries are other common
causes.
1. Start the WinRTMS software.
2. Select Manual Settings from the listed options.
3. Select Zones from the listed options.

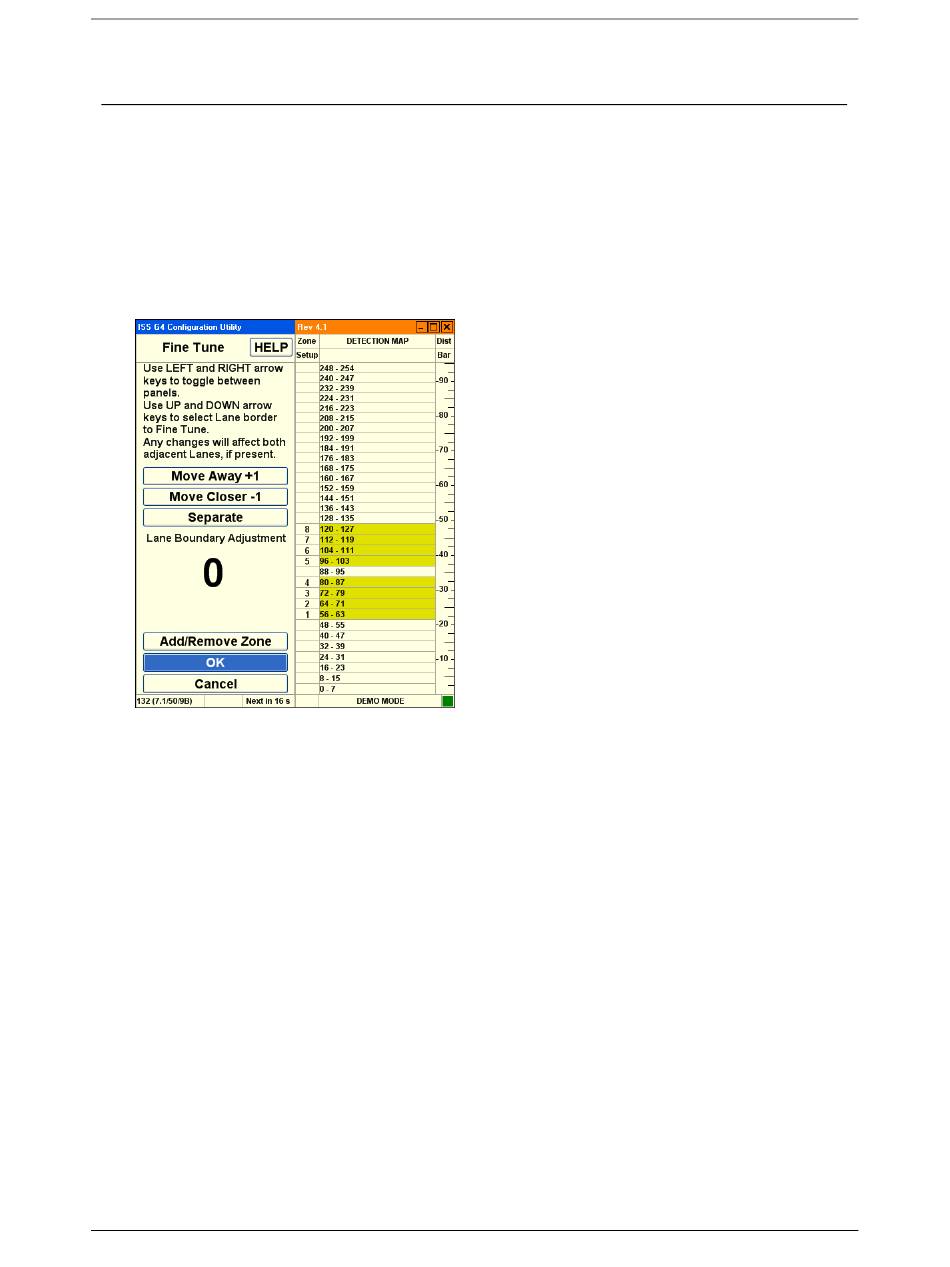

4. Select Fine Tune from the listed options.
5. To fix splashing, select a Zone No. and boundary between zones by using left click or
SPACE.
6. Use the Move Away and Move Closer buttons to change the boundary by a single micro
slice at a time. Observe the effect on detection on the Fine Tune or Manual Setup Screen.
−
The boundary move affects the zones on either side, reducing one and enlarging the
other.
−
A panel counter shows the amount of shift at any time. This counter resets when you
select the next boundary.
−
By selecting Add/Remove Zone button you can change the number of zones and
create wider zones spanning more than one lane.
−
The same two mechanisms allow you to perform the entire zone setup process
manually, by adding zones and moving their boundaries manually.
