X3 Compatible—Statistical Message
The X3 message format will always display all 8 zones even if not configured in the setup. The
file also provides a voltage reading and a diagnostic indicator in every message.

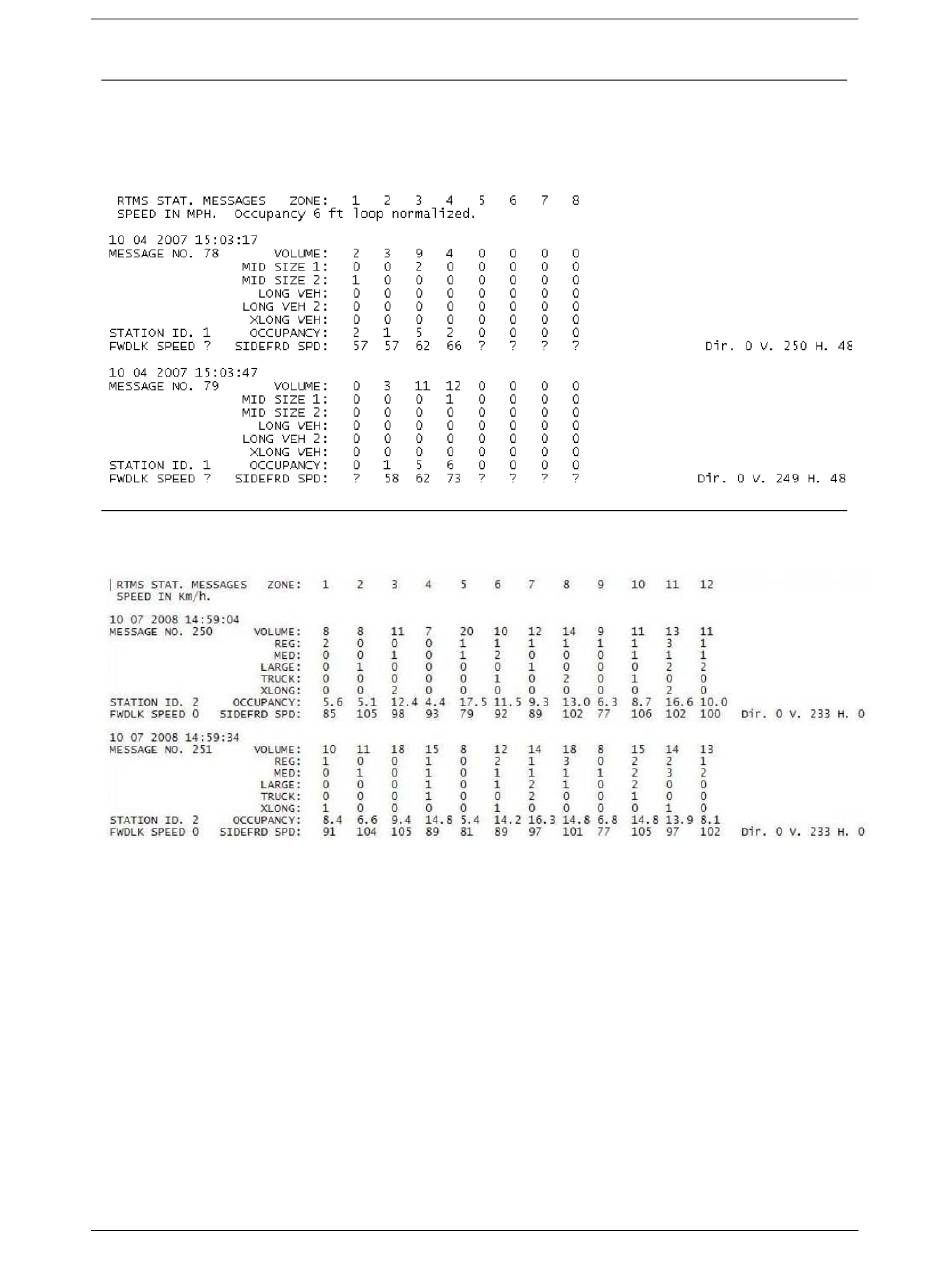

Figure 3.3 A sample X3 STAT file with 6 length classes reporting.

G4 Statistical Message

Figure 3.4 Sample G4 STAT file with all 12 lanes and 6 length classes reporting.
Please note:
•
G4 Statistics Message will have a variable length based on how many lanes are configured.
•
The designation of vehicle classes will also be the same as shown in the WinRTMS utility.
•
If Per Vehicle is ON, their data will be ahead of each message period statistics.
