G4 Software

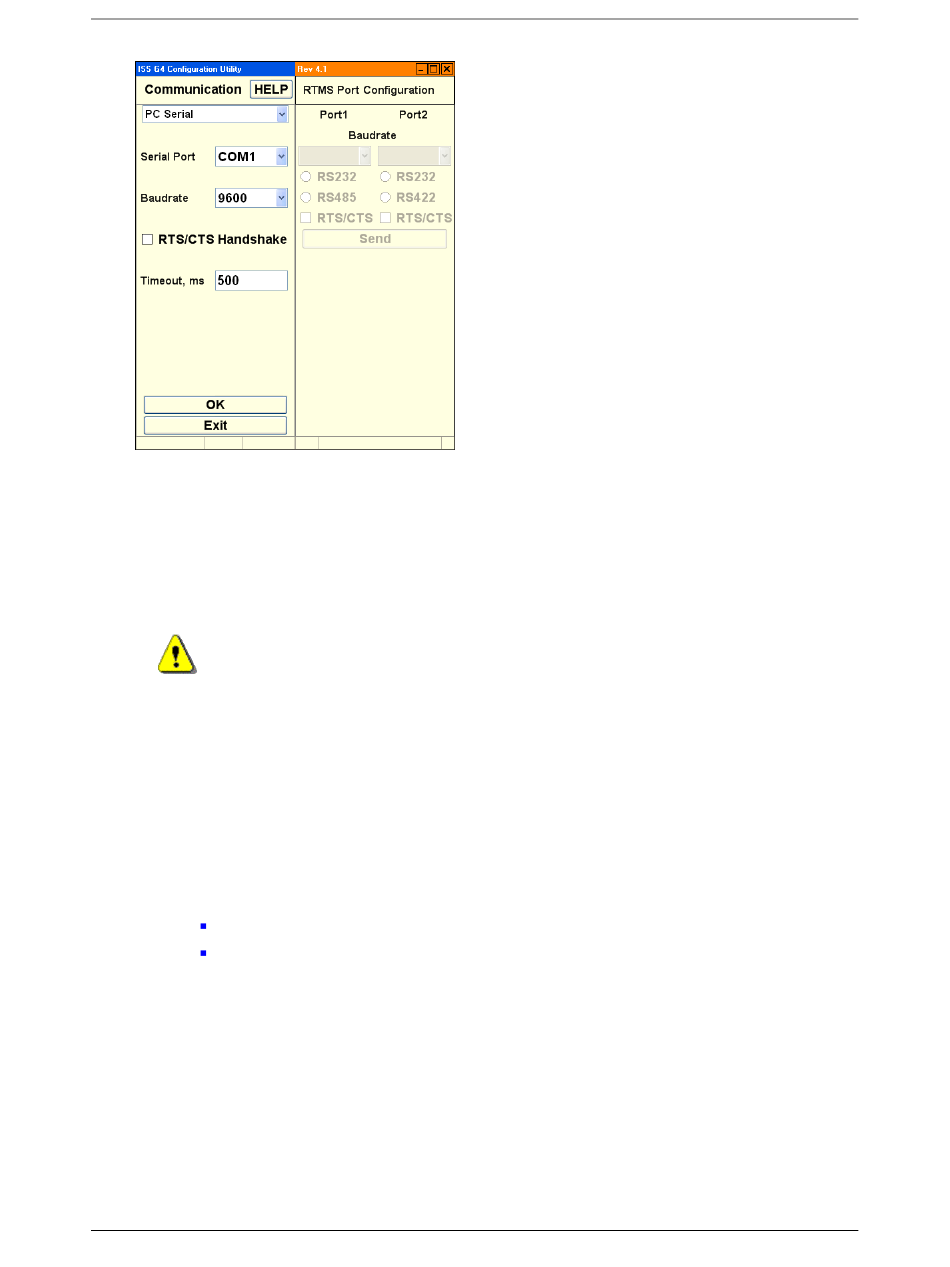

3. Use the advanced communication options on the left side of this screen to accomplish the
following:
−
Set the WinRTMS PC COM port and baud rate for communicating with the RTMS
when Serial is selected.
−
The TCP/IP selection allows you to set an IP address WinRTMS uses to communicate
via the Internet.
Warning
4. Use the advanced communication options on the right side of this screen to accomplish the
following:
−
Set RTMS Sensor communication parameters of both ports to the correct speed from
the drop menu.
−
Activate RTS/CTS handshake when necessary.
−
Alter communication speed (baud rate).
9600 bits per second (bps) is the factory default for serial units.
Data rates below 9600 are useful where high quality transmission lines are not
available. They are however, unsuitable for setup and must be selected after
setup has been completed. When using data rates below 9600 bps, the RTMS
data mode must be set to STAT to reduce the amount of data and prevent
communication problems. See DATA MODE for further details.
5. Click Send to change the RTMS and WinRTMS will change automatically.
6. Click OK to finish.
3-8
Activating RTS/CTS without wiring in place to the RTMS leads to
loss of communication.
© 2009 ISS Canada
Chapter 3
G4 User Manual
