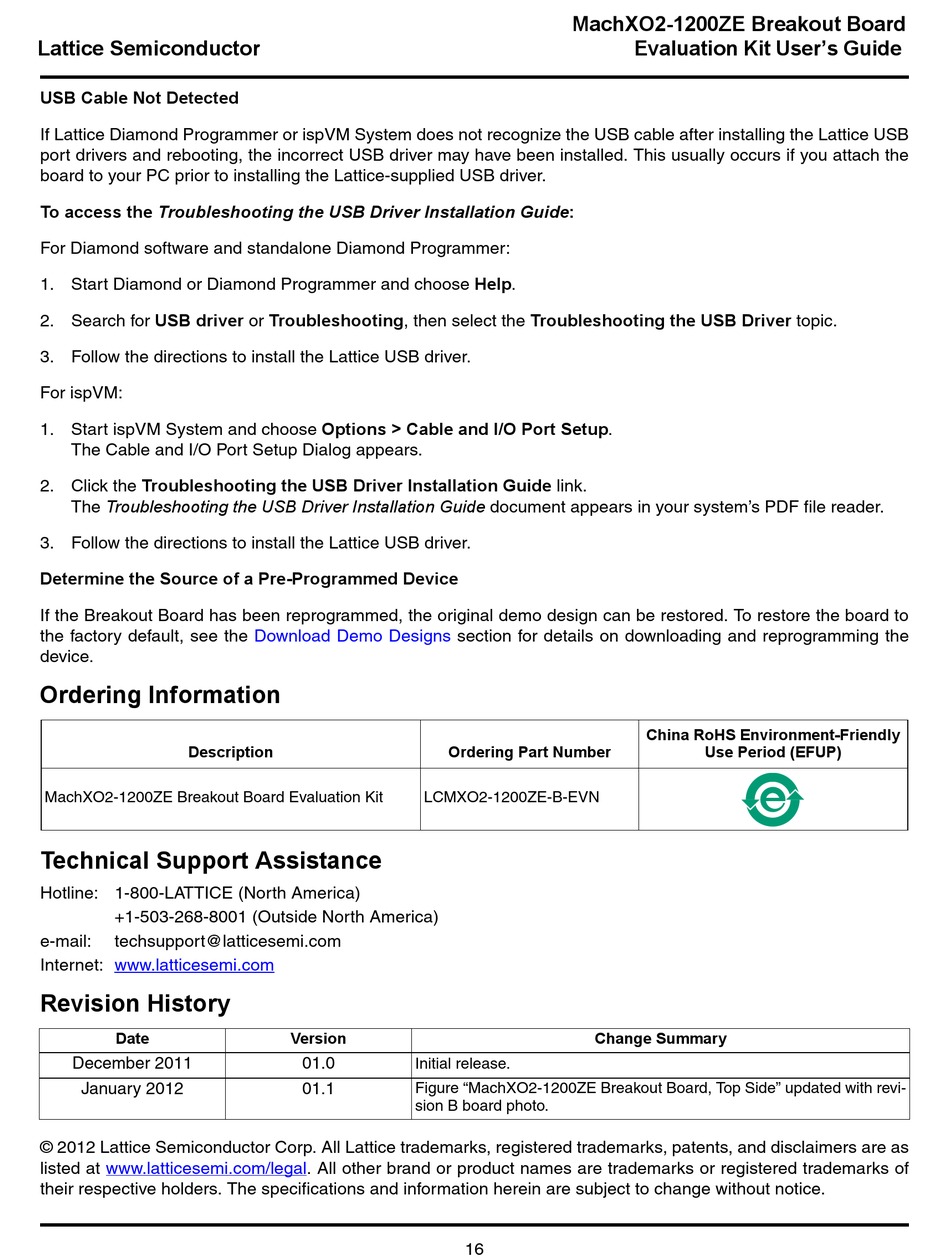

Lattice Semiconductor
USB Cable Not Detected
If Lattice Diamond Programmer or ispVM System does not recognize the USB cable after installing the Lattice USB
port drivers and rebooting, the incorrect USB driver may have been installed. This usually occurs if you attach the
board to your PC prior to installing the Lattice-supplied USB driver.
To access the Troubleshooting the USB Driver Installation Guide:
For Diamond software and standalone Diamond Programmer:
1. Start Diamond or Diamond Programmer and choose Help.
2. Search for USB driver or Troubleshooting, then select the Troubleshooting the USB Driver topic.
3. Follow the directions to install the Lattice USB driver.
For ispVM:
1. Start ispVM System and choose Options > Cable and I/O Port Setup.
The Cable and I/O Port Setup Dialog appears.
2. Click the Troubleshooting the USB Driver Installation Guide link.
The Troubleshooting the USB Driver Installation Guide document appears in your system's PDF file reader.
3. Follow the directions to install the Lattice USB driver.
Determine the Source of a Pre-Programmed Device
If the Breakout Board has been reprogrammed, the original demo design can be restored. To restore the board to
the factory default, see the
device.
Ordering Information
Description
MachXO2-1200ZE Breakout Board Evaluation Kit
Technical Support Assistance
Hotline: 1-800-LATTICE (North America)
+1-503-268-8001 (Outside North America)
e-mail:
techsupport@latticesemi.com
Internet:
www.latticesemi.com
Revision History
Date
December 2011
January 2012
© 2012 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as
listed at www.latticesemi.com/legal. All other brand or product names are trademarks or registered trademarks of
their respective holders. The specifications and information herein are subject to change without notice.
Download Demo Designs
LCMXO2-1200ZE-B-EVN
Version
01.0
Initial release.
01.1
Figure "MachXO2-1200ZE Breakout Board, Top Side" updated with revi-
sion B board photo.
MachXO2-1200ZE Breakout Board
section for details on downloading and reprogramming the
Ordering Part Number
Change Summary
16
Evaluation Kit User's Guide
China RoHS Environment-Friendly
Use Period (EFUP)
