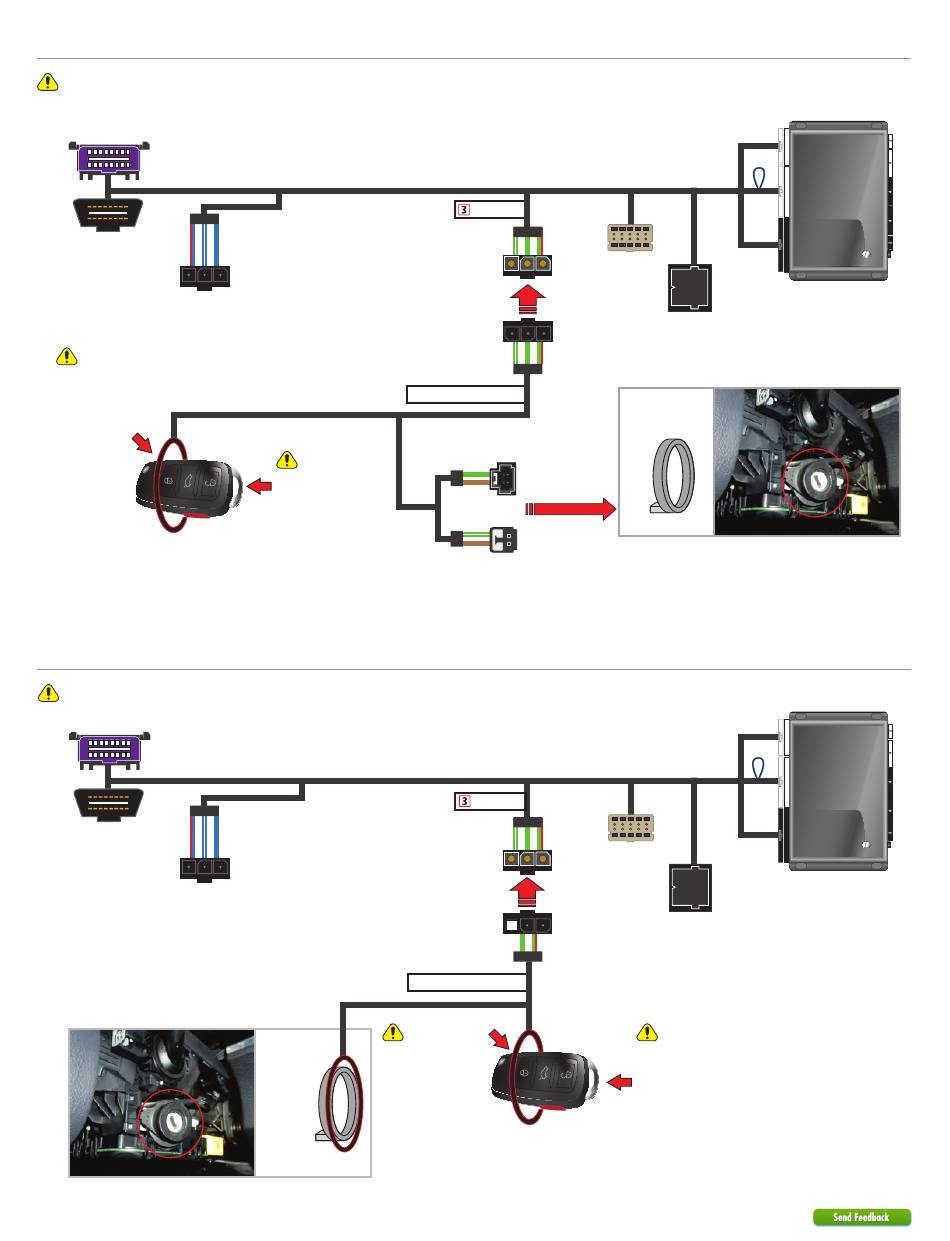

Key Wrap Option 1 with T-Harness (THVWN1)
Use the T-harness component labeled Key Wrap - Option 1 for Key type vehicles.
Wrap the loop around the OEM Immobilizer Remote and connect to the OEM Immobilizer Receiver Switch as shown below.
The loop must be
positioned
between the
Lock button and
the Flip Key
button.
loop
Test and secure the loop before
reassembling the vehicle.
Key Wrap Option 2 with T-Harness (THVWN1)
Use the T-harness component labeled Key Wrap - Option 2 for PTS and Key type vehicles.
Wrap the loops around the OEM Remote and the OEM Immobilizer Receiver as shown below.
11
933.VW10 2.00.195.3 2010 Volkswagen Jetta SportWagen
