ICP-D
Installation manual
ENABLING BRIGHT OUTCOMES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ICP-D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Barco ICP-D

Summary of Contents for Barco ICP-D

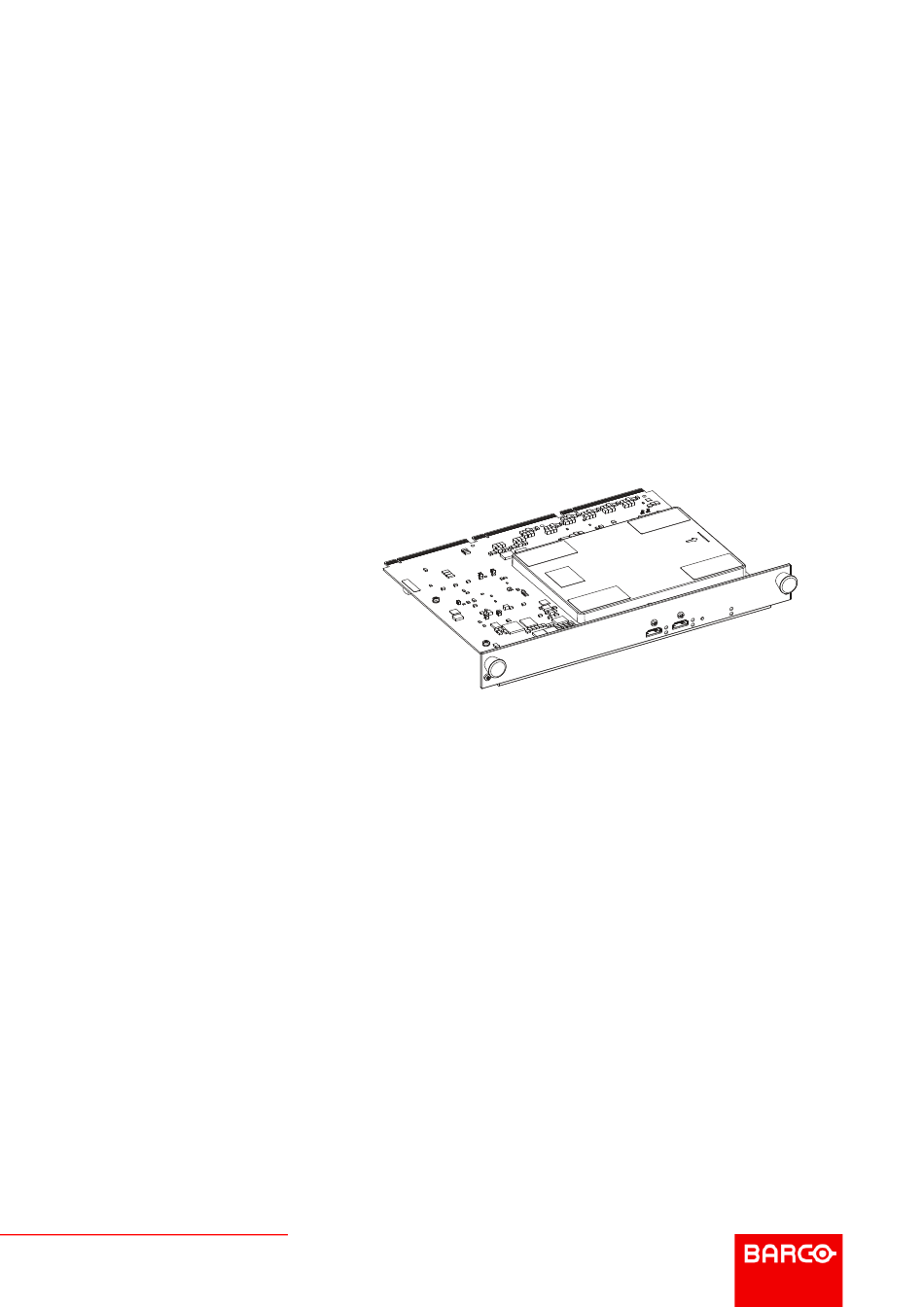

  • Page 1 ICP-D Installation manual ENABLING BRIGHT OUTCOMES...
  • Page 2 Barco NV Beneluxpark 21, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com Registered office: Barco NV President Kennedypark 35, 8500 Kortrijk, Belgium www.barco.com/en/support www.barco.com...
  • Page 3 Barco. If the purchaser or a third party carries out modifications or repairs on goods delivered by Barco, or if the goods are handled incorrectly, in particular if the systems are operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid.
  • Page 4 GNU-GPL code If you would like a copy of the GPL source code contained in this product shipped to you on CD, please contact Barco. The cost of preparing and mailing a CD will be charged. Federal Communications Commission (FCC Statement) This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 5: Table Of Contents

    Process overview of ICP-D installation..........................21 Installing the ICP-D..................................22 Removing the ICP-D ..................................23 Obtaining the Barco ICP-D certificate ..........................24 Authorization to clear a security warning on series 2 projector................25 Authorization to clear a security warning on the projector ..................27 Add new license....................................29 Activate legacy protocol ................................31...
  • Page 6 R5912083 /01 ICP-D...

  • Page 7: General

    ICP-D, such as safety related issues, initial inspection, minimum version of projector software, etc. This document can be used as a guideline to install or replace an ICP-D installed in the field. The latest version of this document can be downloaded from the Barco website www.barco.com...

  • Page 8: Safety

    (not applicable for DP2K S series). • Be careful never to drop anything into the ICP-D assembly during the procedure. The fall of a tool or a spare part in the ICP-D or in the projector could have catastrophic consequences when you will restart the system.
  • Page 9 • To avoid any risk of injury, the SERVICE PERSONNEL that do the installation or maintenance of the ICP-D must respect the same rules as for the projector. Follow the safety instructions listed in the projector manuals.

  • Page 10: Installation Requirements

    This means a new license is required in case you change projector or IMB brand. On Series 2 projectors, no license is needed in order to use ICP-D together with an third party IMB. Supported IMBs from ICP-D software version 1.2.0.5 (included in the Series 4 software 1.4.0) onwards: •...

  • Page 11: Initial Inspection

    Unpacking At delivery the ICP-D is packed in a cardboard box. Place the cardboard box on a stable (solid), flat and insulated support during all the unpacking. Open the box from the top. Remove the ICP-D that is packaged in an antistatic bag.
  • Page 12 If there is no battery present or the battery was temporally removed the certificates stored on the ICP-D are deleted. As a result the ICP-D goes into a non recoverable error state and makes the ICP-D out of order. If this is the case, the ICP-D must be sent back to factory to install new certificates.

  • Page 13: Icp-D Functionality

    ICP-D functionality ICP-D introduction ........................14 Input & communication........................15 ICP-D device certificate.........................17 About this chapter This chapter describes the ICP-D in general, the status LEDs and the input ports. R5912083 /01 ICP-D...

  • Page 14: Icp-D Introduction

    (DMDs). ICP-D location in the card cage may vary depending on the projector model. To know which slot in the card cage has to be used see chapter dedicated to “Input & communication” in the projector manual.

  • Page 15: Input & Communication

    HDMI 2.0 connector to connect a video source. HDMI B HDMI 2.0 connector to connect a video source. ICP-D status LEDs and Reset button LEDs on ICP-D front panel give information on the status of the device. Image 2–2 Reset button This button allows to reboot ICP-D.
  • Page 16 ICP-D functionality PWR/ERROR READY ICP-D Status Green Blinking Orange Update ongoing Orange Orange Update done R5912083 /01 ICP-D...

  • Page 17: Icp-D Device Certificate

    Purpose of the Barco ICP-D device certificate The device certificate (*. pem) of the Barco ICP-D is a digital certificate signed by Barco which is used in certificate chain in order to verify if the device is authorized. For example, the device certificate could be used to obtain licenses or even is exchanged during marriage procedure with external device (e.g.
  • Page 18 ICP-D functionality R5912083 /01 ICP-D...

  • Page 19: Icp-D Installation

    3.10 Checking software version on series 2 projector................32 3.11 Checking software version ......................33 3.12 Series 2 projector software update ....................34 3.13 Software update ...........................35 About this chapter This chapter describes how to replace an installed ICP-D in the field. R5912083 /01 ICP-D...

  • Page 20: Process Overview Of Icp-D Replacement

    If an IMB board is installed just below ICP-D in the Card Cage, unplug all connections from this device then remove it from the Card Cage of the projector. For mechanical reasons the ICP-D board cannot be removed from the projector when the 3rd party IMB board is still inserted.

  • Page 21: Process Overview Of Icp-D Installation

    Note: When replacing ICP by ICP-D you have to remove the metal plate located in between the ICP and the IMB. This plate is no longer useful and should not be installed with an ICP-D. Use information (QR code and/or serial number) on CertID label located on the top of the security module of the ICP-D to obtain device certificate.

  • Page 22: Installing The Icp-D

    ICP-D board cannot be manipulated (removal/installation) when the 3rd party IMB board (or some metal partition plate) is still inserted. Push (apply a little pressure) on both handles until the ICP-D is fully inserted and the connection is made with the back plane.

  • Page 23: Removing The Icp-D

    ICP-D. Flat screwdriver may be needed for this action. For detailed instructions see User & Installation manual of the projector. Release the two retaining screws at the front of the ICP-D (reference 1). Use a PH2 Phillips screwdriver. Caution: Ensure that the slot located under the ICP-D is empty during this procedure.

  • Page 24: Obtaining The Barco Icp-D Certificate

    Using the CertID label to download the ICP-D device certificate Scan the QR code (reference 1) on the top of the security module of the ICP-D with a smartphone. It's recommended to use a smartphone with auto-focus. The QR code reader will automatically redirect to the ICP-D certificate download page on the web server.

  • Page 25: Authorization To Clear A Security Warning On Series 2 Projector

    ICP-D installation 3.6 Authorization to clear a security warning on series 2 projector When is an authorization required to clear the security warning? If a module has been removed or if the sealed compartment has been opened, an authorization will be required to clear the security warning.
  • Page 26 ICP-D installation • In case of an incorrect code entry, the color of the backlight of the Numeric keys changes to red for 1 second and then back to blue. • In case of a correct code entry, the color of the backlight of the Numeric keys 1 to 6 changes to green for 1 second and then back to blue.

  • Page 27: Authorization To Clear A Security Warning On The Projector

    ICP-D installation 3.7 Authorization to clear a security warning on the projector When is an authorization required to clear the security warning? A media player security warning is triggered in the following cases: • If a board is removed from or inserted into the card cage.
  • Page 28 ICP-D installation Image 3–7 Location of the key button Each attempt to clear the security warning and its result (both successfully and unsuccessfully) is logged inside the projector. R5912083 /01 ICP-D...

  • Page 29: Add New License

    ICP-D installation 3.8 Add new license How to add license on series 2 projector Make sure the projector is powered on and is in READY mode. Start Communicator and make a connection with the projector. For more information, consult the Communicator user guide.
  • Page 30 ICP-D installation Browse to the Web Communicator application and log in as administrator. Click on tab Configuration and select License. While in Configuration > License > Manage licenses, click on the top right on the + (reference 1) to add a new license.

  • Page 31: Activate Legacy Protocol

    ICP-D installation 3.9 Activate legacy protocol Required tools Web Communicator When is it necessary to activate Legacy protocol? Legacy protocol must be activated when a third party equipment need to send API over Ethernet commands to the SP4K projector using the legacy protocol as used on Series 2 projectors. A third party equipment could be a TMS, an automation device, an IMB/IMS installed in the projector or any other equipment which need to operate the SP4K projector.

  • Page 32: Checking Software Version On Series 2 Projector

    Use Communicator (Diagnostics > Version info) to double check if current versions meet the software requirements. See minimum software requirements section in this manual and do not hesitate to consult Barco’s web site (http://www.barco.com) to verify if a newer version is available. Image 3–11 Version info...

  • Page 33: Checking Software Version

    ICP-D installation 3.11 Checking software version It is always recommended to update the projector with the latest available software version. What need to be checked Use Web Communicator (Diagnostics > Monitoring > Notifications) to double check if a warning message related to version issue is present in the list of notifications.

  • Page 34: Series 2 Projector Software Update

    Barco customer service. Download and install the latest version of Communicator. The program can be downloaded for free from Barco's website, (URL: http://www.barco.com). Click on myBarco and login to get access to secured information. Registration is necessary. If you are not yet registered, click on New to myBarco and follow the instructions. With the created login and password, it is possible to login where you can download the software.

  • Page 35: Software Update

    3.13 Software update How to update the software Download the latest firmware from the Barco website. Click on myBarco and login to get access to secured information. Registration is necessary. If you are not yet registered, click on New to myBarco and follow the instructions. With the created login and password, it is possible to login where you can download the software.
  • Page 36 ICP-D installation Browse to the Web Communicator application and log in as administrator. Click on tab Maintenance and select Software update. Plug a USB device with the downloaded file into the USB port of the Cinema Controller. Note: The USB device should be formatted in FAT-32. It may only contain the firmware file in the root level of the device.
  • Page 37 ICP-D installation Image 3–19 Example of the components update page. 5. Once every component has been updated, you will be redirected to the Web Communicator login page. R5912083 /01 ICP-D...
  • Page 38 ICP-D installation R5912083 /01 ICP-D...

  • Page 39: A Technical Specifications

    Technical specifications ICP-D HDMI 2.0 specifications.......................40 R5912083 /01 ICP-D...

  • Page 40: Icp-D Hdmi 2.0 Specifications

    HDMI certified to guarantee to work compliant with the HDMI protocol. You can request the HDMI certificate to the manufacturer of the cable. The ICP-D is not supporting Ethernet-over-HDMI and such specific cables are thus not required. R5912083 /01 ICP-D...
  • Page 41 Frame packing (BluRay 3D) • Top and Bottom • Side by Side • Side by Side Half Color coding Bit depth Format Frame Rate 1920x1080 23.976 2048x1080 YCbCr 4:4:4 YCbCr 4:2:2 29.97 1920x1080 2048x1080 59.94 YCbCr 4:4:4 YCbCr 4:2:2 R5912083 /01 ICP-D...
  • Page 42 Frame Rate 1920x1080 2048x1080 YCbCr 4:4:4 YCbCr 4:2:2 1920x1080 2048x1080 YCbCr 4:4:4 YCbCr 4:2:2 3840x2160 4096x2160 YCbCr 4:4:4 YCbCr 4:2:2 Both HDMI2 inputs (port A & port B) should have to same Format, Frame Rate and Color coding. R5912083 /01 ICP-D...
  • Page 43 Technical specifications In Passive 3D HDMI2 input port A should contain the pixel data of Left Eye and HDMI2 input port B should contain the pixel data for Right Eye. R5912083 /01 ICP-D...
  • Page 44 Technical specifications R5912083 /01 ICP-D...

  • Page 45: B Environmental Information

    Environmental information Disposal information ........................46 RoHS compliance.........................47 Production address........................49 R5912083 /01 ICP-D...

  • Page 46: Disposal Information

    For more information about recycling of this product, please contact your local city office or your municipal waste disposal service. For details, please visit the Barco website at: http://www.barco.com/AboutBarco/weee Disposal of batteries in the product This product contains batteries covered by the Directive 2006/66/EC which must be collected and disposed of separately from municipal waste.

  • Page 47: Rohs Compliance

    Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
  • Page 48 Environmental information [Republic of Turkey: In conformity with the WEEE Regulation] R5912083 /01 ICP-D...

  • Page 49: Production Address

    Environmental information B.3 Production address Factory Barco NV (BELGIUM) President Kennedypark 35, B-8500 Kortrijk R5912083 /01 ICP-D...
  • Page 50 Environmental information R5912083 /01 ICP-D...

  • Page 51: Glossary

    HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. R5912083 /01 ICP-D...
