Barco ImagePRO-3G Specifications

Now with 3G SDI
Convert any video format to any
other video format:
4:3 to 16:9 NTSC to HDSDI
NTSC to PAL HDSDI to PAL
HDSDI to SDI PAL to SDI
UXGA to NTSC SDI to VGA
HDSDI to NTSC NTSC to VGA
DVI to 3G SDI 3G SDI to DVI
Applications
• Downconverter
• Upconverter
• Seamless switcher
• Frame synchronizer
• SDTV to HDTV Scaler
• Multi-format synchronizer
• Signal processor
• LED wall processing
• 24 frame per second playback
• Tiled display
• Transcoder
• Scaler
• NTSC/PAL decoder
• NTSC/PAL encoder
• Logo frame grab
Advanced multi-format processor
Same funcitionality, now with 3G SDI

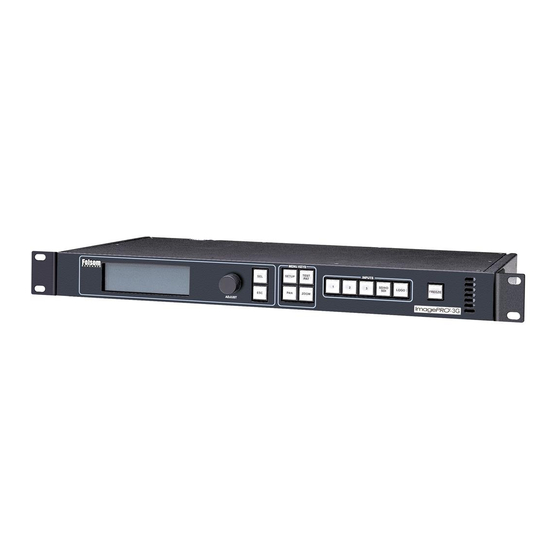

The ImagePRO™ is a powerful, all-in-one signal processor that accepts a wide range
of video input signals and processes them into a number of different signal formats to
meet the video requirements of virtually any application.
Incorporating Athena™, Barco's custom-designed image processing technology, the
ImagePRO is a high performance video scaler, scan converter, switcher and transcoder
in one. The ImagePRO is the ideal solution for converting RGB, HDTV, Component,
S-video, composite (NTSC, PAL and SECAM), DVI, SDI and 3G HD/SDI into a user
selectable video format. ImagePRO supports a wide variety of analog and digital
output formats including broadcast and VESA standards along with many native plasma
formats. ImagePRO users may also create custom output formats to support unique
display requirements.
The ImagePRO-3G includes universal inputs, aspect ratio conversion, memory presets,
test patterns, vertical lock (Genlock), picture adjustments, motion adaptive de-
interlacing, and 3:2 and 2:2 pulldown detection to name a few.
ImagePRO-3G
