2.
Lift arm fulcrum

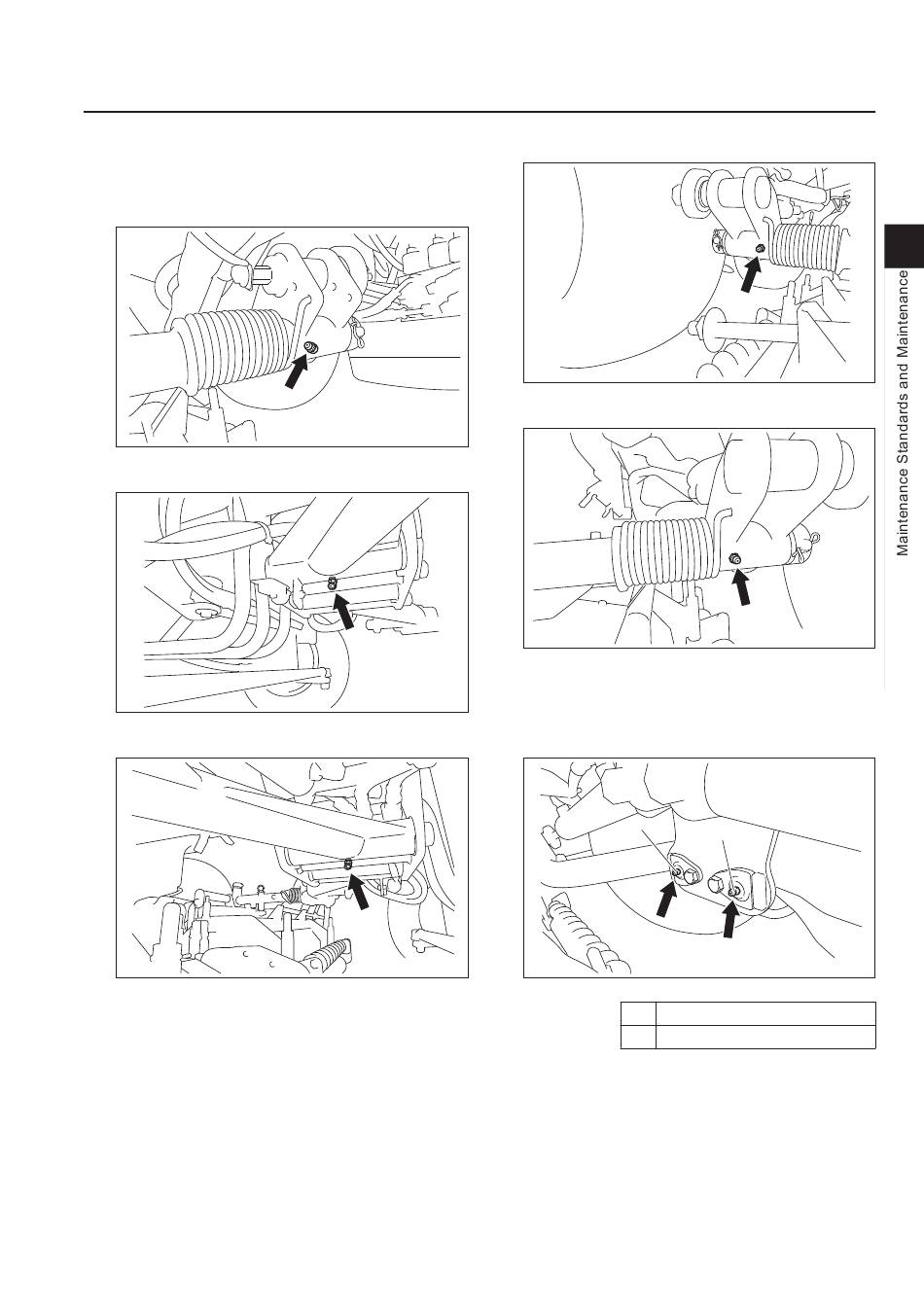

There is one greasing point on each lift arm
fulcrum connected to the mower unit.
Mower unit #1
Greasing Points_007
Mower unit #2
Greasing Points_008
Mower unit #3
Greasing Points_009
Greasing
Maintenance Standards and Maintenance
8bq62b-364
8bq62b-365
8bq62b-366
Mower unit #4
Greasing Points_010
Mower unit #5
Greasing Points_011
3.
Lift arm fulcrum shaft
There is one greasing point on each lift arm
fulcrum shaft connected to the mower unit.
Mower units #1 and #4
4
Greasing Points_012
1
Mower unit #1
2
Mower unit #4
LM551
8bq62b-367
8bq62b-368
1
8bq62b-369
Page 3-21
