Baroness LM551 Service Manual page 137

On Delay Timer
(#2, #3 mower unit up/down switch timer)
The on delay timer is located under the right
side of the seat, and is connected to output an
up/down signal to the rear mower unit after
the up/down signal to the front mower unit.
This design makes the rear mower unit move
up/down with a 0.6 second delay after the up/
down signal for the front mower unit.

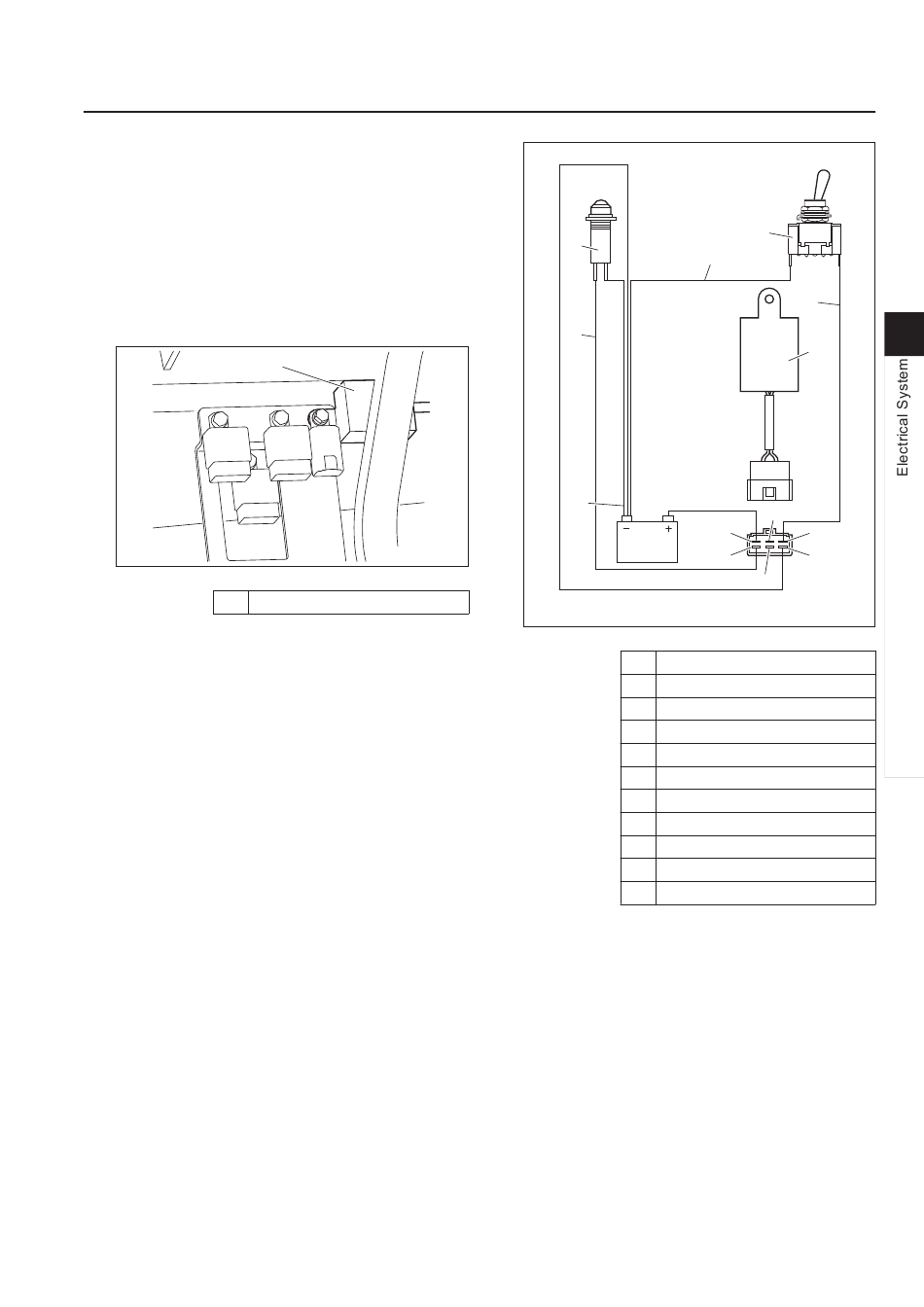

On Delay Timer_001
1 On delay timer
Inspection of Delay Timer
1. Remove the delay timer from the machine.
Note:
The test circuits for the off delay timer and
on delay timer are the same.
2. Follow the steps below to create a test
circuit.
[1] Connect coupler terminal 1 to the battery
(+).
[2] Connect lamp line 1 to coupler terminal
2.
[3] Connect switch line 1 to coupler terminal
3.
[4] Connect coupler terminal 4 to the battery
(-).
[5] Connect lamp line 2 to the battery (-).
[6] Connect switch line 2 to the battery (-).
3. Turn the switch to "ON."
If the lamp turns on 0.6 seconds after,
･
the on delay timer is normal.
If the lamp turns off 0.9 seconds after the
･
switch is turned "OFF," the delay timer is
normal.
About The Electrical Components
1
tmdyvy-006
Electrical System
C
8
5
7
1
2
Inspection of Delay Timer_001
1 Terminal 1
2 Terminal 2
3 Terminal 3
4 Terminal 4
5 Lamp line 1
6 Switch line 1
7 Lamp line 2
8 Switch line 2
A Switch
B Delay timer
C Lamp
