Baroness LM551 Service Manual page 159

LH52・LS62・LS66
5 3 4
6
1

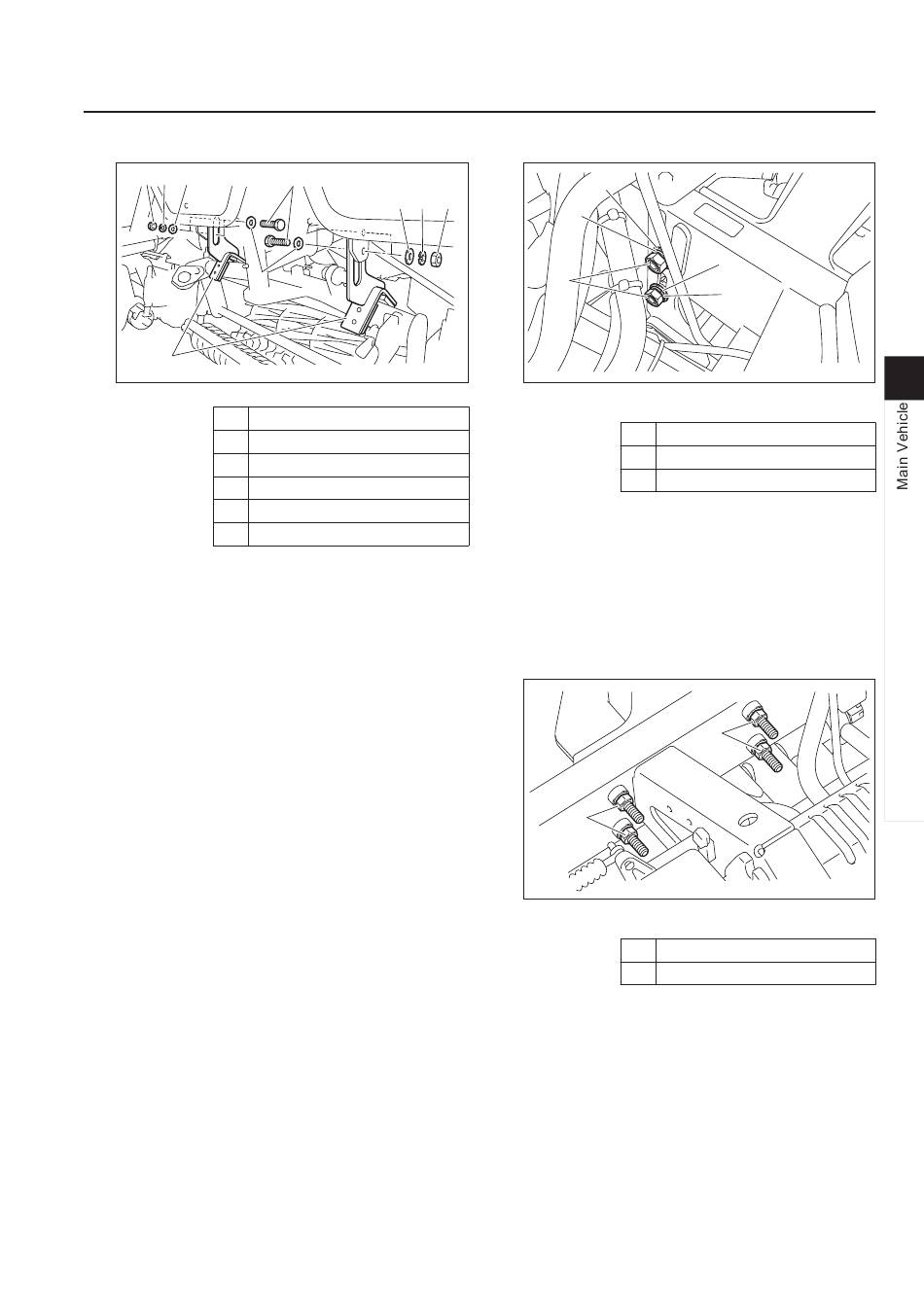

Adjustment of Mower Stoppers for Mower Unit #1_002
1 Mower stopper
2 Bolt
3 Spring washer
4 Washer
5 Nut
6 Washer
Adjustment of Mower Stoppers for Mower Unit #2
and #3
The mower stopper is installed to prevent the
mower unit from interfering with the frame.
The type and attaching direction of the mower
stopper for mower unit #2 and #3 differ
according to the type of mower unit.
And adjust the attaching position of the
mower stopper for mower unit #2 and #3
according to the attaching position (front or
rear) of the mower unit.
Install in the appropriate direction.
1. On a level surface, lower all mower units.
2. Depress the locking pedal while firmly
depressing the brake pedal to lock it.
3. Stop the engine.
4. Open the hood.
5. Open the underseat cover.
Adjustment
2
4 3 5
oxie9a-008
Main Vehicle
6. Remove the nuts of the mower stopper.
3
2
1
Adjustment of Mower Stoppers for Mower Unit #2 and
#3_001
1 Nut
2 Spring washer
3 Washer
7. Adjust the mower stopper position.
To set the mower unit in the front
･
position, attach the mower stopper in the
"front position".
To set the mower unit in the rear position,
･
attach the mower stopper in the "rear
position".
Mower unit #2
A
Adjustment of Mower Stoppers for Mower Unit #2 and
#3_002
A Mower stopper front position
B Mower stopper rear position
LM551
3
2
oxie9a-002
B
oxie9a-013
Page 6-15
