Usage

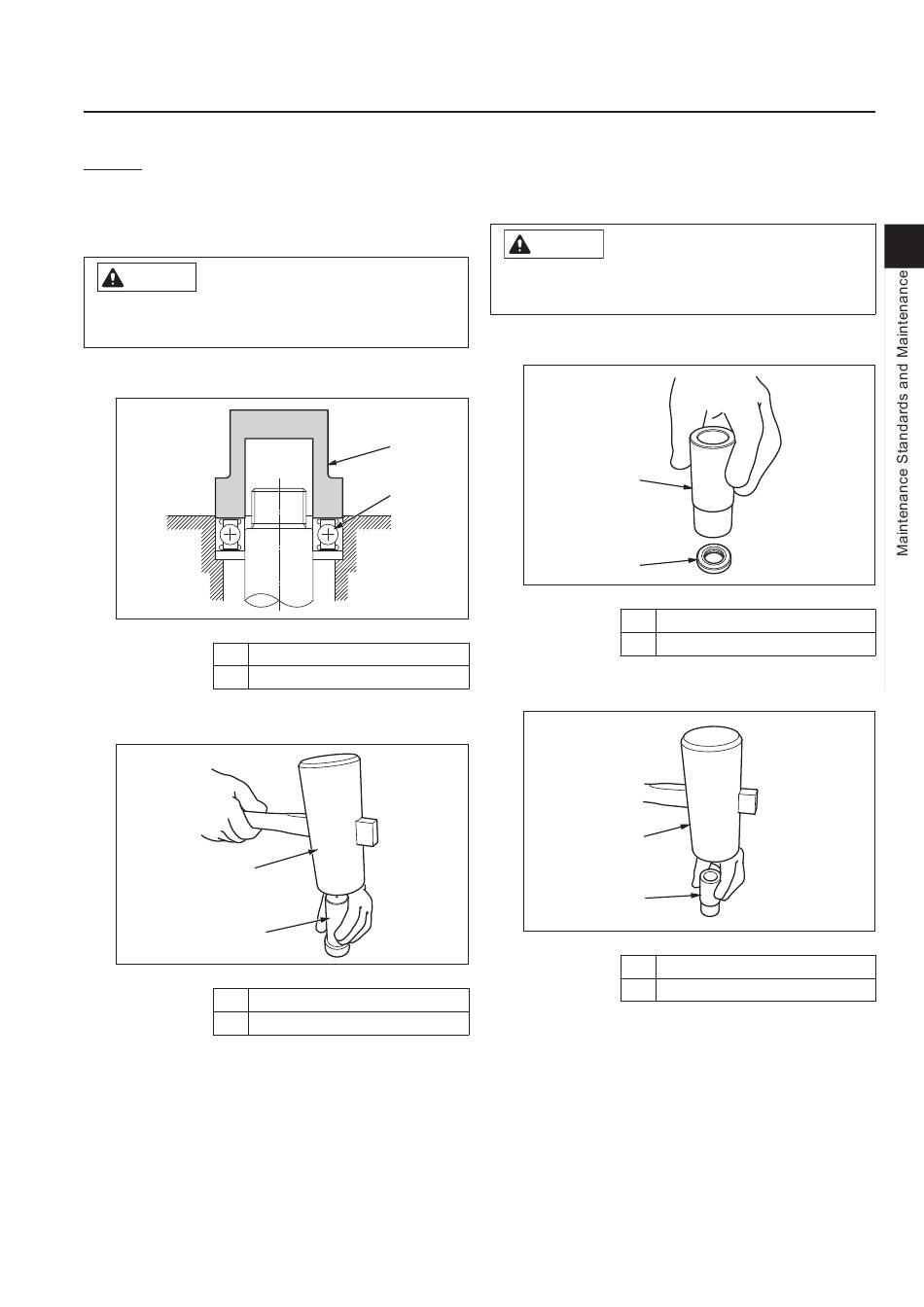

Bearing Driver
Use bearing drivers to drive in bearings etc.
accurately.
Caution
Be careful not to hit your hand with a hammer
etc.
1. Place the bearing driver so as to contact it
at right angle to the face of bearing.
Bearing Driver_001
1 Bearing Driver
2 Bearing
2. Hold the bearing driver securely with hand
and drive in with a hammer etc.
2
Bearing Driver_002
1 Bearing Driver
2 Hammer
Special Tool
Maintenance Standards and Maintenance
1
2
touux4-001
1
touux4-002
Oil Seal Installer
Use an oil seal installer to install the oil seal
etc. correctly.
Caution
Be careful not to hit your hand with a hammer
etc.
1. Position the oil seal installer so that it is
perpendicular to the surface of the oil seal.
1
2
Oil Seal Installer_001
1 Oil Seal Installer
2 Oil seal
2. Firmly hold the oil seal installer, and then hit
it with a hammer etc.
2
1
Oil Seal Installer_002
1 Oil Seal Installer
2 Hammer
