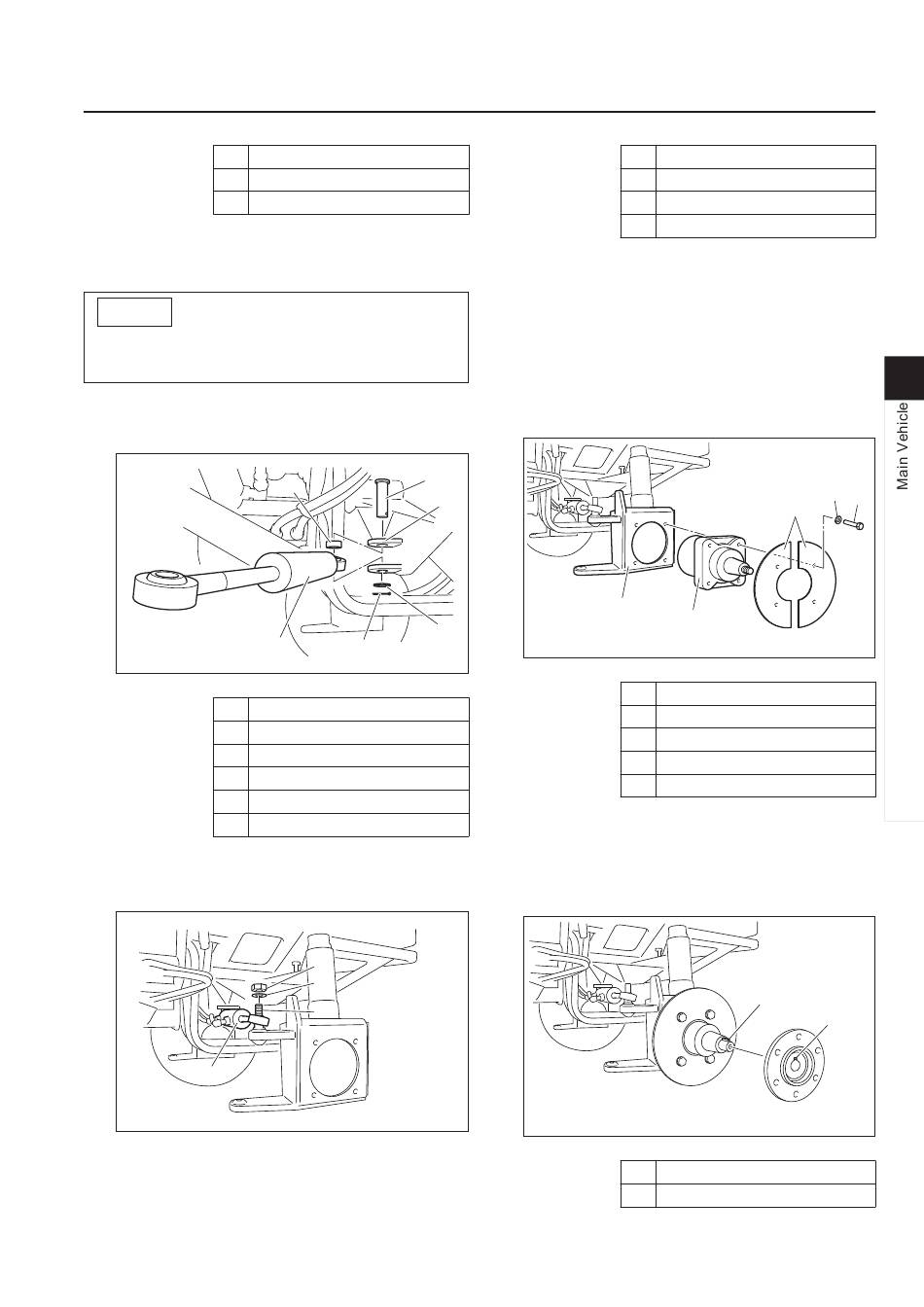

Baroness LM551 Service Manual page 171

1 Spring pin
2 Hammer
3 Jack
[8] Remove the jack.
3. Follow the steps below to install the
steering cylinder.
Important
The steering cylinder has a specific
installation direction.
[1] Insert the steering cylinder and collar
into the pivot cylinder mount, and install
the flat-head pin, washer, and cotter pin.
Installation of Kingpin_008
1 Cylinder mount
2 Cotter pin
3 Washer
4 Collar
5 Flat-head pin
6 Steering cylinder
[2] Install the steering cylinder to the
kingpin cylinder mounting shaft, and
install the disc spring washer and U nut.
1
Installation of Kingpin_009
Removal and Installation of Each Section
5
4
1
3
6
2
uf49yq-008
3
4
2
uf49yq-009
Main Vehicle
1 Steering cylinder
2 Cylinder mounting shaft
3 U nut
4 Disc spring washer
4. Install the tie rod.
Reference:
"Installation of Tie Rod" (Page 6-21)
5. Secure the wheel motor to the kingpin
using the bolt, spring washer, and rear
wheel grass guard.
Note:
Tightening torque: 104 - 134 N-m
(1,060.49 - 1,366.40 kgf-cm)
5
4
Installation of Kingpin_010
1 Bolt
2 Spring washer
3 Rear wheel grass guard
4 Wheel motor
5 Kingpin
6. Follow the steps below to install the wheel
mount.
[1] Align the key groove of the wheel mount
and the key of the wheel motor shaft,
and install.
Installation of Kingpin_011
1 Key groove
2 Key
LM551
2 1
3
uf49yq-010
2
1
uf49yq-011
Page 6-27
