Chapter 6 Client Layout and Operation Flow

6.1 Main Window Introduction

After logging into the client software, you can see the main window as shown below.
Note
● The specific interfaces of the client software may differ by its versions.
● The client software loads and runs previous projects after logging in. If there is no project, the
client software will create and run a new project.
No. Name
1 Menu Bar
Project Status
2
Display Area
Tool Status Display
3
Area
SC3000 Series Vision Sensor Quick Start Guide

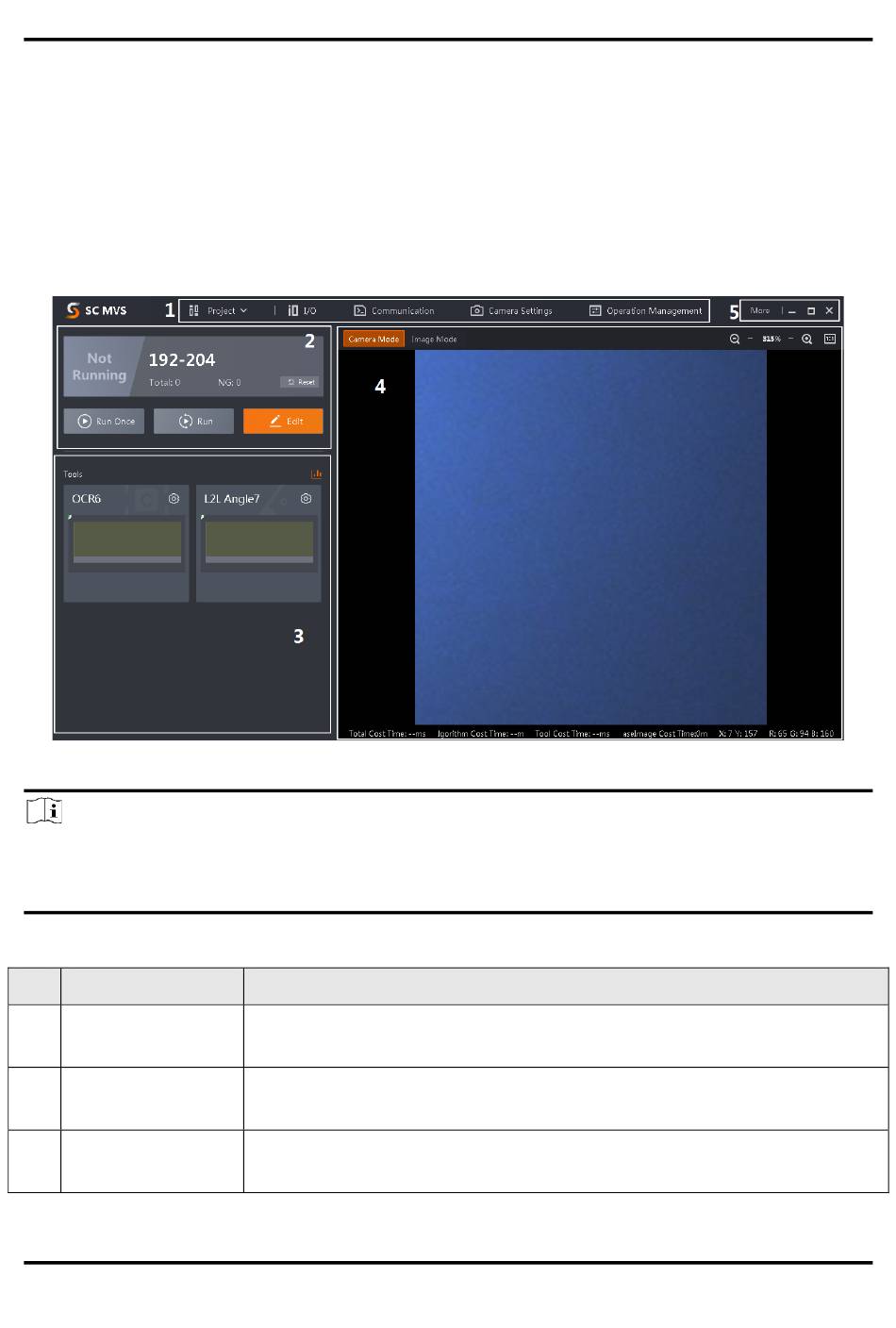

Figure 6-1 Main Window
Table 6-1 Main Window Description
The menu bar includes project, I/O settings, communication settings,
camera settings, and operation management.
This area displays operation results of current projects in real time. You
can run, stop or edit projects here.
This area displays operation results of vision tools loaded in projects in real
time. You can edit various parameters of tools here.
Description
