Parameter Name
Input Logic Level Low
Input Logic Level High
Input Falling Delay
Input Rising Delay
Note
● VCC is the device's input voltage.
● The breakdown voltage is 36 VDC, and keep voltage stable.

7.1.2 Output Signal

The device's Line 5/6/7 are output signals, and Line 2/3/4 are bi-directional I/O signals that can be
set as output. You can go to I/O settings of the client software to set I/O output type as PNP or NPN
according to actual demands, as shown below.
SC3000 Series Vision Sensor Quick Start Guide

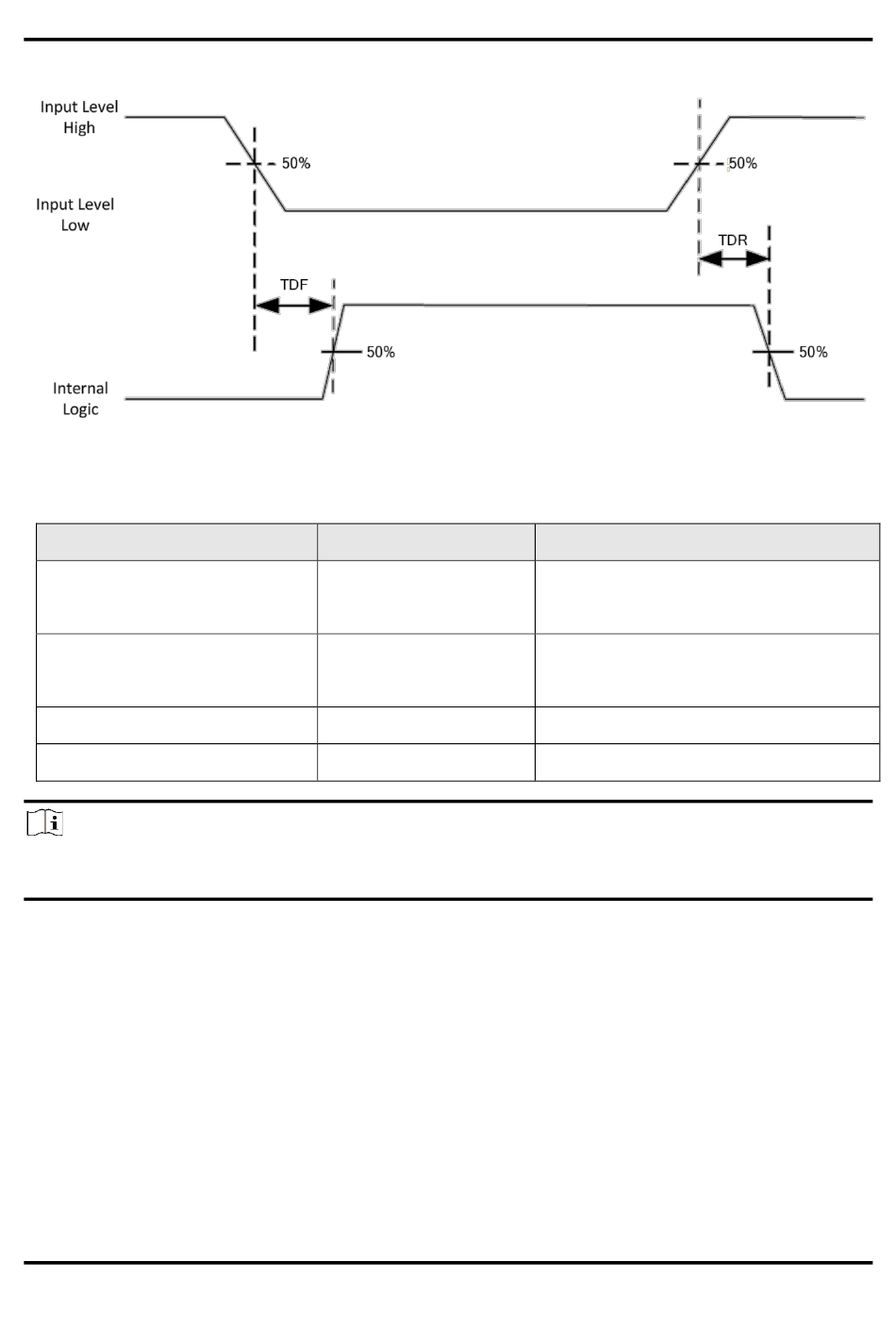

Figure 7-2 Input Logic Level
Table 7-1 Input Electrical Feature
Parameter Symbol
VL
VH
TDF
TDR
0 VDC to 9 VDC (VCC=24 VDC)
0 VDC to 5.4 VDC (VCC=12 VDC)
11 VDC to 24 VDC (VCC=24 VDC)
7.56 VDC to 12 VDC (VCC=12 VDC)
1.3 μs to 3.5 μs
1.3 μs to 3.5 μs
15
