How To Install Uhfssrx - Javad UHFSSRx User Manual

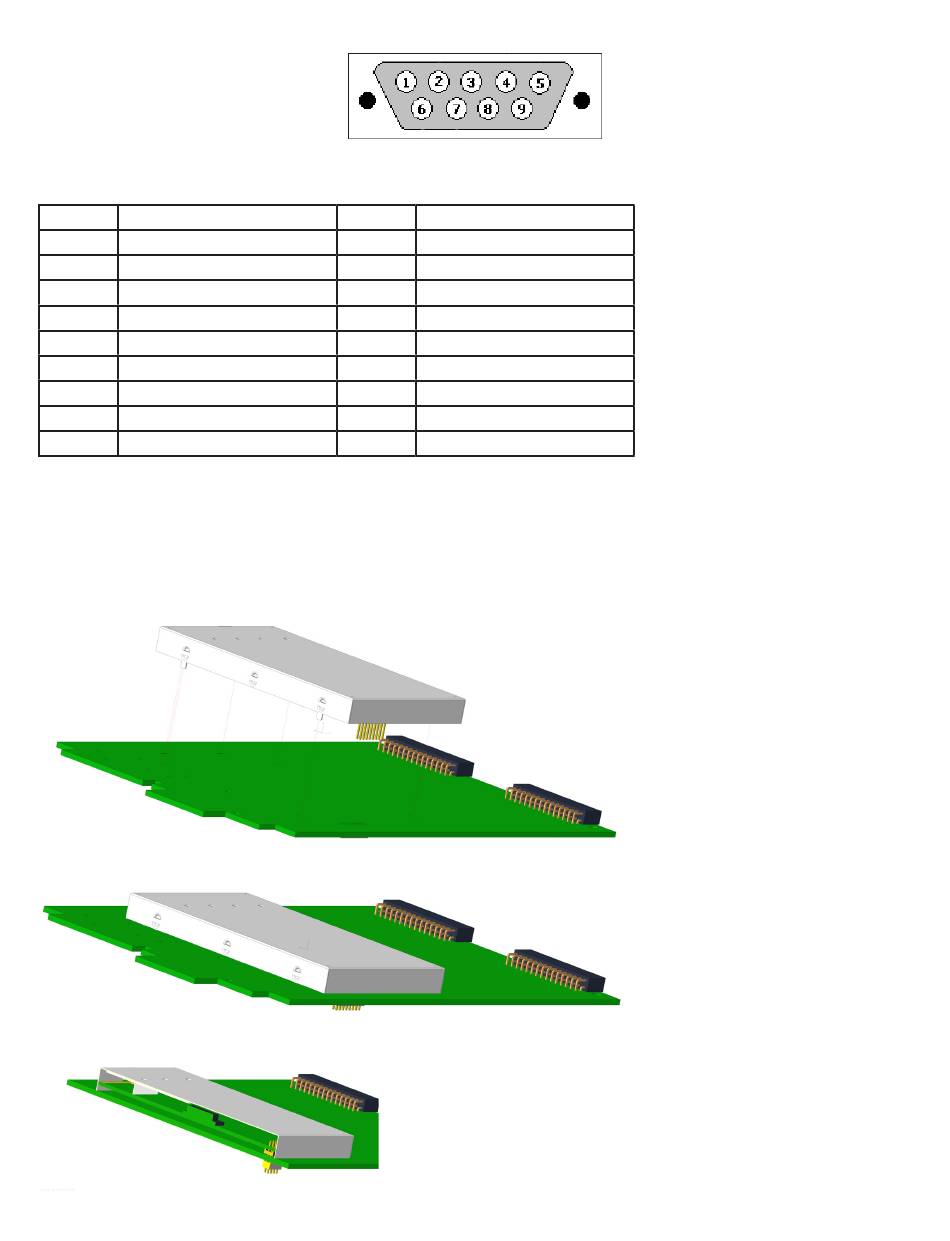

DB-9 Male Connector Specification
Pin Signal Name
1 -
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 -
Please, refer to particular external device Serial port specification to select and use right Serial cable for prop-
er connection.
12
DB-9 Male connector
Dir
- Not used
I Receive Data
O Transmit Data
O Data Terminal Ready
- Signal Ground
I Data Set Ready
O Request To Send
I Clear To Send
- Not used
HOW TO INSTALL UHFSSRX
Description
