S :
ENSORS
The means of the fields for "SENSOR INFO" are:
In the field "Software
of the DALI sensor is printed;
In the field "COMMAND" it is possible to select a DALI
command to send to the selected DALI sensor. For set
commands, it is possible to insert the value to set in
the field "xx". As soon as the command to send is
selected, the command is sent: in order to send the
same command more times, it is possible to press the
"SEND" button;
In the fields "SENSOR
the DALI sensor is printed;
In the field "SET NEW
program a new ID to the DALI sensor;
In the field "REMOVE
delete the ID from the DALI sensor.
In the "GROUP MEMBERSHIP" section it is possible to see the
Groups which the selected DALI sensor is in. The checked
checkboxes mean that the device is in the correspondent
groups, the unchecked checkboxes mean that the device is
not included in the correspondent groups.
It is possible to change the group settings for the selected
DALI sensor by checking/unchecking
checkboxes.
In the "SET INSTANCES" section it is possible to program the parameters for each instance available in the sensor. Each sensor's type has
specific parameters defined in DALI 2 specifications.
ADFweb.com Srl – IT31010 – Mareno – Treviso
version" the software version
STATUS" the actual status of
ADDRESS" it is possible to
ADDRESS" it is possible to
the correspondent
User Manual DALI / BACnet Master - Converter
Document code: MN67832_ENG

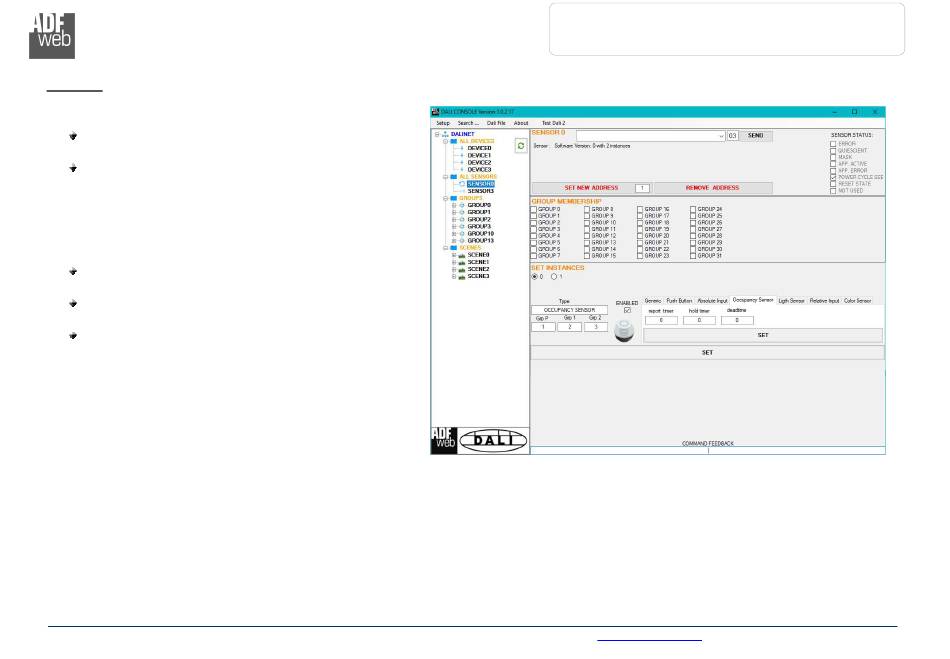

Figure 12: "Sensors settings" window
