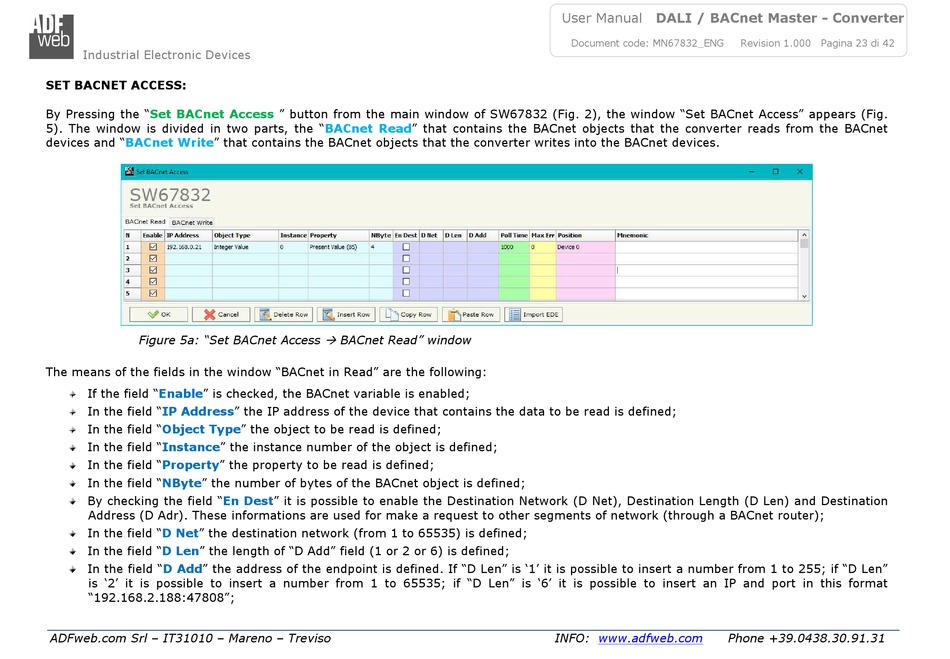

ADF Web HD67832-IP-B2 User Manual page 23

Industrial Electronic Devices
SET BACNET ACCESS:
By Pressing the "Set BACnet Access
5). The window is divided in two parts, the
devices and "BACnet Write" that contains the BACnet objects that the converter writes into the BACnet devices.
Figure 5a: "Set BACnet Access
The means of the fields in the window "BACnet in Read" are the following:
If the field "Enable" is checked, the BACnet variable is enabled;
In the field "IP Address" the IP address of the device that contains the data to be read is defined;
In the field "Object Type" the object to be read is defined;
In the field "Instance" the instance number of the object is defined;
In the field "Property" the property to be read is defined;
In the field "NByte" the number of bytes of the BACnet object is defined;
By checking the field "En
Address (D Adr). These informations are used for make a request to other segments of network (through a BACnet router);
In the field "D Net" the destination network (from 1 to 65535) is defined;
In the field "D Len" the length of "D Add" field (1 or 2 or 6) is defined;
In the field "D Add" the address of the endpoint is defined. If "D Len" is '1' it is possible to insert a number from 1 to 255; if "D Len"
is '2' it is possible to insert a number from 1 to 65535; if "D Len" is '6' it is possible to insert an IP and port in this format
"192.168.2.188:47808";
ADFweb.com Srl – IT31010 – Mareno – Treviso
" button from the main window of SW67832 (Fig. 2), the window "Set BACnet Access" appears (Fig.
"BACnet Read" that contains the BACnet objects that the converter reads from the BACnet
 BACnet Read" window
Dest" it is possible to enable the Destination Network (D Net), Destination Length (D Len) and Destination
User Manual DALI / BACnet Master - Converter
Document code: MN67832_ENG
INFO: www.adfweb.com Phone +39.0438.30.91.31
Revision 1.000 Pagina 23 di 42
