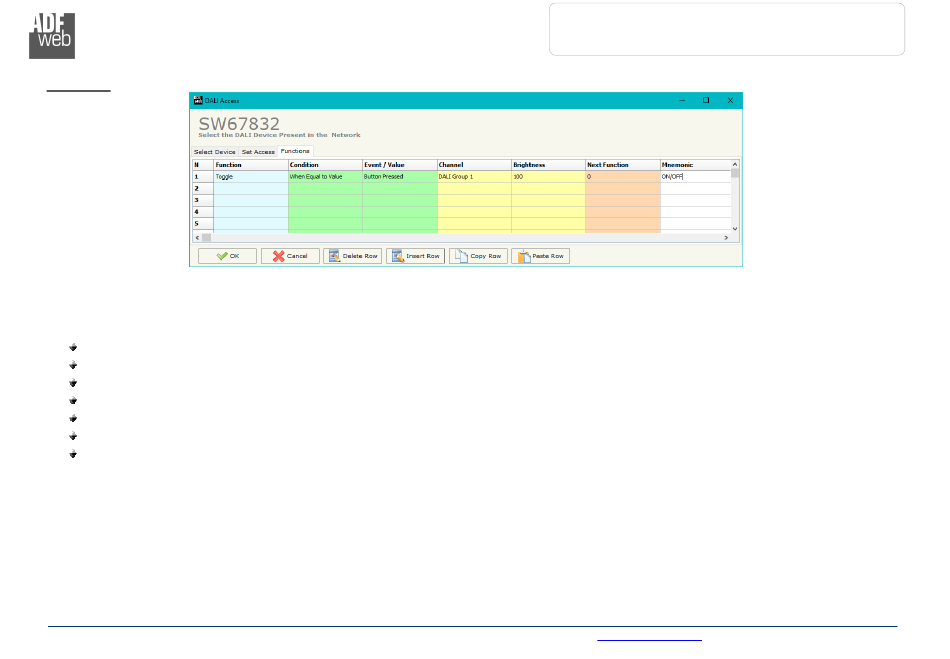

Figure 4c: "Functions" window
The "Functions" section (Fig. 4c) is used to list the DALI function to control the DALI ballasts in relation to the data from DALI 2 devices
(buttons, sensors, exc.) like a DALI router. The means of the fields are:
In the field "Function" the DALI operation to execute is defined;
In the field "Condition" the logic operation to apply on the data is defined;
In the field "Event / Value" the type of event received from the DALI 2 devices is defined;
In the field "Channel" the DALI ballast/group to control is defined;
In the field "Brightness" the light level to command is defined;
In the field "Next Function" it is possible to concatenate another function;
In the field "Mnemonic" a description of the row is defined.
