STRUCTURE OF THE SOFTWARE:

The software layout is very simple and it is structured in this
way:
"Menu bar" (Fig. 9, Point 1): it is possible to open the
setup window ("Setup" menu), scan the DALI network
and program automatically the IDs ("Search..." menu),
export/import the results of the communication ("Dali
File" menu), see the informations about the DALI
Console software ("About" menu) and test DALI 2
communication ("Test Dali 2" menu).
"Network view" (Fig. 9, Point 2): it is possible to see
all the DALI devices/sensors connected to the HD67832
converter, the groups and the scenes set;
"Settings / commands
possible to set and manage the parameters to the
single DALI device/sensor, to the groups or for the full
network.
ADFweb.com Srl – IT31010 – Mareno – Treviso
view" (Fig. 9, Point 3): it is
User Manual DALI / BACnet Master - Converter
Document code: MN67832_ENG

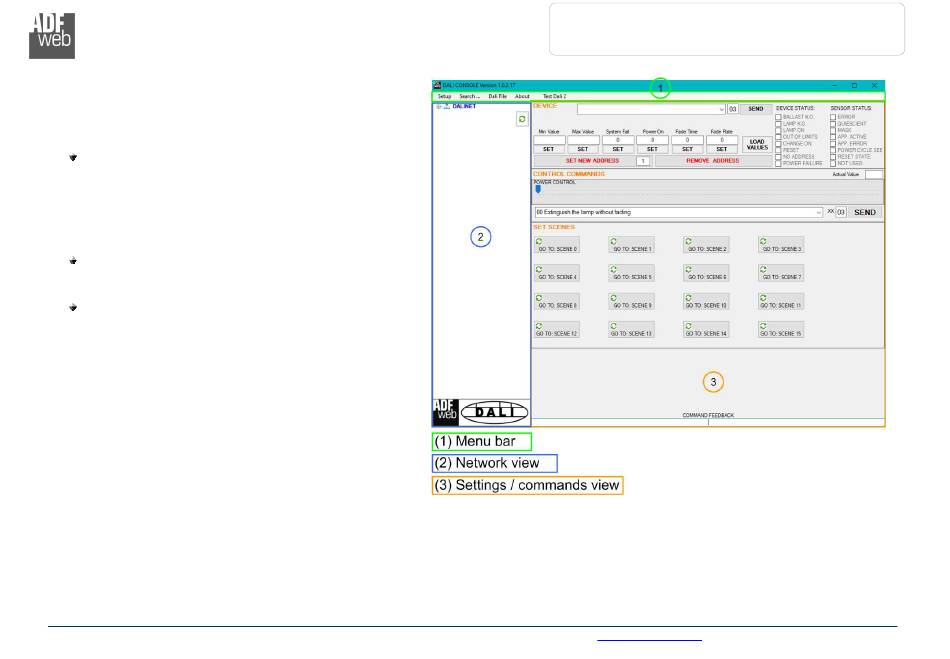

Figure 9: Structure of DALI Console software
