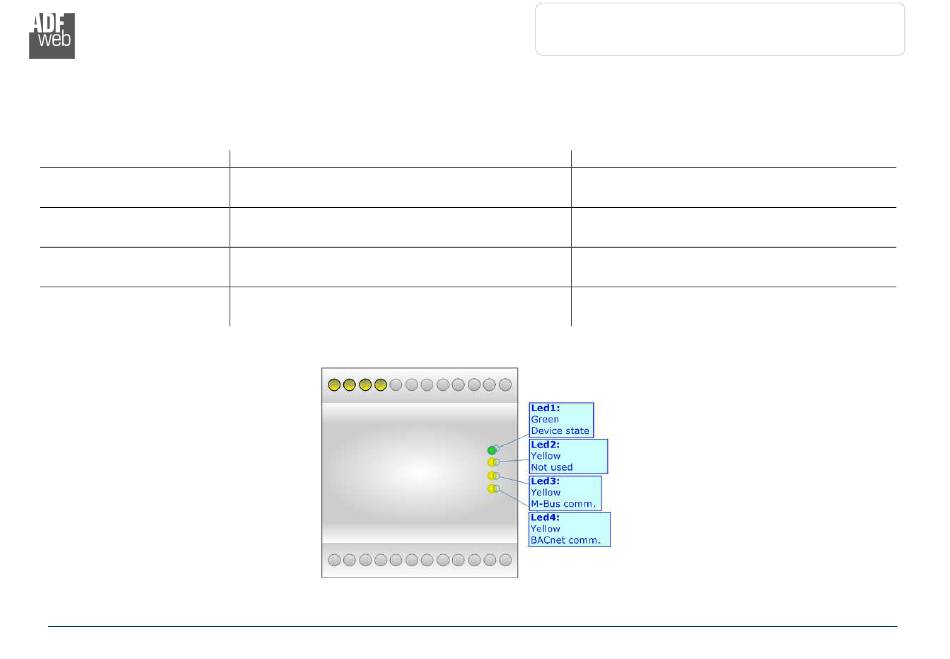

LEDS:
The device has got six LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: Not used (yellow)
3: M-Bus communication
(yellow)
4: BACnet communication
(yellow)
ADFweb.com S.r.l.
Normal Mode
Blinks slowly (~1Hz)
OFF
Blinks when correct M-Bus frame is received
Blinks when a BACnet request is received
User Manual M-Bus / BACnet/IP
Document code: MN67694_ENG Revision 1.000
Boot Mode
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update in progress
