User Manual M-Bus / BACnet/IP
Document code: MN67694_ENG
Revision 1.000
Page 11 of 25
Industrial Electronic Devices
ETHERNET:

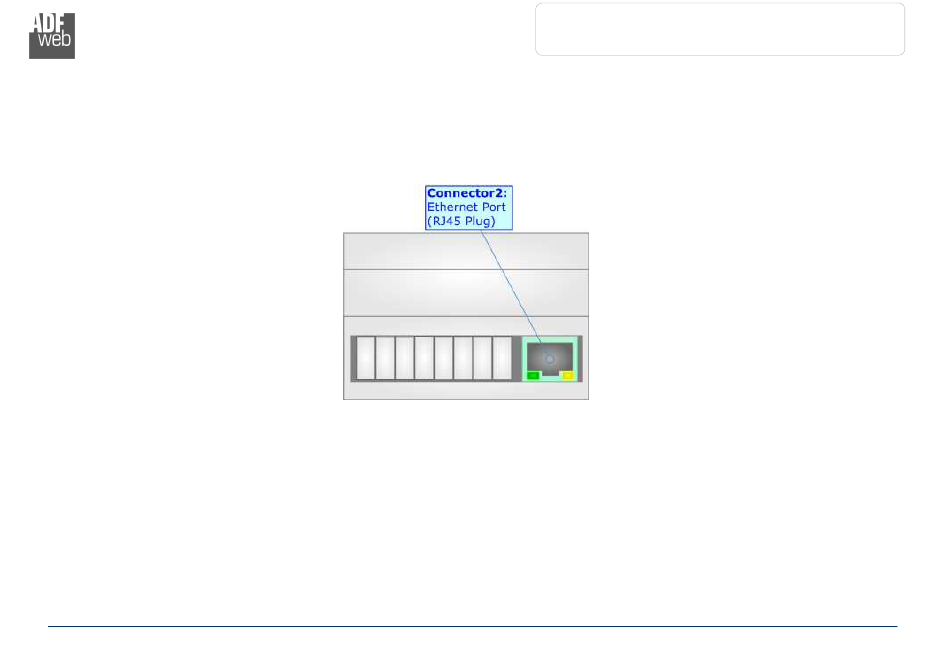

The Ethernet port is used for Modbus TCP communication and for programming the device.
The Ethernet connection must be made using Connector2 of HD67694-B2 with at least a Category 5E cable. The maximum length of the
cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the
device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the use of a
cross cable.
