SET BDT ACCESS
By pressing the "Set BDT Access" button from the main window for SW67694 (Fig. 2) the window "Broadcast Distribution Table Access"
appears (Fig. 5).
In this section, it is possible to route the broadcast messages to the specific IP Addresses.

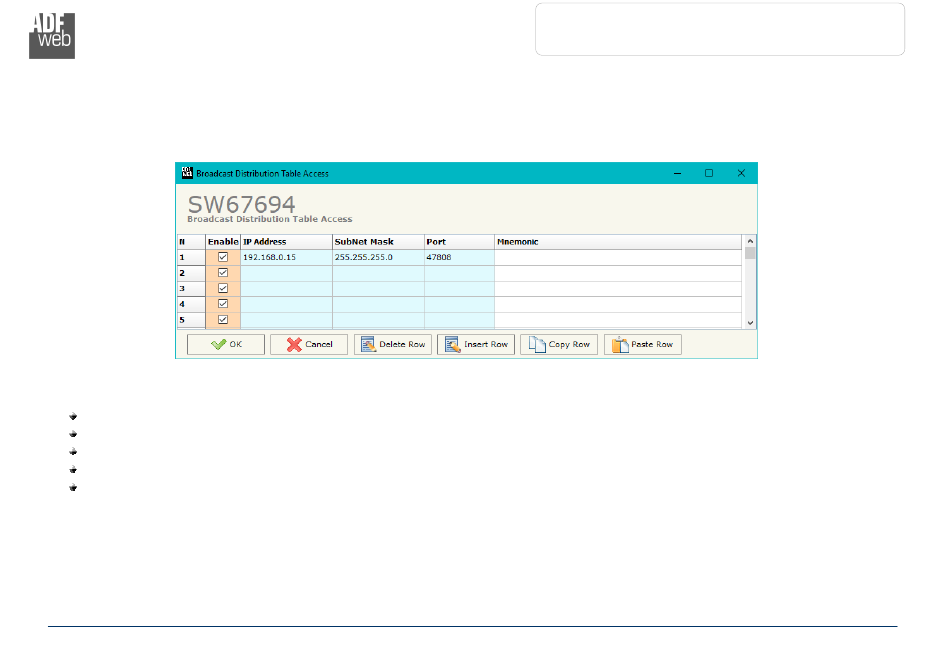

Figure 5: "Broadcast Distribution Table Access" window
The means of the fields are:
If the field "Enable" is checked, the rule is enabled;
In the field "IP Address" the IP Address of the device to which addressing the broadcast messages is defined;
In the field "SubNet Mask" the SubNet Mask of the device to which addressing the broadcast messages is defined;
In the field "SubNet Mask" the UDP port for the communication is defined;
In the field "Mnemonic" a brief description is defined.
BACNET EDE FILE:
By pressing the "BACnet EDE
ADFweb.com S.r.l.
File" button it is possible to save the EDE file for the BACnet Master.
