Industrial Electronic Devices
User Manual
Revision 1.000
English

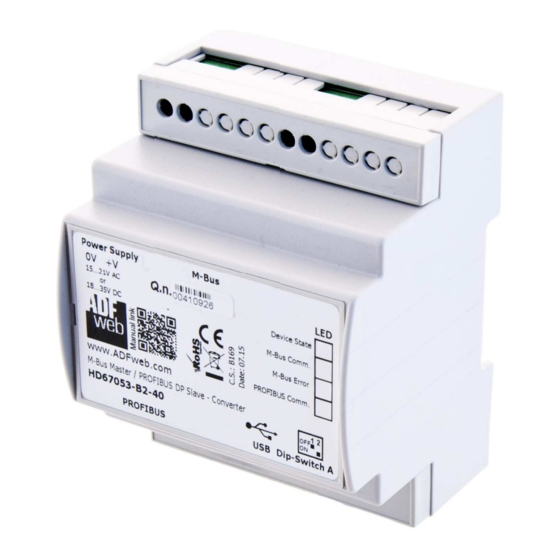

M-Bus / BACnet/IP - Converter
(Order Code: HD67694-IP-B2-1-10, HD67694-IP-B2-3-25,
HD67694-IP-B2-15-50, HD67694-IP-B2-30-75, HD67694-IP-B2-50-100)
For Website information:
www.adfweb.com?Product=HD67694
For Price information:
www.adfweb.com?Price=HD67694-IP-B2-1-10
www.adfweb.com?Price=HD67694-IP-B2-3-25
www.adfweb.com?Price=HD67694-IP-B2-15-50
www.adfweb.com?Price=HD67694-IP-B2-30-75
www.adfweb.com?Price=HD67694-IP-B2-50-100
Benefits and Main Features:
Very easy to configure
Triple electrical isolation
Temperature range: -40°C/85°C (-40°F/185°F)
User Manual
ADFweb.com S.r.l.
User Manual M-Bus / BACnet/IP
Document code: MN67694_ENG
For others M-Bus products see also the following link:
Converter M-Bus to
www.adfweb.com?Product=HD67021
www.adfweb.com?Product=HD67022
Analyzer / Scanner /Sniffer M-Bus
www.adfweb.com?Product=HD67031
Isolator/Repeater M-Bus
www.adfweb.com?Product=HD67032M
Gateway M-Bus / Modbus RTU
www.adfweb.com?Product=HD67029M-232
www.adfweb.com?Product=HD67029M-485
Gateway M-Bus / Modbus TCP
www.adfweb.com?Product=HD67044
Gateway M-Bus / CANopen
www.adfweb.com?Product=HD67051-B2
Gateway M-Bus / PROFIBUS
www.adfweb.com?Product=HD67053M
Gateway M-Bus Concentrator
www.adfweb.com?Product=HD67054M
Gateway M-Bus Slave / Modbus RTU master
www.adfweb.com?Product=HD67059M-232
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 25
(RS232)
(RS485)
(on RS232)
(on RS485)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ADF Web HD67694-IP-B2-1-10
Summary of Contents for ADF Web HD67694-IP-B2-1-10
- Page 1 Page 1 of 25 Industrial Electronic Devices User Manual Revision 1.000 English M-Bus / BACnet/IP - Converter (Order Code: HD67694-IP-B2-1-10, HD67694-IP-B2-3-25, HD67694-IP-B2-15-50, HD67694-IP-B2-30-75, HD67694-IP-B2-50-100) For Website information: For others M-Bus products see also the following link: www.adfweb.com?Product=HD67694 Converter M-Bus to www.adfweb.com?Product=HD67021...
-
Page 2: Updated Documentation
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 2 of 25 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Page Dear customer, we thank you for your attention and we remind you INDEX that you need to check that the following document is: UPDATED DOCUMENTATION Updated REVISION LIST... -
Page 3: Security Alert
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 3 of 25 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 4 of 25 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 5 of 25 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67694-IP-B2-xx-xxx ADFweb.com S.r.l. - Page 6 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 6 of 25 Industrial Electronic Devices CHARACTERISTICS: The HD67694-IP-B2 are converters between M-Bus to BACnet/IP and vice-versa. They allow to read standard M-Bus meters and M-Bus heating controllers like Siemens RVD series, AMARC AVD500 and many others. They allows the following characteristics: Electrical isolation between BACnet/IP and M-Bus;...
-
Page 7: Power Supply
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 7 of 25 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 15…21V AC and 18…35V DC. The consumption depends to the code of the device. For more details see the two tables below. -
Page 8: Function Modes
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 8 of 25 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device; The second, with ‘Dip1 of Dip-Switch A’... - Page 9 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 9 of 25 Industrial Electronic Devices LEDS: The device has got six LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state...
- Page 10 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 10 of 25 Industrial Electronic Devices M-BUS: The M-Bus is a unpolarized bus. A two wire standard telephone cable (JYStY N*2*0.8 mm) is used as the transmission medium for the M-Bus. The maximum distance between a slave and the repeater is 350m;...
- Page 11 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 11 of 25 Industrial Electronic Devices ETHERNET: The Ethernet port is used for Modbus TCP communication and for programming the device. The Ethernet connection must be made using Connector2 of HD67694-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m.
- Page 12 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 12 of 25 Industrial Electronic Devices USE OF COMPOSITOR SW67694: To configure the Converter, use the available software that runs with Windows called SW67694. It is downloadable from the site www.adfweb.com and its operation is described in this document (this manual is referenced to the last version of the software present on our web site).
-
Page 13: New Configuration / Open Configuration
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 13 of 25 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “M-Bus / BACnet/IP - Converter”... -
Page 14: Software Options
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 14 of 25 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 15 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 15 of 25 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 16: Set Communication
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 16 of 25 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of the three buses, BACnet/IP and M- Bus. By Pressing the “Set Communication” button from the main window for SW67694 (Fig. 2) the window “Set Communication”... - Page 17 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 17 of 25 Industrial Electronic Devices M-BUS By pressing the “M-Bus” button from the main window for SW67694 (Fig. 2) the window “M- Bus” appears (Fig. 4). In this section, it is possible to select the converter type and the list of nodes/variables of M-Bus side.
- Page 18 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 18 of 25 Industrial Electronic Devices SET BDT ACCESS By pressing the “Set BDT Access” button from the main window for SW67694 (Fig. 2) the window “Broadcast Distribution Table Access” appears (Fig.
-
Page 19: Update Device
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 19 of 25 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. If you don’t know the actual IP address of the device you have to use this procedure: Turn OFF the Device;... - Page 20 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 20 of 25 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67694 device. Warning: If Fig. 7 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
-
Page 21: Mechanical Dimensions
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 21 of 25 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67694-B2-xx-xxx ADFweb.com S.r.l. -
Page 22: Ordering Informations
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 22 of 25 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67694 – B 2 – xx - xxx Number of standard M-Bus meters connectable to the M-Bus port 10: Up to 10 standard M-Bus slaves 25: Up to 25 standard M-Bus slaves... - Page 23 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 23 of 25 Industrial Electronic Devices Order Code: HD67694-B2-1-10 M-Bus / BACnet/IP – Converter (1 heating controller + up to 10 M-Bus slaves) Order Code: HD67694-B2-3-25 M-Bus / BACnet/IP – Converter (3 heating controllers + up to 25 M-Bus slaves) Order Code: HD67694-B2-15-50 M-Bus / BACnet/IP –...
- Page 24 User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 24 of 25 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user.
-
Page 25: Warranties And Technical Support
User Manual M-Bus / BACnet/IP Document code: MN67694_ENG Revision 1.000 Page 25 of 25 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
