User Manual IEC61850 Client / BACnet Slave

Document code: MN67767_ENG

Revision 1.000

Page 19 of 32

Industrial Electronic Devices

IEC61850 ACCESS:

By Pressing the

"IEC61850

Access" button from the main window for SW67767 (Fig. 2) the window "IEC61850 Client Set Access" appears

(Fig. 4).

This section is used to define the list of IEC61850 variables from/to which take/map the data of BACnet.

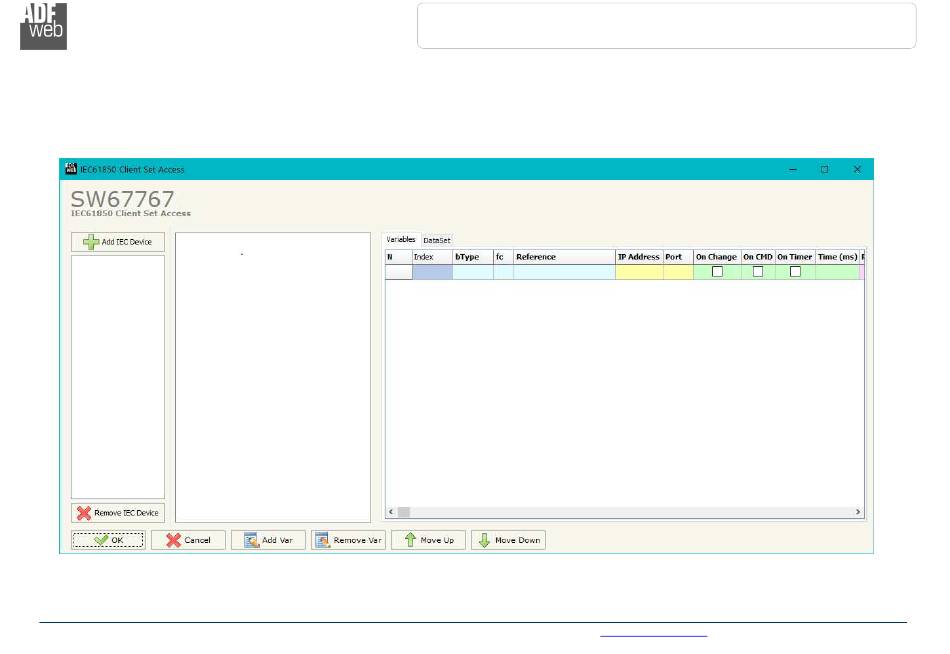

Figure 4: "IEC61850 Client Set Access" window

ADFweb.com Srl – IT31010 – Mareno – Treviso

INFO:

www.adfweb.com

Phone +39.0438.30.91.31
