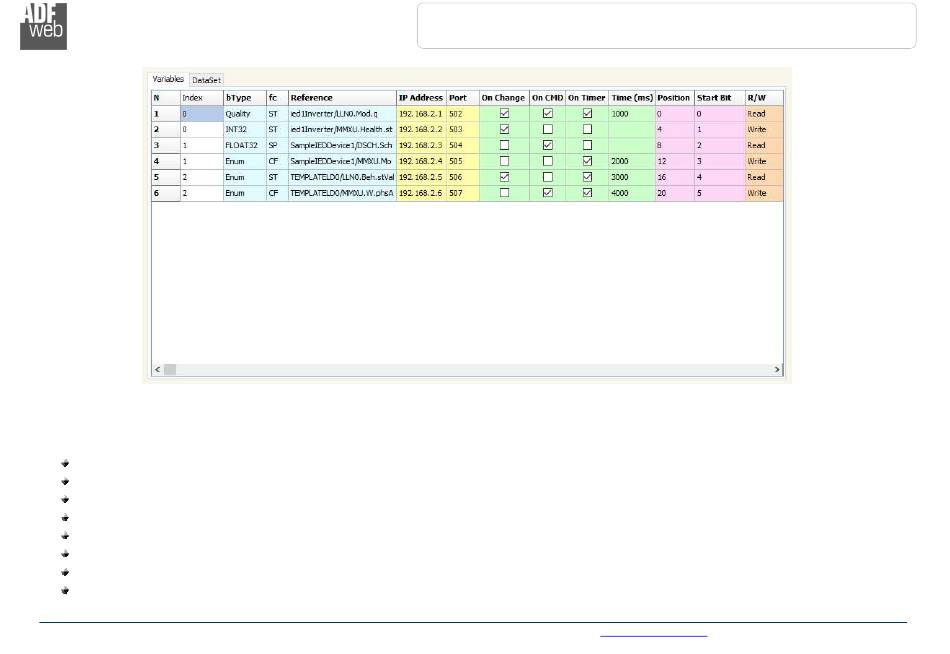

Figure 6: "Variables" section
The meanings of the fields are:
In the field "Index" the index of the server to which the IEC61850 variable belongs is defined;
In the field "bType" the data format of the IEC61850 variable is defined;
In the field "fc" the Functional Constraint of the IEC61850 variable is defined;
In the field "Reference" the path of the IEC61850 variable is defined;
In the field
"IP
Address" the IP Address of the server to which the IEC61850 variable belongs is defined;
In the field "Port" the Port of the server to which the IEC61850 variable belongs is defined;
If the field
"On
Change" is checked, the IEC61850 variable is sent when the data on BACnet changes the value (only in write);
If the field
"On
CMD" is checked, the IEC61850 variable is sent when a BACnet request is received (only in write);
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual IEC61850 Client / BACnet Slave
Document code: MN67767_ENG
Revision 1.000
INFO:
www.adfweb.com
Page 21 of 32
