If they are available in the functional structure, it is also possible to add Datasets (DS) to "DataSet" section (Fig. 7).

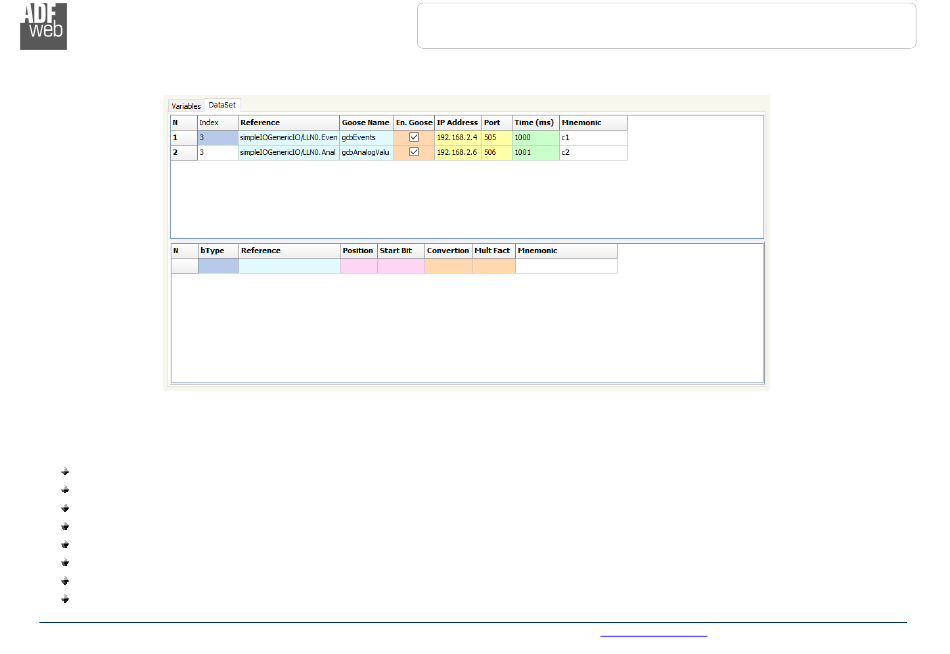

Figure 7: "DataSet" section
In the upper part, there are all the inserted Datasets. The meanings of the fields are:
In the field "Index" the index of the server to which the IEC61850 Dataset belongs is defined;
In the field "Reference" the path of the IEC61850 Dataset is defined;
In the field "Goose Name" the Goose Name of the IEC61850 Dataset is defined (if "En. Goose" is checked);
If the field "En. Goose" is checked, the Dataset is received as a Goose message;
In the field "IP Address" the IP Address of the server to which the Dataset belongs is defined (if "En. Goose" is unchecked);
In the field "Port" the Port of the server to which the Dataset belongs is defined (if "En. Goose" is unchecked);
In the field "Time (ms)" the delay in ms between two readings of the Dataset is defined (if "En. Goose" is unchecked);
In the field "Mnemonic" a description of the Dataset is defined.
