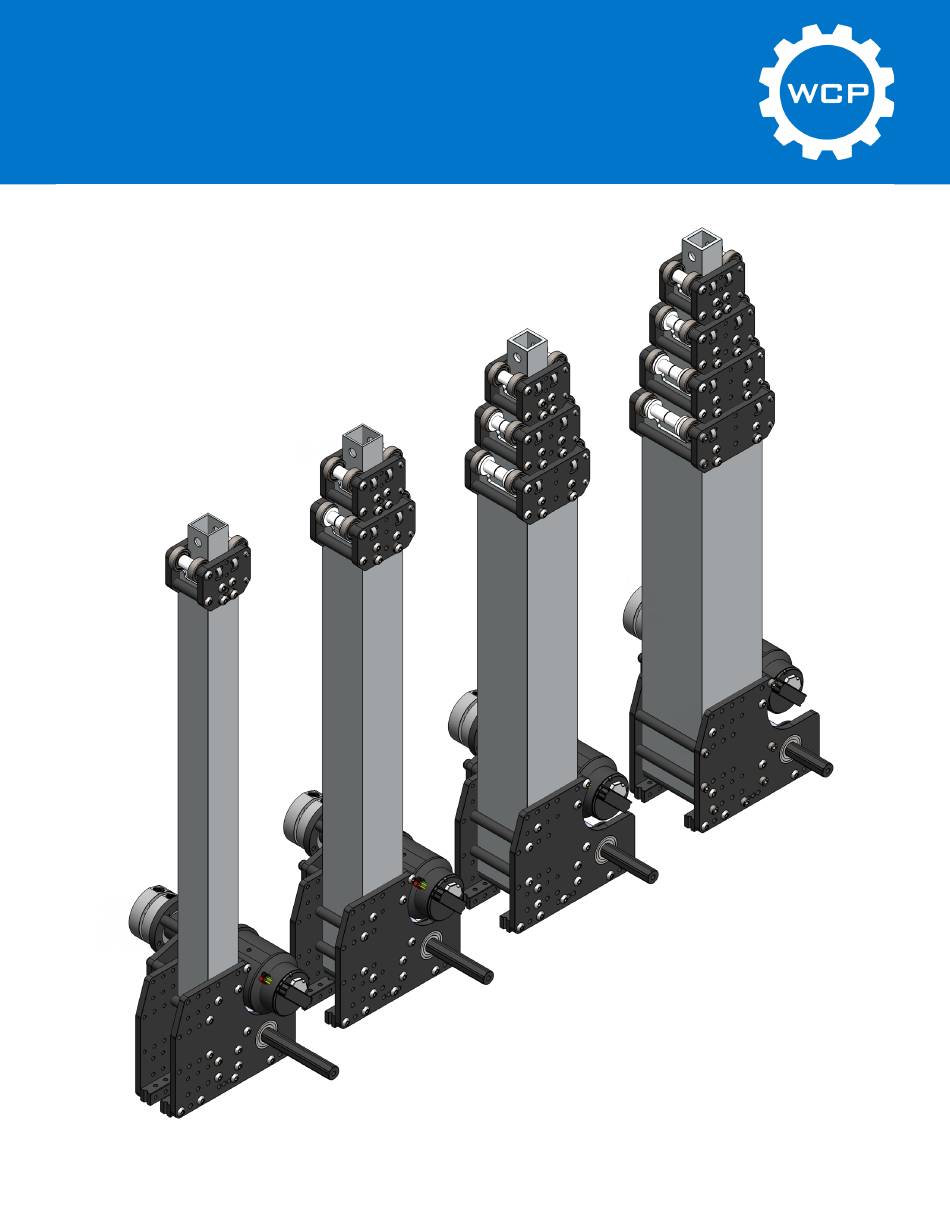

GreyT Telescope - User Guide

(Rev 1)

Table of Contents

Page 1

wcproducts.com

Summary of Contents for WCP GreyT

Page 1 GreyT Telescope - User Guide (Rev 1) Table of Contents Page 1 wcproducts.com...
Page 2 Calculating Tube Lengths ��6 Tube Hole Patterns ��7 GreyT Bottom Block Assembly Instructions ��9 GreyT Bottom Block - Step 1 �� 10 GreyT Top Block Assembly Instructions �� 11 GreyT Top Block - Step 1 �� 12 GreyT Top Block - Step 2 �� 13 GreyT Top Block - Step 3 ��...
Page 3 KIT-0020: GreyT 2 Stage Telescope (All �060” Wall) �� 44 KIT-0021: GreyT 2 Stage Telescope (All �125” Wall) �� 44 KIT-0022: GreyT 3 Stage Telescope (Mixed �060 &�125” Wall) �� 45 KIT-0023: GreyT 3 Stage Telescope (All �125” Wall) �� 45 KIT-0024: GreyT 4 Stage Telescope (Mixed �060 &�125”...
Page 4 GreyT Telescope - User Guide (Rev 1) WCP-0421: GreyT Telescope (Stage #4, 3” to 2�5”) �� 57 FAQ �� 58 Revision Table �� 59 Table of Contents Page 4 wcproducts.com...
Page 5 (Rev 1) What is the GreyT Telescope? The Greyt Telescope kit lets you make a linear telescoping system with little to no effort. Up to 40 inches per stage, up to 4 stages, and more than enough power from the Falcon 500 motor.
Page 6 Note: The max tube length for each stage (excluding the output stage) is roughly 40”� The is due to the max safe extension of the CF Springs sold by WCP, which is 40”� Table of Contents Page 6 wcproducts.com...
Page 7 GreyT Telescope - User Guide (Rev 1) Tube Hole Patterns The holes in the bottom of the Base Tube and top of the Intermediate/Base Tubes are used to pin the Top Blocks and Gearbox to their respective tubes. The holes in the bottom of the Intermediate Tube are used to install the Bottom Blocks, Hardstops, and CF Springs to their respective tubes.
Page 8 GreyT Telescope - User Guide (Rev 1) Recommended Tools Picture Name Snapring Pliers for 1/2” and 3/8” Snaprings SAE/Inch Allen Set Drill #18 and Ltr. F Drill Bits 5/16-18 Tap Table of Contents Page 8 wcproducts.com...
Page 9 GreyT Telescope - User Guide (Rev 1) GreyT Bottom Block Assembly Instructions Assembly instructions are interchangeable between the 1”, 1-1/2”, 2”, and 2-1/2” GreyT Telescope Bottom Blocks. Note: Blue Loctite (McMaster P/N 1004A12) is recommended on all bolts that thread into a tapped hole�...
Page 10 1/16” wall tube these bearings will be 1/4” ID x 5/8” OD bearings. There should be one Bearing Stack-Up for each slot in the GreyT Bottom Block you are assembling; 4 for the 1” Tube Bottom Block, and 8 for the 1-1/2” to 2-1/2” Tube Bottom Blocks.
Page 11 Assembly instructions are interchangeable between all sizes of the GreyT Top Block. For the purposes of this User Guide, the 2” GreyT Top Block is used as an example. Note: Blue Loctite (McMaster P/N 1004A12) is recommended on all bolts that thread into a tapped hole�...
Page 12 1/4” Dowel Pin in place to make assembly of the Top Block easier. The table below shows the Dowel Pin size used for each Top Block. Note: This step must be repeated for both halves of the GreyT Top Block you are assembling�...
Page 13 The table below shows the #10-32 bolt length, #10-32 spacer length, and CF Spring width for each size Top Block. Note: This step will be repeated for both halves of the GreyT Top Block you are assembling� Top Block Tube Size...
Page 14 GreyT Telescope - User Guide (Rev 1) GreyT Top Block - Step 3 The assembled halves from Step 2 should bolt together. Make sure the #10-32 Spacers are fully seated in the Top Block pockets before tightening the bolts. Warning: The Top Block must be assembled with the CF Springs in the correct orientation shown in Step 2, and in the image down below.
Page 15 GreyT Telescope - User Guide (Rev 1) Gearbox Assembly Instructions Assembly instructions are interchangeable between all configurations of the GreyT Telescope Gearbox. For the purposes of this User Guide, the 2” Base Gearbox is used as an example. Note: Blue Loctite (McMaster P/N 1004A12) is recommended on all bolts that thread into a tapped hole�...
Page 16 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 1 The Drum must be cut to the correct length for the Gearbox Configuration you are assembling. The table down below shows the correct lengths for each base tube size.
Page 17 Note: If you do not plan on assembling the Gearbox with either the Ratchet & Pawl or WCP Friction Brake, you may omit the 1/2” Hex ID x 1-1/8” OD Flanged Bearing boxed in blue in the image down below�...
Page 18 The image below shows the side the bearing must be installed from for all configurations of the Telescope Gearbox. The Nutstrips used to mount the GreyT Telescope must be cut to 1-1/2” long and assembled in the orientation shown in the image below.
Page 19 The image below shows the side the bearing must be installed from for all configurations of the Telescope Gearbox. The Nutstrips used to mount the GreyT Telescope must be cut to 1-1/2” long and assembled in the orientation shown in the image below.
Page 20 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 5 The Falcon 500 Motor is installed using two #10-32 x 1/2”L bolts. Warning: It is critical that the bolts used to install the Falcon 500 Motor do not thread more than 1/4”...
Page 21 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 6 Slide on all components in the order shown in the image below. If you plan on using a CTRE Mag Encoder on the Output Shaft, you must drill out the shaft and press in the 1/4”...
Page 22 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 7 Bolt the two halves of the Gearbox together using the #10-32 x 1-3/4”L bolts. The image down below shows the bolt locations marked out in green. Note: If you are assembling either the Flipped or Non-Flipped configurations of the 1-1/2”...
Page 23 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 8 Slide the assembled Drum from Step 1 onto the output shaft. You may have to loosen the #10-32 x 3/8”L bolt in order to do this. Once the Drum is in place, check that the flange does not rub against the Gearbox Plate when the output shaft is spun by hand.
Page 24 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 9 Bolt the two halves of the gearbox together. The bolt locations for the different Gearbox configurations are shown on the following four pages. When the Gearbox is fully assembled, make sure the Drum Flanges do not rub against the Gearbox Plates when the Output Shaft is spun by hand.
Page 25 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 9 (1-1/2” Base Gearbox) The images shown below mark out the bolt locations in green, blue, and orange. These configurations of the Gearbox both use #10-32 x 2”L bolts and 1-1/2”L spacers.
Page 26 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 9 (2” Base Gearbox) The images shown below mark out the bolt locations in green, blue, and orange. These configurations of the Gearbox both use #10-32 x 2-1/2”L bolts and 2”L spacers.
Page 27 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 9 (2-1/2” Base Gearbox) The images shown below mark out the bolt locations in green, blue, and orange. These configurations of the Gearbox both use #10-32 x 3”L bolts and 2-1/2”L spacers.
Page 28 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 9 (3” Base Gearbox) The images shown below mark out the bolt locations in green, blue, and orange. These configurations of the Gearbox both use #10-32 x 3-1/2”L bolts and 3”L spacers.
Page 29 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 10 To mount the Friction Brake, first bolt the Break Pad to the Outside Gearbox Plate, then mount the Piston Mount, and finally install the Piston with Cone. Note: This step can be skipped if you plan on using the Telescope without the Ratchet &...
Page 30 Note: This step can be skipped if you plan on using the Telescope without the Ratchet & Pawl or WCP Friction Brake� Note: Piston and #8-32 x 1”L Bolt are not sold by WCP� Table of Contents Page 30...
Page 31 GreyT Telescope - User Guide (Rev 1) Gearbox - Step 11 Install the 3D Printed Mag Encoder Mount using two #10-32 x 1/2”L bolts. To install the Mag Encoder, remove the board from the case and fit it into the cutout on the 3D Printed Mag Encoder Mount.
Page 32 GreyT Telescope - User Guide (Rev 1) Telescope Assembly Instructions These instructions show the assembly for one stage. For any extra stages, repeat steps 2-5 before running the string. Note: Blue Loctite (McMaster P/N 1004A12) is recommended on all bolts that thread into a tapped hole�...
Page 33 GreyT Telescope - User Guide (Rev 1) Telescope - Step 1 Slide the Base Tube for your Telescope into the gearbox. In order to do this, loosen all bolts and remove all #10-32 x 3/8”L bolts. The 4 holes in the Base Tube will align with the holes for the #10-32 x 3/8”L bolts.
Page 34 GreyT Telescope - User Guide (Rev 1) Telescope - Step 2 Slide the correct Top Block and Bottom Block onto the Tube for the next stage being assembled. For example, the images below show the 1-1/2” Tube with the 2” Top Block and the 1-1/2”...
Page 35 GreyT Telescope - User Guide (Rev 1) Telescope - Step 3 Bolt the flat tab of the CF Spring through the Tube into the Bottom Block using an Ultra Low Profile #10-32 x 3/8”L Bolt. Repeat this step for both CF Springs in the Top Block.
Page 36 (Rev 1) Telescope - Step 4 Pull the Top Block down the tube. Bolt the correct GreyT Telescope Hardstops to the tube using Ultra Low Profile #10-32 x 3/8”L Bolts. These bolts should thread through the Hardstop and into the Bottom Block. The hardstop used must be cut to the same width as the tube it is being bolted to.
Page 37 GreyT Telescope - User Guide (Rev 1) Telescope - Step 5 Slide the assembly from Step 4 into the correct tube. For example, the image below shows the 1-1/2” Tube being slid into the 2” Base Tube. Loosen the 4 bolts on the Top Block and slide the Top Block over the end of the larger tube.
Page 38 Note: If any of the bolts used in this step rub against the smaller tube while it is moving, add 0�010” thick #10 Washers (WCP-0038) underneath them until they no longer rub� Table of Contents Page 38 wcproducts.com...
Page 39 (Rev 1) Telescope - Step 6 (Continued) If you are assembling the 1 to 1-1/2” Stage without the GreyT Telescope Hardstop, make sure to only thread in the left hardstop bolt in the top block. If both bolts (or just the right bolt) are used, the hardstop bolt may dent the slot for the Bearing Stack-Up in the 1”...
Page 40 GreyT Telescope - User Guide (Rev 1) Telescope - Step 7 (Non-Flipped) The string will be attached to the Drum using the #10-32 x 3/8”L bolt installed in Gearbox - Step 1. From there, drop the other end of the string through the bottom of the assembled Telescope and fish it through all the stages.
Page 41 GreyT Telescope - User Guide (Rev 1) Telescope - Step 7 (Flipped) The string will be attached to the drum using the #10-32 x 3/8”L Bolt installed in Gearbox - Step 1. The other end of the string will attach to a custom plate or shaft created by the user.
Page 42 GreyT 2 Stage Telescope (All .060" Wall) KIT-0021 GreyT 2 Stage Telescope (All .125" Wall) KIT-0022 GreyT 3 Stage Telescope (Mixed .060 &.125" Wall) KIT-0023 GreyT 3 Stage Telescope (All .125" Wall) KIT-0024 GreyT 4 Stage Telescope (Mixed .060 &.125" Wall) KIT-0025 GreyT 4 Stage Telescope (All .125"...
Page 43 GreyT Telescope - User Guide (Rev 1) KIT-0018: GreyT 1 Stage Telescope (All .060” Wall) Part Number Name WCP-0418 GreyT Telescope (Stage #1, 1.5” to 1”) WCP-0041 0.250” ID x 0.625” OD x 0.196” WD (Radial Bearing) WCP-0079 1” x 1” x 0.0625” Aluminum Tube Stock (59”) WCP-0283 1.5”...
Page 44 GreyT Telescope - User Guide (Rev 1) KIT-0020: GreyT 2 Stage Telescope (All .060” Wall) Part Number Name WCP-0418 GreyT Telescope (Stage #1, 1.5” to 1”) WCP-0419 GreyT Telescope (Stage #2, 2” to 1.5”) WCP-0041 0.250” ID x 0.625” OD x 0.196” WD (Radial Bearing) WCP-0079 1”...
Page 45 GreyT Telescope - User Guide (Rev 1) KIT-0022: GreyT 3 Stage Telescope (Mixed .060 &.125” Wall) Part Number Name WCP-0418 GreyT Telescope (Stage #1, 1.5” to 1”) WCP-0419 GreyT Telescope (Stage #2, 2” to 1.5”) WCP-0420 GreyT Telescope (Stage #3, 2.5” to 2”) WCP-0041 0.250”...
Page 46 GreyT Telescope - User Guide (Rev 1) KIT-0024: GreyT 4 Stage Telescope (Mixed .060 &.125” Wall) Part Number Name WCP-0418 GreyT Telescope (Stage #1, 1.5” to 1”) WCP-0419 GreyT Telescope (Stage #2, 2” to 1.5”) WCP-0420 GreyT Telescope (Stage #3, 2.5” to 2”) WCP-0421 GreyT Telescope (Stage #4, 3”...
Page 47 GreyT Telescope - User Guide (Rev 1) KIT-0026: GreyT Telescope Gearbox (Falcon, 10.61:1) Part Number Name WCP-0416 GreyT Telescope Gearbox (Stages #1-4) 217-2731 0.500” ID x 1.125” OD x 0.313” WD (Flanged Bearing) 217-4006 1/2” ThunderHex ID x 1.125” OD x 0.313” WD (Flanged Bearing)
Page 48 GreyT Telescope - User Guide (Rev 1) KIT-0027: GreyT Telescope Gearbox (Falcon, 15.34:1) Part Number Name WCP-0416 GreyT Telescope Gearbox (Stages #1-4) 217-2731 0.500” ID x 1.125” OD x 0.313” WD (Flanged Bearing) 217-4006 1/2” ThunderHex ID x 1.125” OD x 0.313” WD (Flanged Bearing)
Page 49 GreyT Telescope - User Guide (Rev 1) KIT-0028: GreyT Telescope Gearbox (Falcon, 20.25:1) Part Number Name WCP-0416 GreyT Telescope Gearbox (Stages #1-4) 217-2731 0.500” ID x 1.125” OD x 0.313” WD (Flanged Bearing) 217-4006 1/2” ThunderHex ID x 1.125” OD x 0.313” WD (Flanged Bearing)
Page 50 GreyT Telescope - User Guide (Rev 1) KIT-0029: GreyT Telescope Gearbox (Cim, 10.62:1) Part Number Name WCP-0416 GreyT Telescope Gearbox (Stages #1-4) 217-2731 0.500” ID x 1.125” OD x 0.313” WD (Flanged Bearing) 217-4006 1/2” ThunderHex ID x 1.125” OD x 0.313” WD (Flanged Bearing)
Page 51 GreyT Telescope - User Guide (Rev 1) KIT-0030: GreyT Telescope Gearbox (Cim, 15.60:1) Part Number Name WCP-0416 GreyT Telescope Gearbox (Stages #1-4) 217-2731 0.500” ID x 1.125” OD x 0.313” WD (Flanged Bearing) 217-4006 1/2” ThunderHex ID x 1.125” OD x 0.313” WD (Flanged Bearing)
Page 52 GreyT Telescope - User Guide (Rev 1) KIT-0031: GreyT Telescope Gearbox (Cim, 18.00:1) Part Number Name WCP-0416 GreyT Telescope Gearbox (Stages #1-4) 217-2731 0.500” ID x 1.125” OD x 0.313” WD (Flanged Bearing) 217-4006 1/2” ThunderHex ID x 1.125” OD x 0.313” WD (Flanged Bearing)
Page 53 Aluminum Spacers (.196" ID x 3/8" OD x 1/8" WD) WCP-0225-006 Rotation SS Gearbox - Second Stage Shaft WCP-0416-007 GreyT Telescope - String Drum (2.563" Length) 217-3257 1/16" Acetal Spacer - 1/2" Hex 217-3259 1/4" Acetal Spacer - 1/2" Hex WCP-0251 #10-32 x 1/4"L BHCS...
Page 54 Plastic Tube Plug Sleeve (1"x1"x.06", 1/4" Clearance) #4-40 x 1/2"L SHCS Note: Because the wall thickness of the tubing affects the spacing of the GreyT Bottom Blocks, the Bottom Block bearings are not included in WCP-0418� Instead, they are included in KIT-0018 through KIT-0025�...
Page 55 WCP-0419-011 Plastic Tube Plug Sleeve (1.25"x1.25"x.06", 1/4" Clearance) Note: Because the wall thickness of the tubing affects the spacing of the GreyT Bottom Blocks, the Bottom Block bearings are not included in WCP-0419� Instead, they are included in KIT-0018 through KIT-0025�...
Page 56 WCP-0420-012 Plastic Tube Plug Sleeve (2"x2"x.06", 1/4" Clearance) Note: Because the wall thickness of the tubing affects the spacing of the GreyT Bottom Blocks, the Bottom Block bearings are not included in WCP-0420� Instead, they are included in KIT-0018 through KIT-0025�...
Page 57 WCP-0421-013 Plastic Tube Plug Sleeve (2.5"x2.5"x.06", 1/4" Clearance) Note: Because the wall thickness of the tubing affects the spacing of the GreyT Bottom Blocks, the Bottom Block bearings are not included in WCP-0421� Instead, they are included in KIT-0018 through KIT-0025�...
Page 58 GreyT Telescope - User Guide (Rev 1) Q: None of the bolts in any of my Top Blocks rub, but my Telescope still doesn’t extend smoothly. What do I do? A: This may be because the square tube used for the stages of your Telescope are too big.
Page 59 GreyT Telescope - User Guide (Rev 1) Revision Table Revision Date Revision # Description 11/22/2021 First revision created. Table of Contents Page 59 wcproducts.com...
