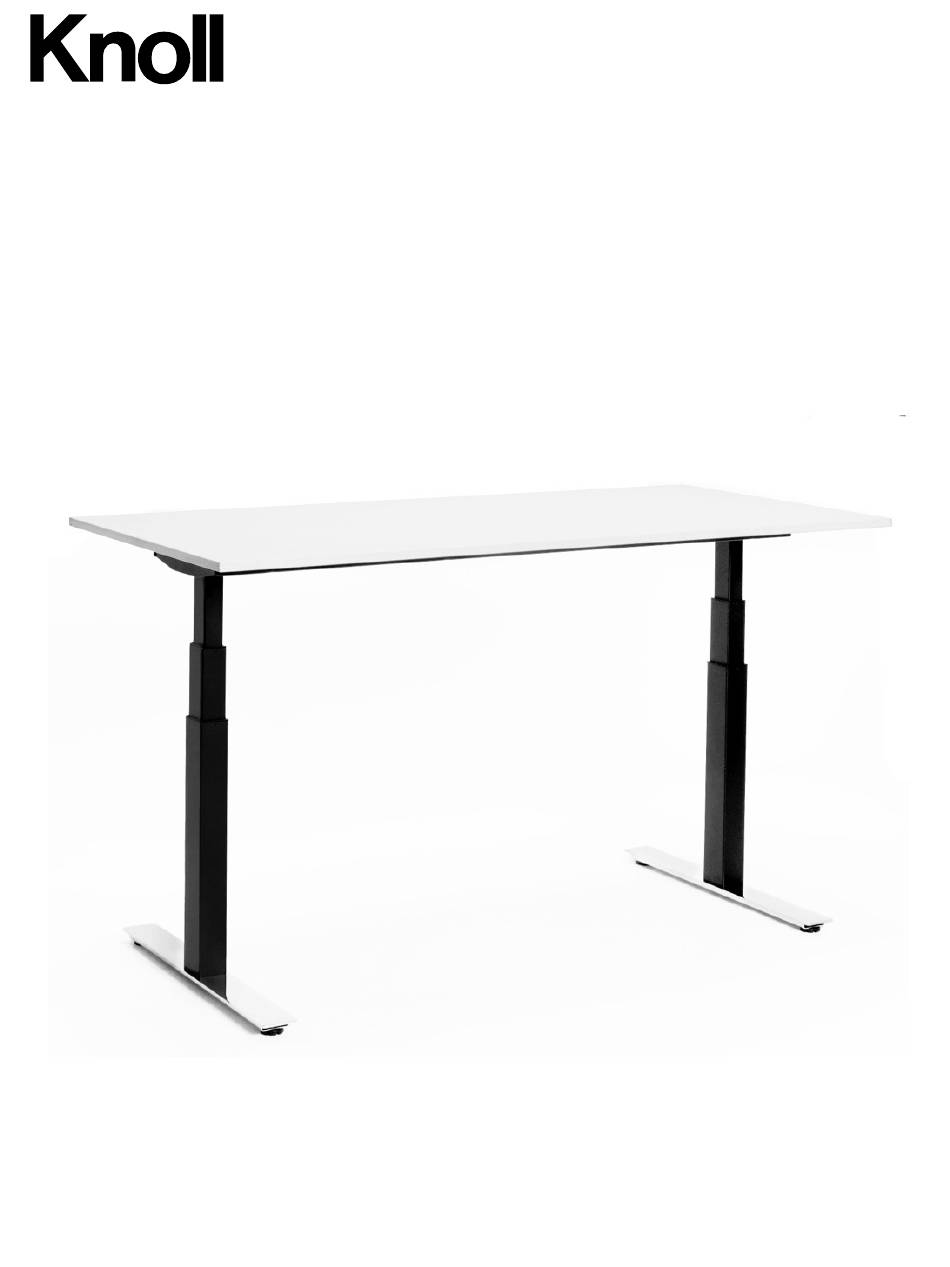

k.stand Height-Adjustable Table
Standard Electric and Extended Electric
—Stroke 650/470
User Manual
Knoll, Inc.
Customer Service
1235 Water Street
East Greenville, PA 18041
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for Knoll k.stand
Indoor Furnishing Knoll k.stand User Manual
K.stand height-adjustable table standard electric and extended electric - stroke 470/650 (16 pages)
Indoor Furnishing Knoll k.stand Electric Assembly Instructions Manual
(11 pages)
Indoor Furnishing knoll KCXA4818 Installation Instructions
Tables (4 pages)
Indoor Furnishing Knoll Pixel KCXE6030G Installation Instructions Manual
C-leg electric height adjustable tables (6 pages)
Indoor Furnishing Knoll Pixel KTXW7230 Installation Instructions
T-leg fixed height fixed-top tables (3 pages)
Indoor Furnishing Knoll Pixel KTXE6036G Installation Instructions Manual
T-leg electric height adjustable tables (6 pages)
Indoor Furnishing Knoll Pixel KYXW7236 Installation Instructions
Y-leg fixed-top tables (2 pages)
Indoor Furnishing Knoll Pixel KYPW8436C Installation Instructions
Y-leg flip-top tables (3 pages)
Indoor Furnishing Knoll Pixel KBXL36DG Installation Instructions
Column leg tables (3 pages)
Indoor Furnishing Knoll Pixel KFXW4818 Installation Instructions
Four leg tables (2 pages)
Indoor Furnishing Knoll k. bench Troubleshooting Manual
For use with k. bench height-adjustable tables (2 pages)
Indoor Furnishing Knoll k. base Installation Instructions Manual
(9 pages)
Indoor Furnishing Knoll 400 User Manual
Reff profiles height adjustable electric stroke (15 pages)
Indoor Furnishing Knoll Reff Profiles 6TP00587 Installation Instruction
Wall mount height adjustable table (31 pages)
Indoor Furnishing Knoll Tone Electric Assembly Instructions Manual
(12 pages)
Indoor Furnishing Knoll Stroke 665/420 User Manual
Tone electric & extended electric (15 pages)
Summary of Contents for Knoll k.stand
Page 1
Height-Adjustable Table Standard Electric and Extended Electric —Stroke 650/470 User Manual Knoll, Inc. Customer Service 1235 Water Street East Greenville, PA 18041...
Page 2: Table Of Contents
Servicing of double-insulated products Appendix Accessories, Series EE, ECS+ Dimensions column system: Series EE, ECS+ with 665 stroke BIFMA Dimensions column system: Series EE, ECS+ with 420 stroke ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 2...
Page 3: Important Information-Safety First
ROL reserves the right to discontinue or change specifications or design at anytime without notice and without incurring any obligation whatsoever. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 3...
Page 4: Important Safety Instructions, Please Save These Instruction
5. Keep the cord away from heated surfaces. 6. Never operate the table with the air openings blocked. Keep the air openings free of lint, hair, and the like. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 4...
Page 5
14. The table must not be structurally or technically other electrical device. To prevent damage, use only altered or modified in any way. components recommended by the manufacturing company. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 5...
Page 6: User Information
1.4 Electrical rating Electrical rating, input: 120VAC, 50-60Hz, 3,2A. Output 35V. 2 Assembly & Adjustment Typical Product Label with Date of Manufacture Power supply for 40mm/sec speed ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 6...
Page 7: Assembly & Adjustment
(2). When there are 2 motors, connect to socket 1 and 2. 2. Connect the handset to the relevant socket on the control unit / ECS+ ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 7...
Page 8: Optional Mounting Guidelines
This product is designed for the voltage indicated on the power supply label. No adapters should be used with this product. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 8...
Page 9: Adjustments
In case of failure or unexpected operation or for maintenance contact your vendor and arrange for service by a qualified technician. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 9...
Page 10: Operation Instructions
Unplug the power cord during a thunderstorm or if you Failure to do so may cause injury to user or equipment. do not intend to use the desk for a longer period. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 10...
Page 11: Upward Desktop Movement
NOTICE he desktop will continue moving downwards until you release the button or the minimum height is reached. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 11...
Page 12: Advanced Functions, Manuel Reset
Even poor connection of the cables could create a need for resetting. CAUTION —Risk of pinching ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 12...
Page 13: Maintenance & Repairs
This information will remain stored even in case of power failure or if the power cable is disconnected from the power outlet. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 13...
Page 14: Servicing Of Double-Insulated Products
Failure to do so may cause injury to user or equipment. • Soft start Progressive acceleration allows for soft starts and stops. • Speed the speed of the table varies with load. ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 14...
Page 15: Appendix
Cables: Length 118" (3000mm) (primary side) P/N 68002262 separately item, 4,86 oz. Cable length secondary side at power supply 68002264 L= 20"(2000mm) (68002235 L= 80-½" (500mm)) ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 15...
Page 16: Dimensions Column System: Series Ee, Ecs+ With 665 Stroke Bifma
5.2 Dimensions column system: Series EE, ECS+ with 665 stroke Bifma 68004634 - D © ROL USA Inc ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 16...
Page 17: Dimensions Column System: Series Ee, Ecs+ With 420 Stroke
5.3 Dimensions column system: Series EE, ECS+ with 420 stroke ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 17...
Page 18
Both columns moving downwards Drive all the way to bottom position Able to move the table up again? Done! Motor or actuator damaged, change the column that is moving ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 18...
Page 19
Change the column that is moving faster than the other Desk moving too slow Only able to drive down Do a reset Change power supply Desk only moving short distances ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 19...
Page 20
Do a reset way down Only able to drive up Do a reset Do a reset Only able to drive own Desktop not horizontal Do a reset 79101290_F ©Knoll, Inc. k.stand Height-Adjustable Table Standard Electric and Extended Electric—Stroke 650/470 User Manual 20...
