PIXEL™ Installation Instructions
Four Leg Tables
Glides or casters
Rectangular tables:
KFXW4818
KFXW4830
KFXW6018
KFXW6030
KFXW7218
KFXW7230
KFXW4824
KFXW4836
KFXW6024
KFXW6036
KFXW7224
KFXW7236
Please pay close attention to torque requirements.

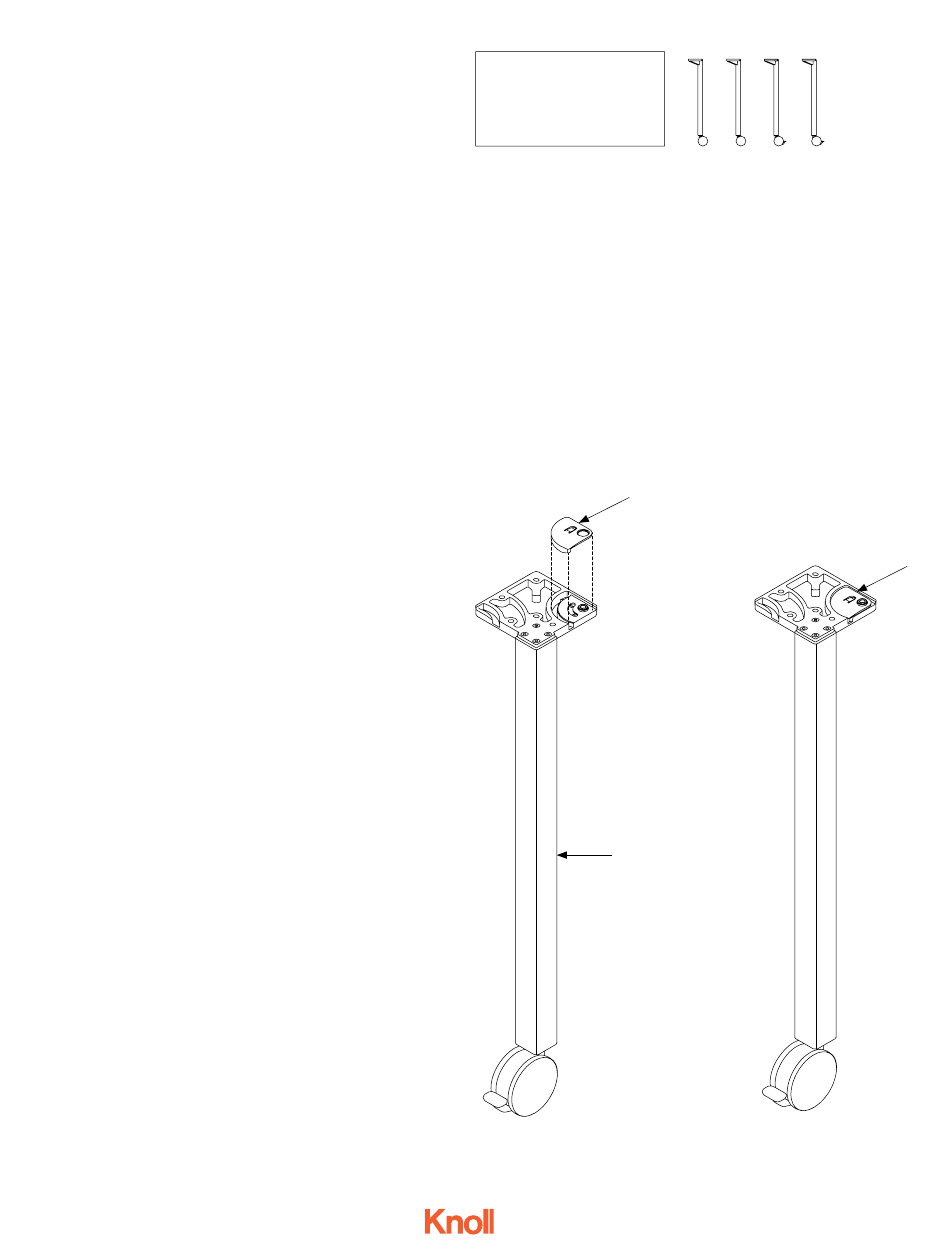

Step 1.
Position each plastic ganging connector (A) within
the upper casting slot for each leg (B).
4AU6006 - Oct 2015
Page 1 of 2
Square tables:
KFXW3636
KFXW4242
KFXW4848
Parts list:
1 Table top
4 Legs (with connectors)
Tools needed:
Allen wrench
Torque wrench
Phillips screwdriver
A
B
* Casters shown
Hardware:
24 Socket cap head 1/4-20 x 1.00 screws
2 Vertical wire management clips
(clear plastic)
4 Horizontal wire management clips
with wood screws
Fig. 1
A

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pixel KFXW4818 and is the answer not in the manual?

Questions and answers

Summary of Contents for Knoll Pixel KFXW4818

  • Page 1 PIXEL™ Installation Instructions Four Leg Tables Glides or casters * Casters shown Rectangular tables: Square tables: Parts list: Hardware: KFXW4818 KFXW4830 KFXW3636 1 Table top 24 Socket cap head 1/4-20 x 1.00 screws KFXW6018 KFXW6030 KFXW4242 4 Legs (with connectors) 2 Vertical wire management clips KFXW7218 KFXW7230...
  • Page 2 PIXEL™ Installation Instructions Four Leg Tables Step 2. Lay the inverted table top on the floor. Step 3. Attach each leg to the table top using Socket cap head 1/4-20 x 1.00 screws (C), 6 per leg, torque: 100 in/lb. For tables with casters, keep both locking casters (D) on the same side of the top.
