PIXEL™ Installation Instructions
Column Leg Tables
Glides only
Round tables:
Square tables:
KBXL36DG
KBXL3030G
KBXW36DG
KBXW3030G
KBXC36DG
KBXC3030G
KBXB36DG
KBXB3030G
Please pay close attention to torque requirements.
Step 1.
Attach the column extrusion (A) to the base (B)
using 4
5/16-18 x 3.00 screws
socket cap head
(C), torque: 200 in/lb.
4AU6005 - Oct 2015
Page 1 of 3
Parts list:
Hardware:
1 Table top
8 Socket cap head 5/16-18 x 3.00 screws
1 Column extrusion
1 Top support
4 Socket cap head 5/16-18 x 2.00 screws
1 Base (with glides)
2 Vertical wire management clips
Tools needed:
Allen wrench
Torque wrench
B
(base/support to extrusion)
(base to top)
(clear plastic)
A
C

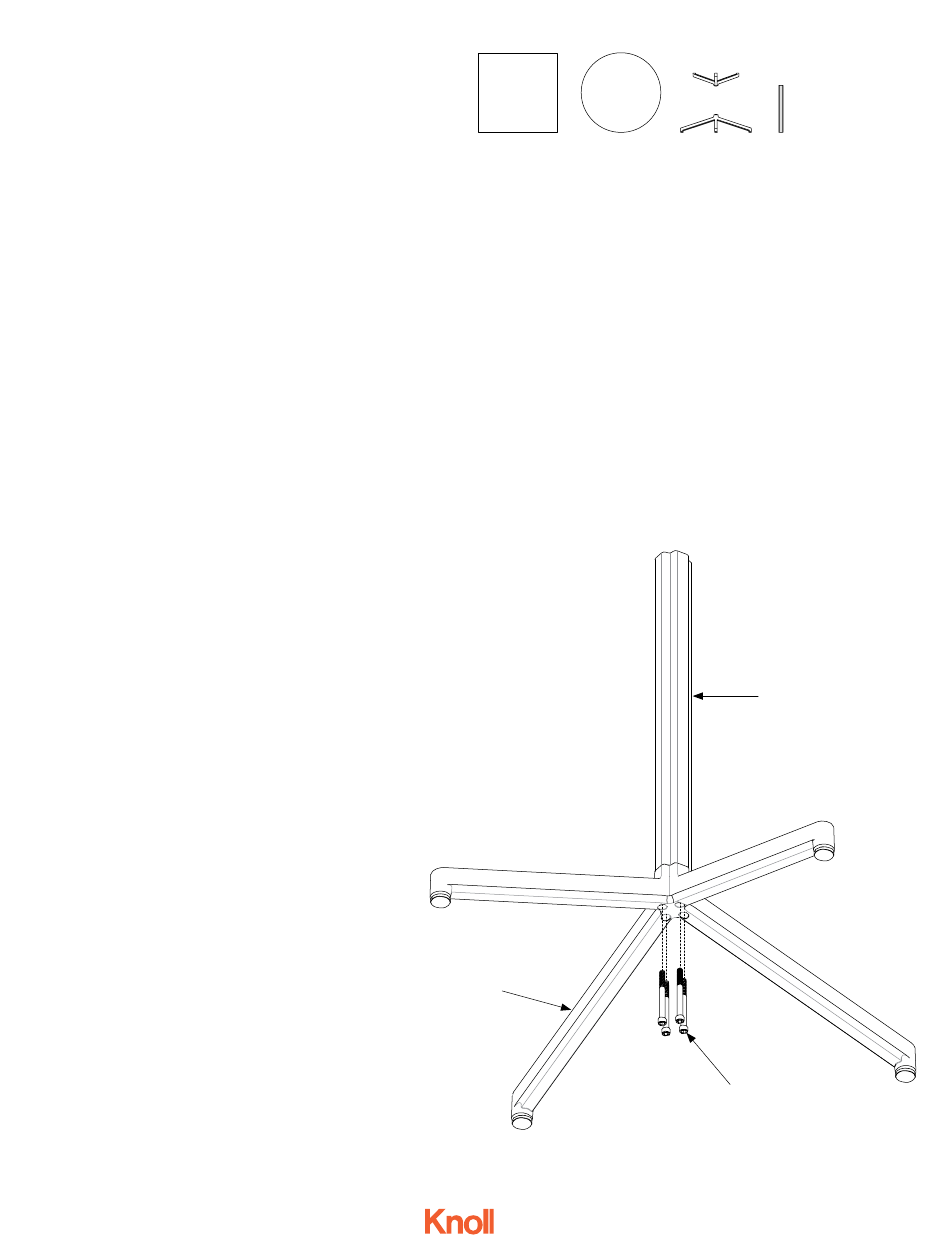

Fig. 1
