PIXEL™ Installation Instructions
Y-Leg Flip-top Tables
Casters only
Related tables:
KYPW7236C
KYPW8436C
Unboxing
You should have received your top plus two boxes per table.
Box 1 includes:
Leg assemblies, hardware in a red plastic bag, and installa-
tion instructions.
Box 2 includes:
Horizontal rails
Please pay close attention to torque requirements.

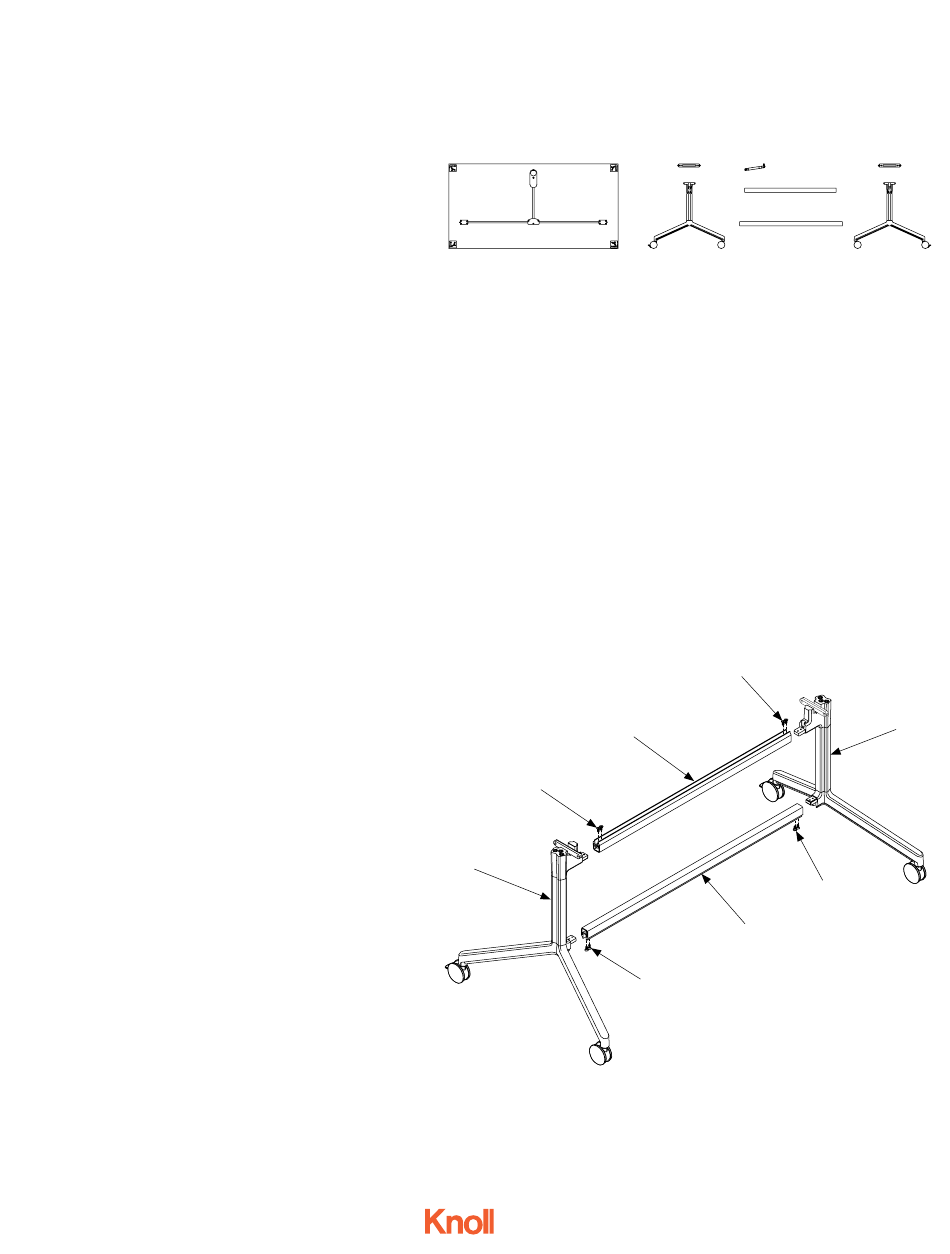

Step 1.
Attach the leg assemblies (A) on each end of the
two horizontal rails (B) with flat head 1/4 - 20
screws (C), 4 per rail. Use 5/32" allen wrench,
torque: 50 in/lbs
4AU6007 - Oct 2015
Page 1 of 3
Parts list
1 Table top
2 Leg assemblies
2 Horizontal rails
2 Top brackets
Tools needed
Allen wrenches
Phillips screwdriver
Torque wrench
B
C
A
Hardware
8 Flat head 1/4 - 20 screws
8 Socket cap head 1/4 - 20 screws
4 5/16" Shoulder screws
2 Vertical wire management clips
(clear plastic)
4 Horizontal wire management clips
with wood screws
C
C
B
C
A
Fig. 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Knoll Pixel KYPW8436C
Summary of Contents for Knoll Pixel KYPW8436C
- Page 1 PIXEL™ Installation Instructions Y-Leg Flip-top Tables Casters only Related tables: KYPW7236C KYPW8436C Unboxing Parts list Hardware You should have received your top plus two boxes per table. 1 Table top 8 Flat head 1/4 - 20 screws 2 Leg assemblies 8 Socket cap head 1/4 - 20 screws 2 Horizontal rails Box 1 includes:...
- Page 2 PIXEL™ Installation Instructions Y-Leg Flip-top Tables Step 2. Lay the inverted table top on the floor. Attach table top brackets (D) to table top with socket cap head 1/4 - 20 screws (E) 4 per bracket. Use 3/16” allen wrench, torque: 130 in/lbs Fig.
- Page 3 PIXEL™ Installation Instructions Y-Leg Flip-top Tables Step 4. Turn the table assembly over into the upright position. Step 5. Attach the gas cylinder to the leg and horizontal rail subassembly (I) and the table top (J). All tables come with 2 vertical wire management clips, 4 horizontal wire management clips and wood screws for Fig.
