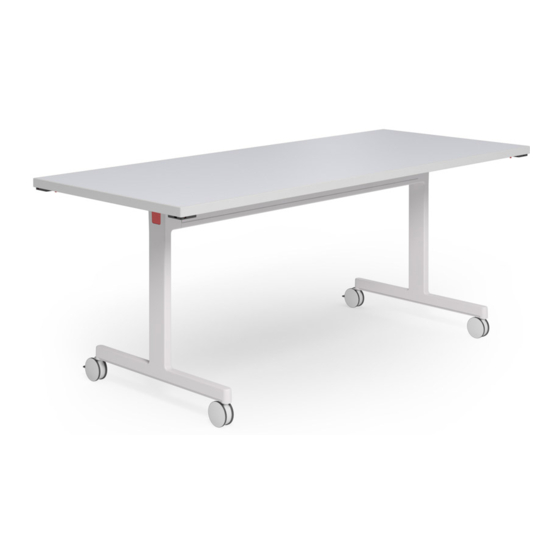

PIXEL™ Installation Instructions
T-Leg Fixed Height Fixed-top Tables
Glides or casters
Related tables:
KTXW6030
KTXW6036
KTXW7230
KTXW7236
Unboxing
You should have received your top plus two boxes per table.
Box 1 includes:
T-Leg assemblies, hardware in a red plastic bag, and
installation instructions.
Box 2 includes:
Wire management trough and flip door.
Please pay close attention to torque
requirements.

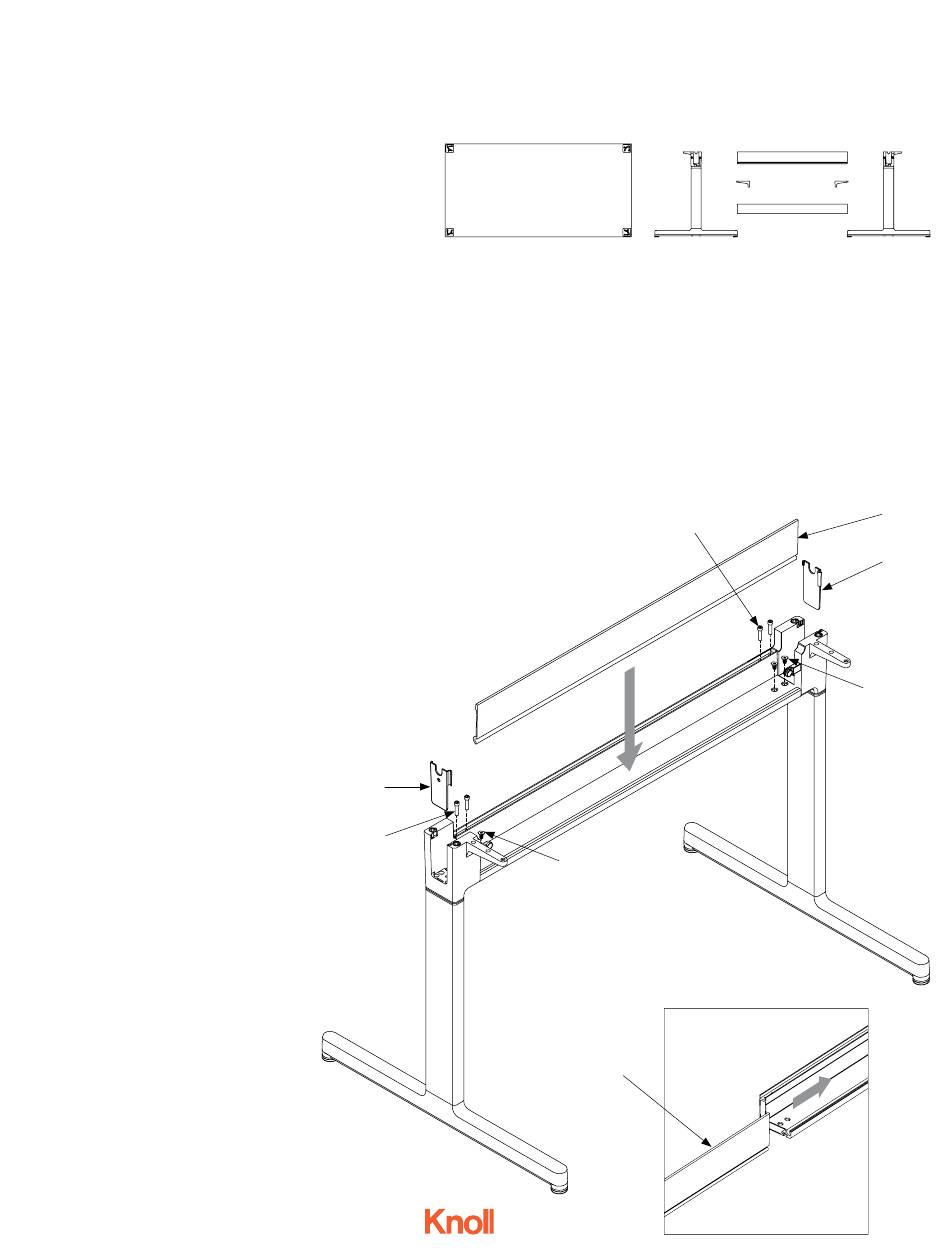

Step 1.
Slide the flip door (A) in from the end of
the wire management trough groove.
Step 2.
Attach the wire management trough
to the T-legs. Use socket cap head
1/4"-20 x 1" screws (C), 2 per leg, use
5/32" allen wrench, torque: 50 in/lb.
Use flat head 1/4"-20 x 1/2" screws
(D), 2 per leg, use 3/16" allen wrench,
torque: 50 in/lb.
Step 3.
Drop the trough end covers (B) into
the slots on each leg upper casting.
4AU6003 - Oct 2015
Page 1 of 3
Parts list
1 Table top
1 Left T-leg assembly
1 Right T-leg assembly
2 Table top support castings
1 Wire management trough
1 Flip door
Tools needed
Phillips screwdriver
Allen wrenches
Torque wrench
B
C
Fig. 1
Hardware
4 Socket cap head 1/4"-20 x 1" screws
4 Socket cap head 1/4"-20 x 2" screws
4 Flat head 1/4"-20 x 1/2" screws
10 Socket cap head 5/16"-18 x 1" screws
2 Vertical wire management clips
(clear plastic)
4 Horizontal wire management clips
with wood screws
C
D
A
* Glides shown
A
B
D
Fig. 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Pixel KTXW7230 and is the answer not in the manual?

Questions and answers

Summary of Contents for Knoll Pixel KTXW7230

  • Page 1 PIXEL™ Installation Instructions T-Leg Fixed Height Fixed-top Tables Glides or casters Related tables: KTXW6030 KTXW6036 KTXW7230 KTXW7236 * Glides shown Unboxing Parts list Hardware You should have received your top plus two boxes per table. 1 Table top 4 Socket cap head 1/4”-20 x 1” screws 1 Left T-leg assembly 4 Socket cap head 1/4”-20 x 2”...
  • Page 2 PIXEL™ Installation Instructions T-Leg Fixed Height Fixed-top Tables Step 4. Attach the two table top supports (E) to the trough with socket cap head 1/4”-20 x 2” screws (F), torque: 50 in/lb, 2 per support. Fig. 3 4AU6003 - Oct 2015 Page 2 of 3...
  • Page 3 PIXEL™ Installation Instructions T-Leg Fixed Height Fixed-top Tables Step 5. Lay the inverted table top on the floor. Position the leg- trough assembly on the underside of the top. Step 6. Align and attach the brackets with the threaded inserts in the top using 10 socket cap head 5/16”-18 x 1”...
