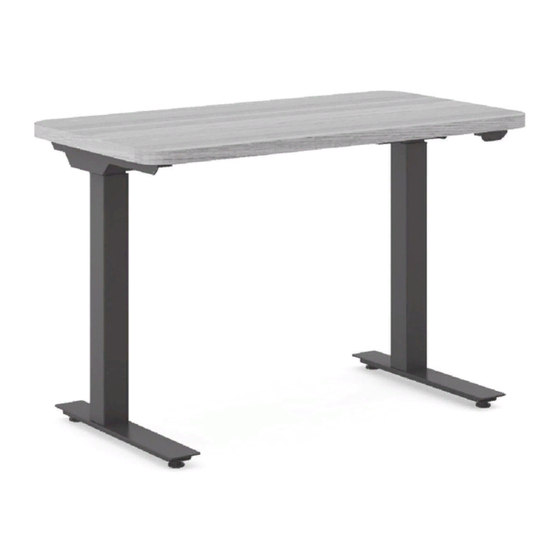

PIXEL™ Installation Instructions
T-Leg Electric Height Adjustable Tables
Glides only
Related tables:
KTXE6036G
KTXE7236G
Unboxing
You should have received your top plus two boxes per table.
Box 1 includes:
T-Leg assemblies, feet castings, electrical controller box and
screws, control switch with cable and screws, leg extension
cables, main power cable, hardware in a red plastic bag, and
installation instructions.
Box 2 includes:
T-Leg rail kit
Please pay close attention to torque requirements.
Step 1.
Lay the inverted table top on the floor.
Step 2.

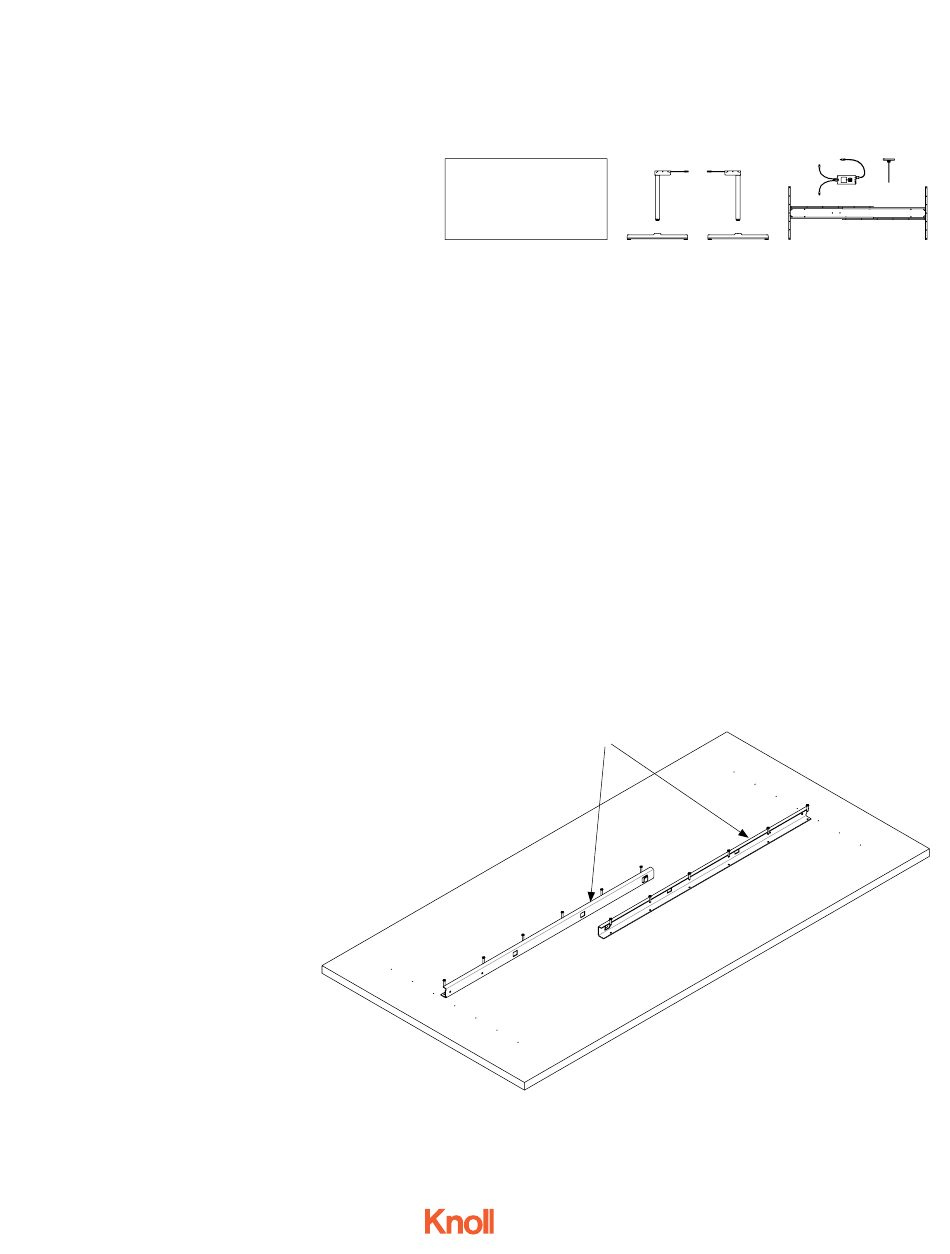

Align the two "C" section rail (A) holes with the top
pilot holes. Attach the rails to the top using pan
head sheet metal #10 x 1.00 screws, 6 screws
per rail, torque: 20 in/lb
4AU6009 - Oct 2015
Page 1 of 6
Parts list
1 Table top
2 T-Leg assemblies
2 Feet castings
1 T-Leg rail kit
1 Electrical controller box
and screws
1 Control switch with cable
and screws
2 Leg extension cables
1 Main power cable
A
Hardware
28 Pan head sheet metal #10 x 1.00 screws
12 Socket button head M6 x 12mm screws
2 Pan head sheet metal #10 x 2.00 screws
8 Socket head cap M6 x 55mm screws
2 Vertical wire management clips
(clear plastic)
4 Horizontal wire management clips
with wood screws
Tools needed
Allen wrenches
Torque wrench
Phillips screwdriver
Fig. 1
