fantastic furniture MILFORD Quick Start Manual

Cupboard 2 door base
Hide thumbs Also See for MILFORD:

Advertisement

Quick Links

Download this manual
V
e
s r
o i
n
1
0 .

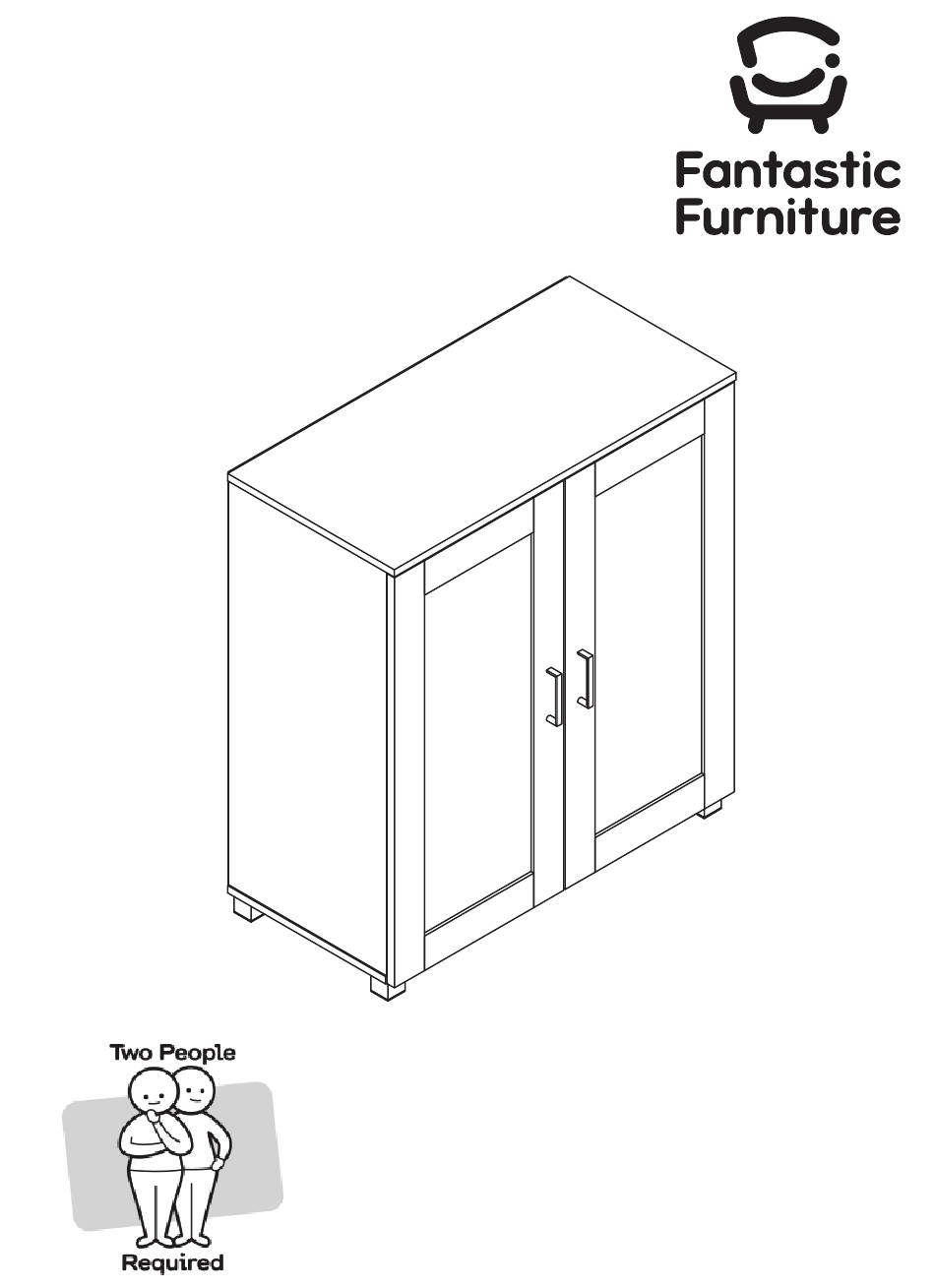

MILFORD
CUPBOARD 2 DOOR BASE
fantasticfurniture.com.au

Advertisement

loading

Related Manuals for fantastic furniture MILFORD

Summary of Contents for fantastic furniture MILFORD

  • Page 1 MILFORD CUPBOARD 2 DOOR BASE fantasticfurniture.com.au...
  • Page 2 fixing device to use. Weight Limit: 20kgs per shelf Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasti cfurni ture fantasticfurniture.com.au Page2...

  • Page 3: Assembly Checklist

    Assembly Checklist Read through the instructions Make sure you have all the required tools. Never use power tools unless instructed. carefully before you begin. Unless instructed, do not fully tighten Identify and lay out all of the components before you begin assembly. screw s until the item is fully assembled.

  • Page 4: What You Need

    What You Need to assemble the product Right Side Panel (P2) Top Panel (P3) Support Panel Back Panel (P5) (P6) Support Panel (P5) Other tools you need Phillips head screwdriver Hammer. Shelf (P7) Le t Side Panel (P1); Le t Side Panel Right Side Panel (P2);...
  • Page 5 Step 1 (H5) (H5) You will need (H5) (H4) (H4) 8 x Screws 4 x Hinges (H5) (H4) (H5) (H8) (H4) 2 x Handles 4 x Screws (H8) (H7) (H8) (P9) x 2 (H7) Phillips head screwdriver Attach 2 x Hinges (H4) to oor (P9 ) as shown with 4 x crews (H5 ) by tightening with the Phillips Head crewdriver.
  • Page 6 Step 3 You will need (H2) (H2) 6 x Cam Bolts Phillips head (H2) (H2) screwdriver (P3) (H2) (H2) (H2) (H2) Attach 6 x Cam Bolts (H2) to Top Panel (P3) by tightening with the Phillips Head Screwdriver. Step 4 (H1) You will need (H1)
  • Page 7 E nsure the raw edge of top Step 5 panel is at the back of the unit (H1) before securing You will need (H2) (H1) (H1) x Cam Nuts Phillips head (H1) screwdriver (P3) (P5) (P1) (H1) (H1) (P5) (P2) Insert 6 x Cam Nuts (H1) into Left &...
  • Page 8 Step 7 You will need (P8) 4 x Screws 1 x A llen K ey (H15) (H16) (H15) (P4 ) (P8) (P8) (H15) (H15) (P8) (H16 ) (H15) (P8) (H16 ) (H15) Attach Feet (P8x4) to Bottom Panel (P4) with 4 x Screws (H15) by tightening with the Allen Key (H16).
  • Page 9 Step 9 You will need 20 x Nails Hammer Align the Back Panel (P6) with the edges of the partially assembled unit. Attach Back Panel (P6) to Left,Right,Top&Bottom Panels (P1,P2,P3&P4) with 20 x Nails (H9) with the the nails are evenly spaced out as shown an are placed approximately 5mm Hammer.Ensure from the edge of the back panel.
  • Page 10 Step 11 You will need (H5) (H4) 8 x Screws Phillips head Screwdriver (H5) (P9) (P2) (H4) (H5) (P1) (P9) (H5) (H4) (H4) (H5) With assistance carefully align the 2 x Hinges (H4) on the Door (P9) to Right Side Panel (P2) and secure with 4 x Screws (H5) by tightening with the Phillips Head Screwdriver.
  • Page 11 Step 13 You will need (P3) (P3) 1 x Wall Strap Screw 1 x Wall Strap (H10) (H11) (H10) (P6) (H11) 1 x Washer (H13) Phillips head (H13) (P6) Screwdriver Attach Wall Strap (H10) to Top Panel (P3) with 1 x Washer (H13) and 1 x Wall Strap Screw (H11) as shown by tightening with the Phillips Head Screwdriver.

  • Page 12: Job Complete

    Job Complete! In the interest of our environment please dispose of all packaging thoughtfully. Page 12 fantasticfurniture.com.au...
