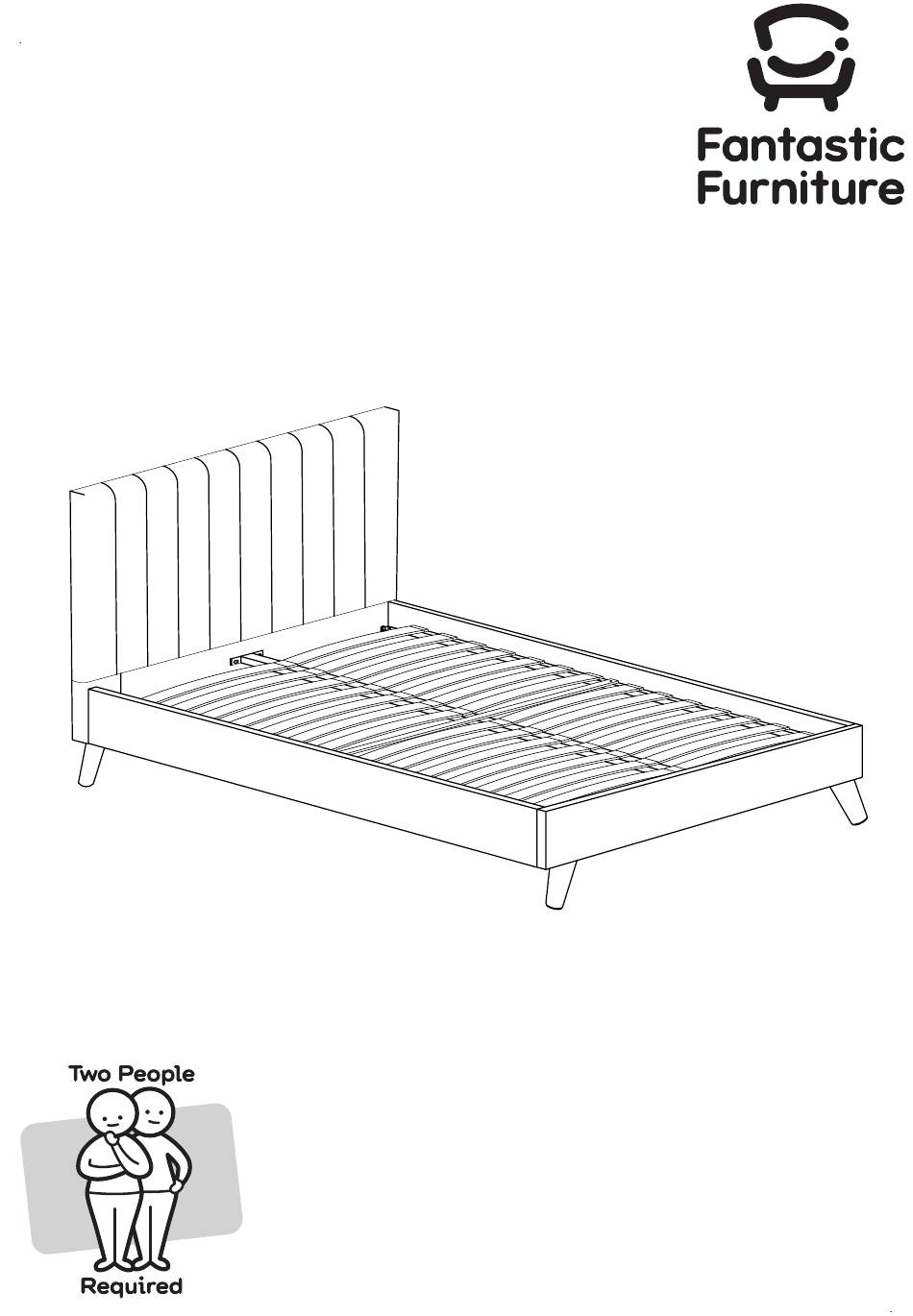

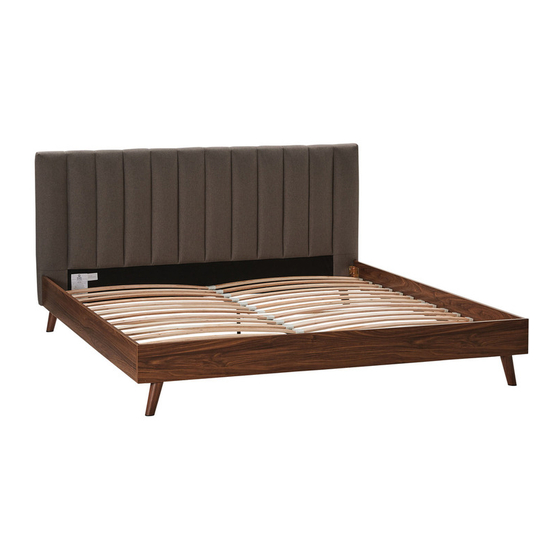

  • Page 1 Version 1.3 Montana Bed Queen /Bed King fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...

  • Page 4: What You Need

    What you need to assemble the product Headboard (P1) Side Rail (P6) Other tools you need: Phillips head screwdriver; Headboard and Footboard Leg(P3) Timber Cross Rail (P5) Side Rail Footboard (P6) (P2) Centre Rail (P7) Footboard Leg Support Wood (P4) Support leg Headboard and Footboard (P8)
  • Page 5 Step 1a You will need Allen Key 6 x Large Bolts 6 x Washers M8 6 x Spring Washer (H4) (H2) (H7) (H8) (H2) (H7) (H8) (P2) (H4) (P4) Attention: (P4) Large hole Small hole Do not screw hardware from this side. Screw hardware from this side.
  • Page 6 Step 1b You will need 4 x Screws Phillips head Screwdriver (not provided) (H5) (P2) (H5) Attention: Large hole Small hole Do not screw hardware from this side. Screw hardware from this side. Screw the 4 x Screws (H5) by using a phillips head screwdriver (not provided).
  • Page 7 Step 2 You will need Allen Key 8 x Medium Bolts 8 x Washers M8 (H2) (H3) (H4) (P3) (H4) (H3) (H2) (P4) (P3) (P1) (H4) (H3) (H2) (P2) Attach 4 x legs (P3) to the bottom of headboard (P1) and footboard leg support wood (P4) with 8 x Medium Bolts (H3) and 8 x washers (H4) by using allen key (H2).
  • Page 8 Step 3 You will need Allen Key 8 x Small Bolts (H2) (H1) (H1) (P1) (P6) (H2) (P6) (P2) Install 8 x bolts (H1) to the brackets of the headboard (P1) and footboard (P2) by using allen key (H2) as shown, do not tighten the bolts and keep them 8mm loose. Then attach side rails (P6) to headboard (P1) and footboard (P2) by slotting the bracket on the side rails (P6) over the bolt as shown.
  • Page 9 Step 5 You will need Allen Key 4 x Washers M8 4 x Medium Bolts 4 x Spring Washer (H2) (H4) (H3) (H8) You must use. (P1) (H2) (P7) (H4) (H3) (H8) (P6) (P7) (P6) (P2) Adjust to be 10mm gap from floor to the bottom of support legs.
  • Page 10 Step 6 You will need 28 x End 14 x Centre Connectors Connectors (P10) (P10) (P9) (P9) (P9) 28 x Slats (P11) Push 2 end connectors (P9), 2 pcs slats (P11) and a centre connector (P10) together. Insert the full slat into the side rail and centre rail one by one. Sometimes it makes it easier to line up the hole if you press down in the middle of the slat to flatten it out.
  • Page 11 Repeat for every bed slat until finished. Step 7 You will need Allen Key 2 x Screws (H2) (H5) (H5) (H2) (P5) Phillips head (P1) 1 x Felt Pad Screwdriver (H6) (not provided) Make sure screws are fully tightened. (P6) (P2) (P5) (H6)

  • Page 12: Job Complete

    Step 8 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 12...

This manual is also suitable for:

Montana bed king
