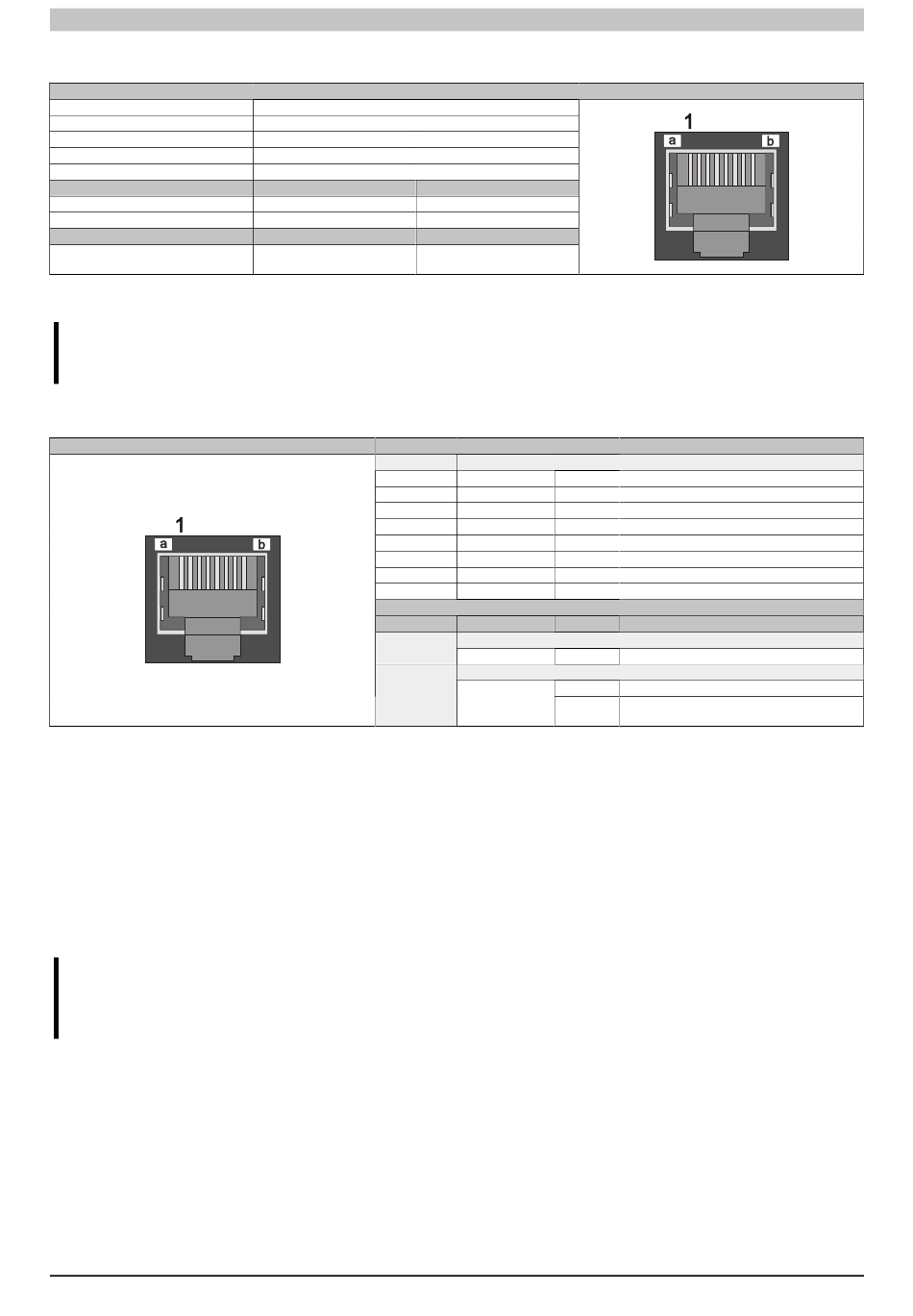

4.7.8 Ethernet interface (IF2)

Variant
Controller
Wiring
Transfer rate
Cable length
LED "Speed" (a)
Green
Orange (dark)
LED "Link" (b)
Orange (light)
1) Switching takes place automatically.
2) The 10 Mbit/s transfer rate / connection is only available if LED "Link" is active at the same time.
Information:
This Ethernet interface (IF2) is not suitable for POWERLINK.

4.7.9 POWERLINK interface (IF1)

Figure
POWERLINK V2 mode
By default, the POWERLINK interface is operated as a managing node (MN). In the managing node, the node
number is set to a fixed value of 240.
If the POWERLINK node is operated as a controlled node (CN), a node number from 1 to 239 can be set in the
POWERLINK configuration in Automation Studio.
Ethernet mode
In this mode, the interface is operated as an Ethernet interface. The INA2000 station number is set using the B&R
Automation Studio software.
Information:
If interface IF1 is operated in Ethernet mode, then this interface receives its own IP address and works
independently of Ethernet interface IF2.
Power Panel C80 User's manual V1.02
ETH1
RJ45, female
Intel I210
S/STP (Cat 5e)
10/100/1000 Mbit/s
Max. 100 m (min. Cat 5e)
On
100 Mbit/s
1000 Mbit/s
On
Link (a connection to an
Ethernet network exists)
Terminal
1
2
3
4
5
6
7
8
LED
LNK (a)
ACT (b)
1)
Off
10 Mbit/s
2)
-
Active
Blinking (data be-
ing transferred)
Pinout
Ethernet
RXD Receive data
RXD\ Receive data\
TXD Transmit data
Termination
Termination
TXD\ Transmit data\
Termination
Termination
Diagnostic LED status indicators
Color Status Description
Link
Green On Link established to an Ethernet network.
Activity
Orange On No Ethernet activity taking place.
Blinking Ethernet activity taking place (data being
transferred).
Device description
33
