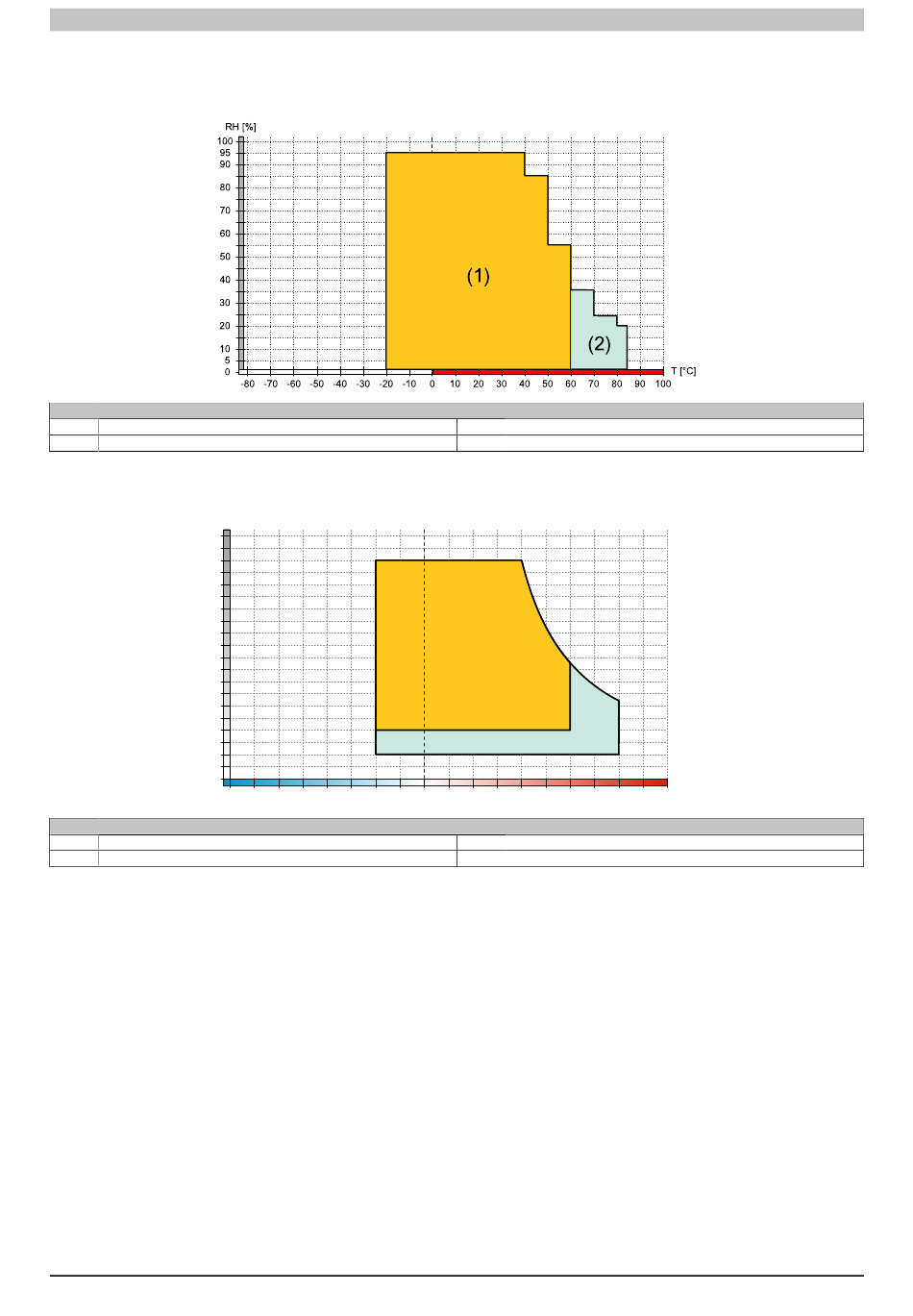

4.4 Temperature/Humidity diagrams

5.7" variants
(1) Operation
(2) Storage and transport
7.0" variants
RH [%]
100
95
90
85
80
75
70
65
60
55
50
45
40
35
30
25
20
15
10
5
0
(1) Operation
(2) Storage and transport
Power Panel C80 User's manual V1.02
-80 -70 -60 -50 -40 -30 -20 -10
Diagram legend
T [°C] Temperature in °C
RH [%] Relative humidity (RH) in percent and non-condensing
(1)
(2)
0 10 20 30 40 50 60
Diagram legend
T [°C] Temperature in °C
RH [%] Relative humidity (RH) in percent and non-condensing
