Wiring Diagram - Lippert Components Innolight Sliding Installation And Owner's Manual

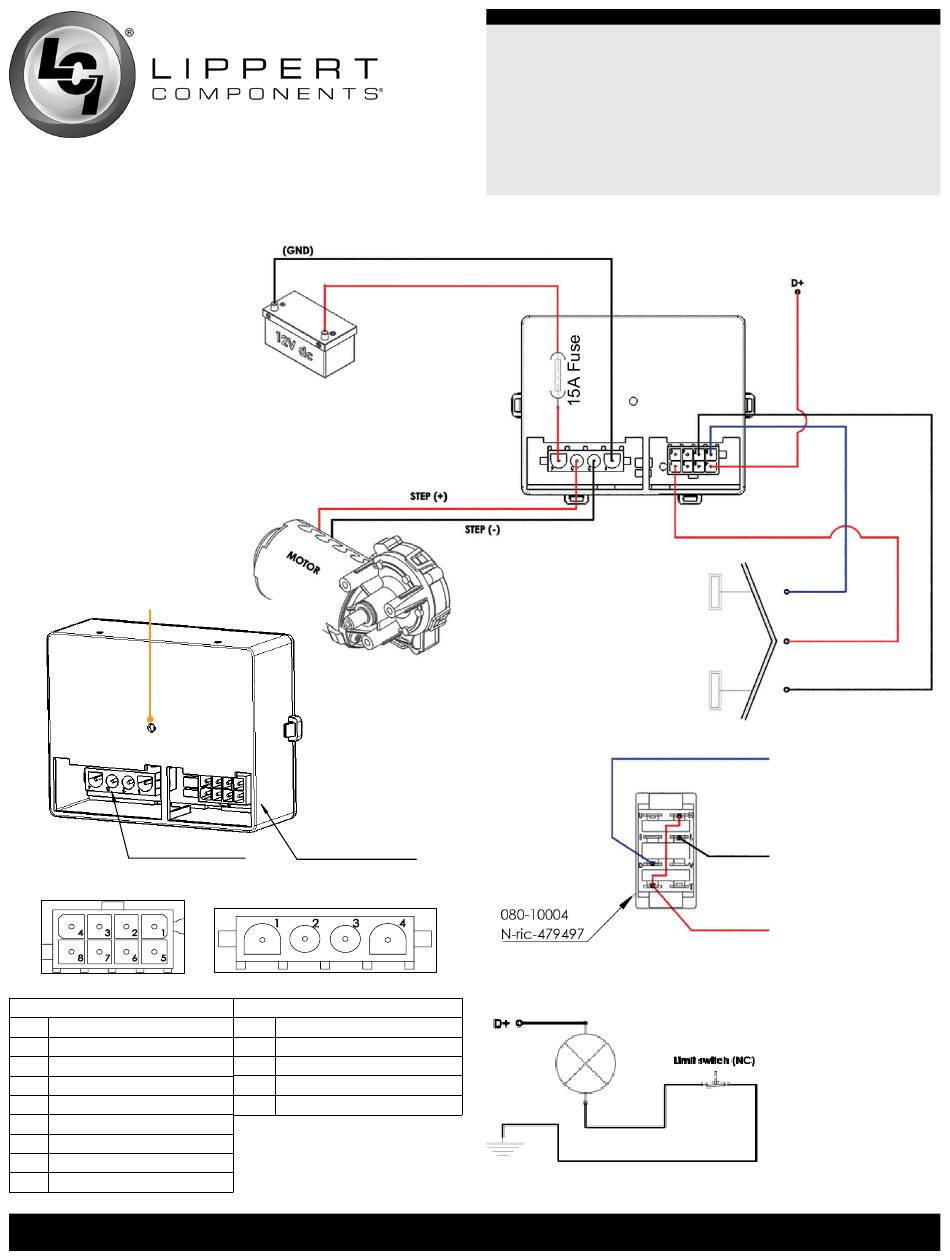

Wiring Diagram

adjustment screw
"B" connector
"A"
"A" CONNECTOR
Pin N° Description
1 Button common (+12 V)
2 --
3 --
4 D +
5 --
6 --
7 RETURN command
8 EXIT command
lci1.com
+12V DC
"A" connector
"B" CONNECTOR
Pin N° Description
1 (-GND)
2 motor -
3 motor +
4 +12 V dc
574-537-8900
Innolight Sliding
Electric Step
Installation and Owner's Manual
(For Aftermarket Applications)
Command
Command
"B"
7
Common Button (+12V)
EXIT
RETURN
Command
EXIT
Command
RETURN
Common Button (+12V)
Step Open:
Light on when the
vehicle is switched
on or buzzer in
operation
Caution:
The buzzer must
be filtered.
CCD-0002550 Rev: 11.18.19
