- Page 1 OneControl Hotspot (Prepped) ® ™ OEM INSTALLATION MANUAL...
-
Page 2: Table Of Contents
Preparation Installation Notes Introduction This document provides instructions for the installation of an OneControl Hotspot prep kit. The installed kit is intended as an optional upgrade for RV owners. Safety Read and understand all instructions before installing or operating this product. Adhere to all safety labels. -
Page 3: Resources Required

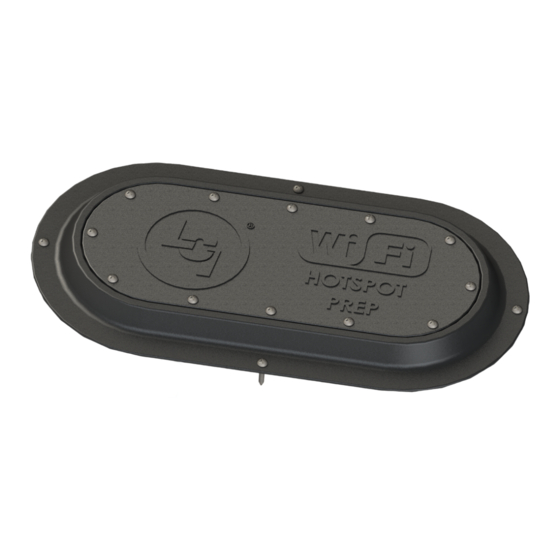

Moving parts can pinch, crush or cut. Keep clear and use caution. Resources Required • 1-2 people, depending on the task • Tape measure • Cordless or electric drill or screw gun • Straightedge • Appropriate drill bits • Non-permanent marking method •... - Page 4 Locate an area within the unit where the internal prep plate (Fig. 1A) can best be mounted. NOTE: Keep in mind when installing the internal prep plate that the future install of the Hotspot system will need to be installed on a flat surface area and be located within 12" of the internal prep plate. Fig.
- Page 5 Loosely place the internal prep plate assembly (Fig. 3) into the access hole. A. Connect the electrical wires of the DC jack harness (Fig. 3A) to the power and ground circuitry. B. Let the internal prep plate and DC jack harness lay loose across the access hole. Fig.
- Page 6 Measure and mark the same distance in step 5E on the trace outline of the roof's surface. Measure from the bottom side up towards the center, mark the location on the roof's surface. Before any cuts are made to the roof of the unit: A.
- Page 7 Apply all-weather silicone sealant (Fig. 7A—green line) to the underside of the external cellular antenna prep plate, around the entire outer lip. Do not leave any gaps in the sealant to ensure a good seal to the mounting surface. Fig. 7 10.
- Page 8 13. Feed the two cellular antenna coaxial cables through the unit and into the internal prep plate access hole. 14. Attach each coaxial cable to a coaxial bulkhead connector located on the back of the internal prep plate (Fig. 10A). Fig.
-
Page 9: Notes
Notes Page 9 Rev: 01.15.20 CCD-0002221... - Page 10 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
