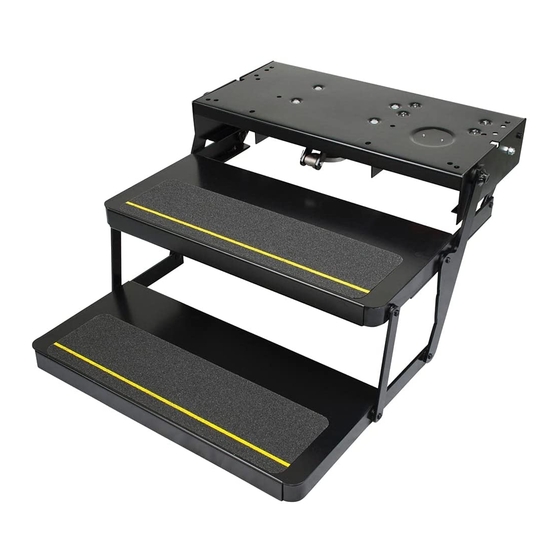

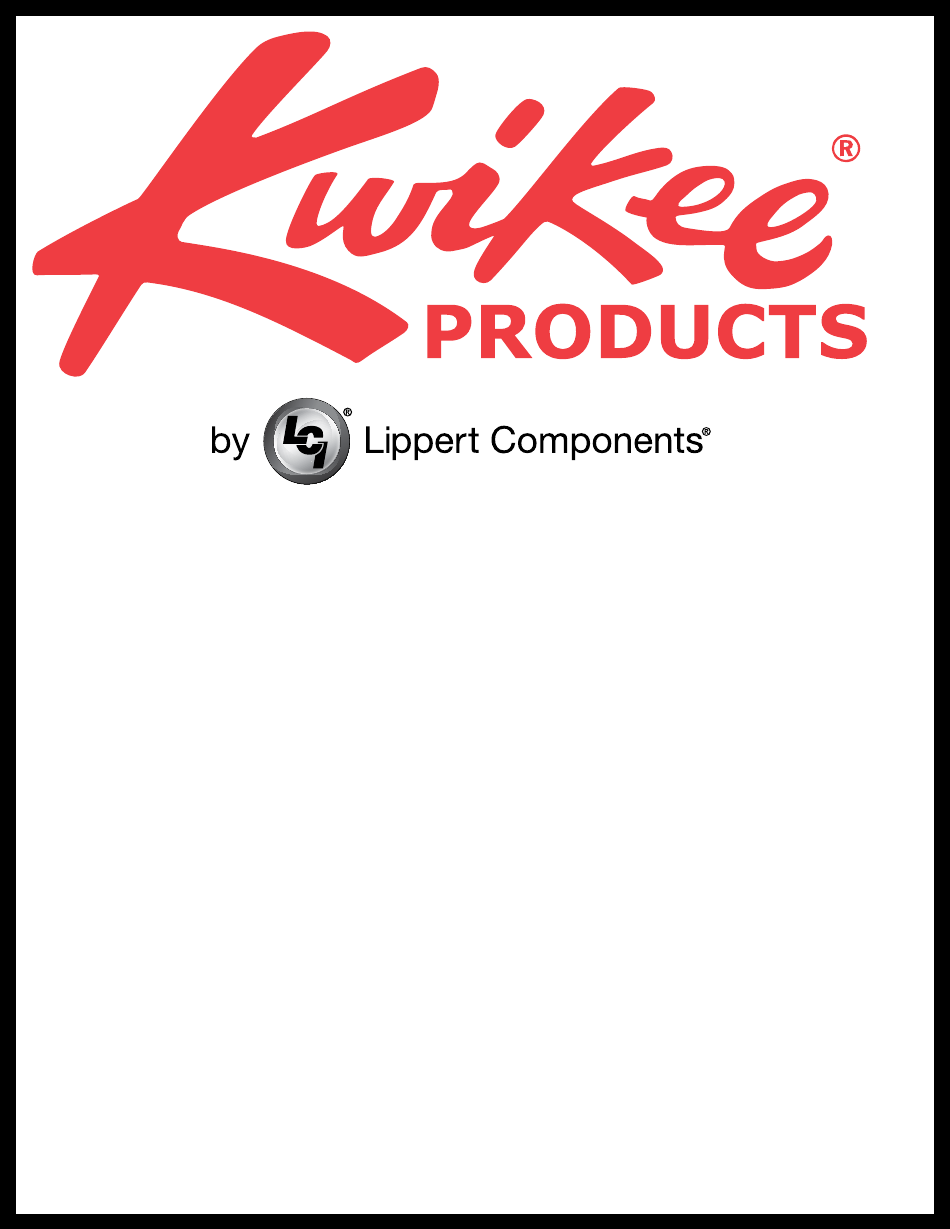

- Page 1 Kwikee Electric Step OEM INSTALLATION MANUAL ®...
-
Page 2: Table Of Contents
This manual does not apply and should not be used as a reference to previous versions of a Kwikee® Electric Step. The control unit is a current sensor as well as a switching device. When the motor assembly moves the step tread to its extended position, or stops moving because of an obstruction such as a curb or the binding of a damaged or bent step frame, the motor draws a larger amount of current. -
Page 3: Resources Required
Moving parts can pinch, crush or cut. Keep clear and use caution. Always wear eye protection when performing service, maintenance or installation procedures. Other safety equipment to consider would be hearing protection, gloves and possibly a full face shield, depending on the nature of the task. Resources Required •... - Page 4 Install warning sticker in a visible location on the inside of the door (Fig. 8). The yellow warning sticker reads: "This vehicle is equipped with a Kwikee automatic electric step. Turning the ignition switch to the "ON" position while the vehicle is parked will cause the step to retract. Visually confirm that the step is fully extended prior to exiting the vehicle.
-
Page 5: Wiring Diagram For
Understep light Wiring Diagram for (not available on all step models) Step with Control Unit Motor assembly 12 AWG green ground to step top 12 AWG green ground wire must be securely attached to the chassis for step to operate Two-way connector Fuse block... -
Page 6: Operation
Operation Stepping on a partially extended step may cause damage to the step frame. Do not use the step until the step is fully extended. If the vehicle is driven with the step in the extended position, product and/or property damage may occur. Step with Control Unit After the installation is complete and with the entrance door open, turn the step override switch to the off position. -
Page 7: Troubleshooting
Troubleshooting The 12V DC automotive battery contains sulfuric acid which can cause severe burns. Avoid contact with the skin, eyes and clothing. The automotive battery also produces hydrogen gas which is explosive. Keep cigarettes, open flames and sparks away from the battery at all times. Keep fingers, arms, and legs clear of step mechanism while performing these tests. - Page 8 The contents of this manual are proprietary and copyright protected by Lippert Components, Inc. (“LCI”). LCI prohibits the copying or dissemination of portions of this manual unless prior written consent from an authorized LCI representative has been provided. Any unauthorized use shall void any applicable warranty. ...
