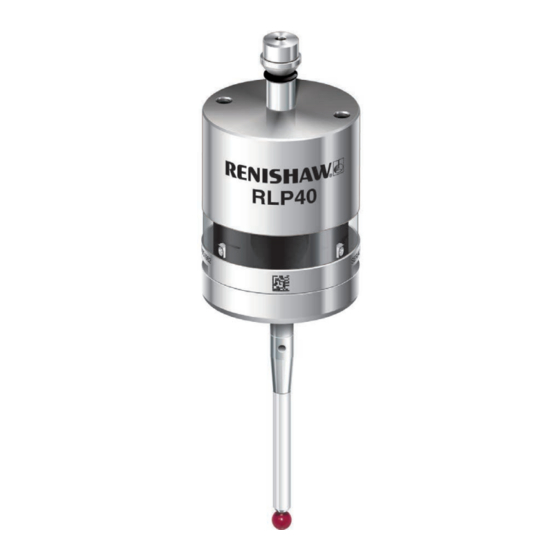

Renishaw RLP40 Quick Start Manual
  1. Manuals
  2. Brands
  3. Renishaw Manuals
  4. Industrial Equipment
  5. RLP40
  6. Quick start manual

Renishaw RLP40 Quick Start Manual

Hide thumbs Also See for RLP40:

Advertisement

Quick Links

Download this manual
Quick-start guide
H-6588-8500-06-A
RLP40

Advertisement

loading
Need help?

Need help?

Do you have a question about the RLP40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renishaw RLP40

Summary of Contents for Renishaw RLP40

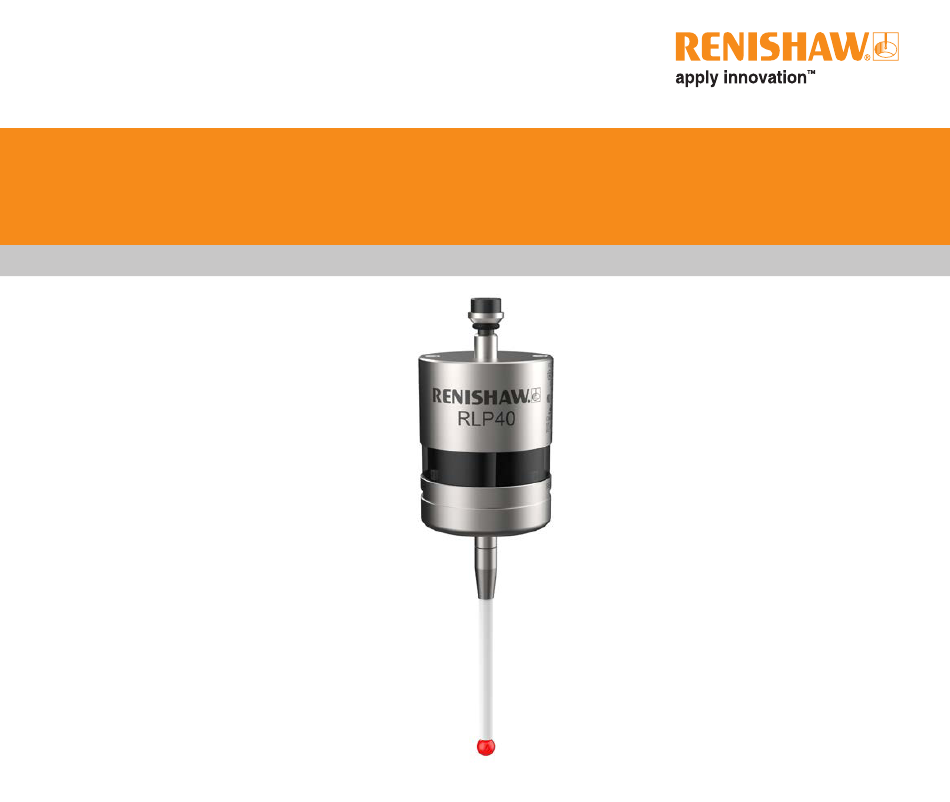

  • Page 1 Quick-start guide H-6588-8500-06-A RLP40...
  • Page 2 Publications for this product are available by scanning the barcode or visiting www.renishaw.com/rlp40. Weitere Informationen zu diesem Produkt sind unter folgendem Link www.renishaw.de/rlp40 abrufbar. Las publicaciones para este producto están disponibles a través de www.renishaw.es/rlp40. Les documentations pour ce produit sont disponibles en visitant le site www.renishaw.fr/rlp40.
  • Page 3 Publikacje dotyczące tego produktu są dostępne w witrynie www.renishaw.pl/rlp40. Dokumentaci k produktu najdete na www.renishaw.cz/rlp40. Документация по данному изделию доступна на сайте www.renishaw.ru/rlp40. 中文 請訪問雷尼紹網站以獲得此產品的的相關文件檔案: www.renishaw.com.tw/rlp40。 (繁體) 中文 请访问雷尼绍网站以获得此产品的相关文档 www.renishaw.com.cn/rlp40。 (简体) 한국어 이 제품의 관련 자료는 www.renishaw.co.kr/rlp40 에서 확인 가능 합니다.
  • Page 4 This page is intentionally left blank.
  • Page 5 To reduce the risk of potential negative effects on the environment and human health shipment delays, if you need to return the RLP40 to Renishaw for which could otherwise arise from inappropriate waste handling.
  • Page 6 In all applications involving the use of machine tools, eye protection is recommended. If this equipment is used in a manner not specified by the The RLP40 has a glass window. Handle with care if broken to manufacturer, the protection provided by the equipment may be avoid injury.
  • Page 7 Batteries ½ AA (3.6 V) lithium-thionyl chloride × 2 ×  Saft LS 14250 Dubilier SB-AA02 Tadiran Maxell SL-750 ER3S Xeno XL-050F Sanyo CR 14250 SE Tadiran SL-350, SL-550, TL-4902, TL-5902, TL-2150, TL-5101 Varta CR ½ AA...

  • Page 8: Fitting The Stylus

    Fitting the stylus 1,8 Nm – 2,2 Nm (1.3 lbf.ft – 1.6 lbf.ft) M-5000-3707...
  • Page 9 CAUTION Please remove the battery isolation device from the battery compartment before use. ¬ Take care not to short the battery contacts as this may be a fire hazard. Ensure the contact strips are located securely.. ¬...
  • Page 10 Configuring the probe Probe settings can be reviewed and configured by using the Opti Logic technique or Trigger Logic™ technique. The Probe Setup app enables the application of Opti Logic and provides interactive instructions and informative videos to apply Trigger Logic to review and configure settings and to partner the probe.
  • Page 11 Configuring the probe with Opti Logic Opti Logic is accessed via the Probe Setup app. For full details about Opti Logic, refer to the Probe Setup app which is available for download on the App Store or Google Play.
  • Page 12 Reviewing the probe settings Key to the symbols LED short flash > 5 s LED long flash LED check Switch-on method Radio on Spin on (omitted if “Multiple probe mode” was selected) Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off 12 s...
  • Page 13 Hibernation mode setting (RMI-Q using “radio on” only) 30 s Multiple probe mode (RMI-Q only, omitted for “radio on”) (see “Multiple probe mode settings” to view all 16 choices) Mode off Mode on Machine 1 Machine 2 Machine 16 Battery status Battery good Battery low Probe in standby mode (after 5 seconds)
  • Page 14 Multiple probe mode settings (RMI-Q application only) Multiple probe mode Mode off Mode on Machine 1 Machine 2 Machine 3 Machine 4 Machine 5 Machine 6 Machine 7 Machine 8 Machine 9 Machine 10 Machine 11 Machine 12 Machine 13 Machine 14 Machine 15 Machine 16...
  • Page 15 This page is intentionally left blank.
  • Page 16 Probe partnering function Using Trigger Logic™ the probe partnering function enables the probe to be partnered with RMI-Q or RMI-QE. > 5 s LED check Key to the symbols LED short flash LED long flash Deflect the stylus for less than 4 seconds to move to the next menu option.
  • Page 17 Whilst the “Battery status” is being displayed, deflect and release the stylus to enter “Partnering mode off”. Probe status will flash red to acknowledge this. Battery status Battery good Battery low At this point turn on either the RMI-Q or RMI-QE. With RMI-Q switched on After 8 Partnering mode...
  • Page 18 With RMI-QE switched on After 8 seconds Partnering mode 120 seconds probe in standby if Partnering mode off RMI-QE is turned off RMI-QE Partnering mode Partnering mode off Partnering mode on (RMI-QE found) 120 seconds probe in standby 20 seconds probe in standby If partnering is unsuccessful “Partnering mode off”...
  • Page 19 This page is intentionally left blank.
  • Page 20 RLP40 – RMI-Q partnership System set-up can be achieved by using Trigger Logic™. Partnering mode Partnering mode off Switch on the RMI-Q   SYSTEM STATUS LED SYSTEM STATUS LED RMI-Q in “Partnering RMI-Q in “Partnering mode” with empty mode” with full probe...
  • Page 21 New RMP partnered Displayed for 5 seconds NOTE: Please refer to the RMI-Q radio machine interface installation guide (Renishaw part no. The probe is in standby and the H-5687-8504) when partnering up to four RMPs. system is ready for use.
  • Page 22 RLP40 – RMI-QE partnership System set-up can be achieved by using Trigger Logic™. Partnering mode Partnering mode off Switch on the RMI-Q   SYSTEM STATUS LED SYSTEM STATUS LED RMI-Q in “Partnering RMI-Q in “Partnering mode” with empty mode” with full probe...
  • Page 23 Displayed for 5 seconds The probe is in standby and the NOTE: Please refer to the RMI-QE radio system is ready for use. machine interface installation guide (Renishaw part no. H-6551-8501) when partnering up to four RMPs. > 20 s...
  • Page 24 Changing the probe settings (when using with a RMI-Q) Probe settings can be changed using Trigger Logic™. > 5 s LED check Deflect the stylus and hold it deflected Key to the symbols until after the battery status has been displayed at the end of the review LED short flash sequence.
  • Page 25 Switch-on method Radio on Spin on (omitted if “Multiple probe mode” was selected) Switch-off method Radio off or Short timeout Medium timeout Long timeout Spin off 12 s 33 s 134 s Trigger filter Level 1 Level 2 Level 3 (off) (10ms) (20 ms)
  • Page 26 Partnering mode Partnering Partnering Partnering successful, mode off mode on 20 seconds probe in standby 120 seconds, probe in standby After 8 seconds Hibernation mode setting (“radio on”only) 30 s Stop triggering here, unless “Multiple probe mode” is required, in which case deflect the stylus for more than 4 seconds.
  • Page 27 Further probes require the same “Multiple probe mode” setting, but there is no need to be partnered with the RMI-Q. To partner an RLP40 with an RMI-Q see RLP40 – RMI-Q partnership. Once partnering has been successful, the RLP40 will revert to...
  • Page 28 Changing the probe settings (when using with a RMI-QE) Probe settings can be changed using Trigger Logic™. > 5 s LED check Key to the symbols Deflect the stylus and hold it deflected LED short flash until after the battery status has been displayed at the end of the review LED long flash sequence.
  • Page 29 (off) (10ms) (20 ms) New settings Return to “Switch-on method” complete, NOTE: probe in standby To partner an RLP40 with an RMI-QE see RLP40 – RMI-QE partnership. Once partnering has been successful, the RLP40 will revert to “Partnering mode off”.
  • Page 30 Mounting the probe on a shank 2 mm A/F × 2 × 2 2 mm A/F × 4 × 4...
  • Page 31 × 2 0,5 Nm – 1,5 Nm (0.4 lbf.ft – 1.1 lbf.ft)

  • Page 32: Stylus On-Centre Adjustment

    Stylus on-centre adjustment < ±20 μm × 4 × 4...
  • Page 33 Stylus on-centre adjustment Adjust in Y axis. < ±20 μm × 4 × 4...
  • Page 34 < ±20 μm × 2 1,5 Nm – 2,2 Nm (1.1 lbf.ft – 1.6 lbf.ft) × 4...

  • Page 35: Stylus Trigger Force And Adjustment

    Stylus trigger force and adjustment 2 mm A/F −N...
  • Page 36 This page is intentionally left blank.
  • Page 37 Cleaning Use a clean cloth.
  • Page 38 RMI-Q visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Partnering/clearing pending, full and no M-code...
  • Page 39 RMI-QE visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Partnering/clearing pending, full and no M-code...
  • Page 40 This page is intentionally left blank.

  • Page 41: Warranty

    Trade marks China RoHS RENISHAW and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United For more information on China RoHS visit: Kingdom and other countries. apply innovation and names and www.renishaw.com/mtpchinarohs...

  • Page 42: Eu Declaration Of Conformity

    1907/2006 (“REACH”) relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH Renishaw plc declares under its sole responsibility that the RLP40 FCC Information to user (USA only) is in conformity with all relevant Union legislation.
  • Page 43 Patents Features of and features of similar products are RLP40 the subject of one or more of the following patents and/ or patent applications: US 6776344 CN 100466003 IN 215787 CN 101287958 WO 2004/057552 US 6941671 CN 101482402 WO 2007/028964...
  • Page 44 • 请勿吞咽电池。 www.renishaw.com.cn • 请将电池放在儿童无法接触的地方。 • 请将电池放在儿童无法接触的地方。 安全须知 • 不要将新旧电池或不同的电池类型混用，因为这会缩短电池寿 用户须知 命并损坏电池。 • 在运输电池或本产品时，请确保符合国际和国家电池运输条例。 RLP40配有两节非充电型½ AA锂亚硫酰氯电池（符合BS EN 62133:2013 [IEC 62133:2012] 标准）。电池电量耗尽之后，请勿 在运输电池或本产品时，请确保符合国际和国家电池运输条例。 尝试给电池充电。 注： 锂电池被定义为危险品，空运有严格的控制。为了减少运输 延期的风险，无论出于何种原因，若您需要将产品返回RLP40雷尼 绍，请勿包含任何电池。 在电池、包装或随附文档上使用本符号，表示废旧电池不可与普通 生活垃圾混合。 请在指定的收集点处置废旧电池。 这样可以防止 由于废品处理不当对环境和人类健康造成的潜在不良影响。 请联 系当地相关政府部门或废品处置服务商，了解电池的单独回收与处 置规定。 在处置前，必须使所有的锂电池和充电电池完全放电或 采取防短路措施。 请确保备用电池型号正确，并按照本手册 中的说明和产品上所示 进行安装。（雷尼绍文档编号H-6588-8512），了解更多信息。 有...
  • Page 45 在所有涉及使用机床的应用中，建议采取保护眼睛的措施。 RLP40有一个玻璃窗口。如果玻璃破碎，请务必小心，以免受伤。 机床供应商/安装商须知 机床制造商有责任确保用户了解操作中存在的任何危险，包括雷尼 绍产品说明书中所述的危险，并应确保提供充分的防护装置和安全 联动装置。 在某些情况下，测头信号可能错误指示测头已复位状态。切勿单凭 测头信号来停止机床运动。 设备安装商须知 雷尼绍所有设备的设计均符合相关的EU和FCC监管要求I为使产品 按照这些规定工作，设备安装商有责任保证遵守以下指导原则： • 任何接口的安装位置必须远离任何潜在的电噪声源，如变压器、 伺服系统驱动装置等； • 所有0伏/接地连接都应当连接到机床接地终端上（“接地终端” 是所有设备地线和屏蔽电缆的单点回路）。这一点非常重要，不 遵守此规定会造成接地之间存在电位差； • 所有屏蔽装置都必须按使用说明书中所述进行连接； • 电缆线路不得与电机电源电缆等高电流源并行或靠近高速数据 传输线； • 电缆长度应始终保持最短。 设备操作 如果设备使用方式与制造商要求的方式不符，设备提供的保护功能 可能会减弱。...

  • Page 46: Radio Approvals

    Radio approvals Canada: RLP40QE IC ID: 3928A-RMP40QE Japan: RLP40QE 205-200013 RLP40HQE IC ID: 3928A-RMP40QE This device complies with Industry Canada licence- RLP40HQE 205-200013 exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause This device is granted pursuant to the Japanese Radio interference, and (2) this device must accept any Law and the Japanese Telecommunications Business...
  • Page 50 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-6588-8500-06*...
