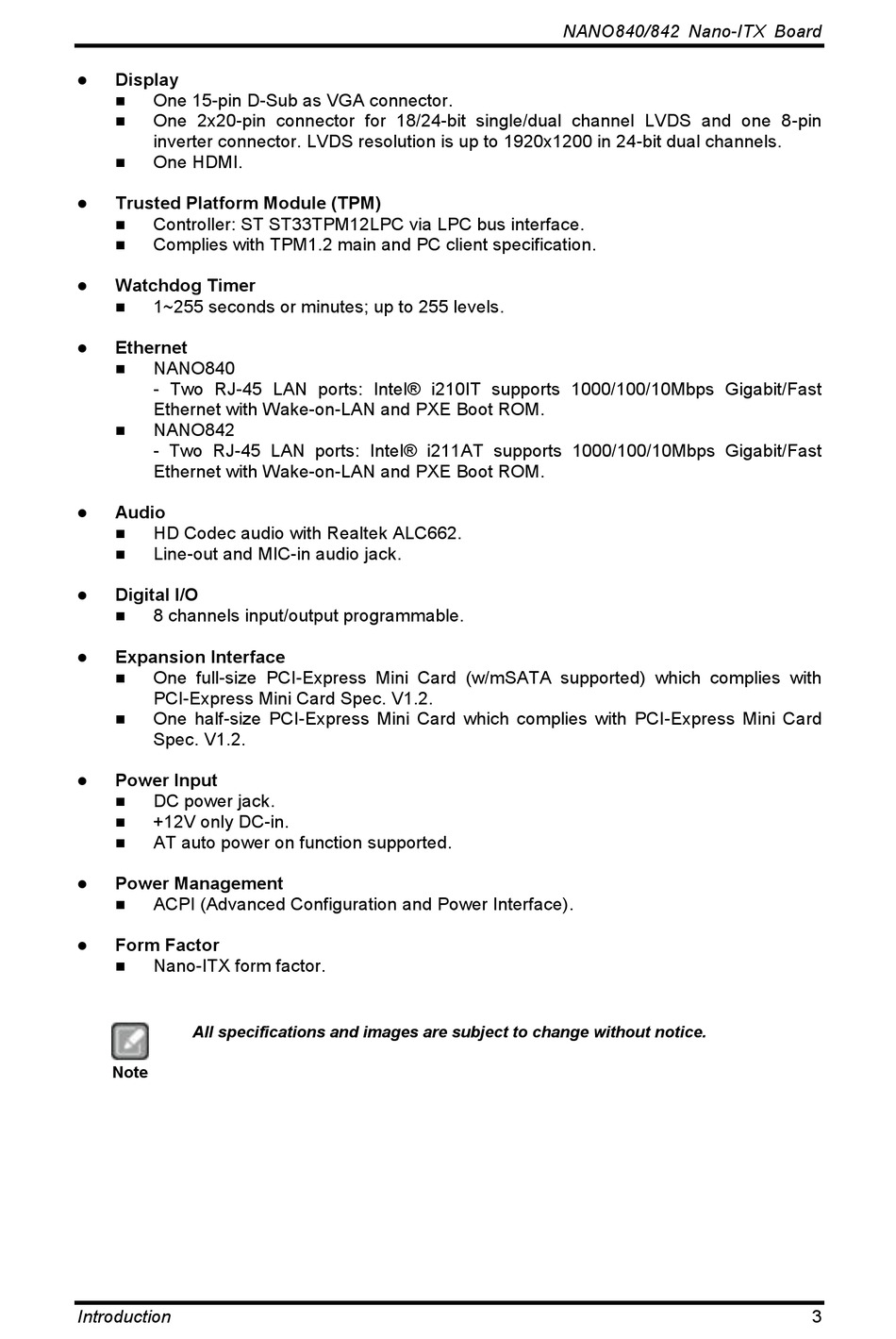

AXIOMTEK NANO840 User Manual page 9

 Display
 One 15-pin D-Sub as VGA connector.
 One 2x20-pin connector for 18/24-bit single/dual channel LVDS and one 8-pin
inverter connector. LVDS resolution is up to 1920x1200 in 24-bit dual channels.
 One HDMI.
 Trusted Platform Module (TPM)
 Controller: ST ST33TPM12LPC via LPC bus interface.
 Complies with TPM1.2 main and PC client specification.
 Watchdog Timer
 1~255 seconds or minutes; up to 255 levels.
 Ethernet
 NANO840
- Two RJ-45 LAN ports: Intel® i210IT supports 1000/100/10Mbps Gigabit/Fast
Ethernet with Wake-on-LAN and PXE Boot ROM.
 NANO842
- Two RJ-45 LAN ports: Intel® i211AT supports 1000/100/10Mbps Gigabit/Fast
Ethernet with Wake-on-LAN and PXE Boot ROM.
Audio

 HD Codec audio with Realtek ALC662.
Line-out and MIC-in audio jack.

 Digital I/O
 8 channels input/output programmable.
Expansion Interface

 One full-size PCI-Express Mini Card (w/mSATA supported) which complies with
PCI-Express Mini Card Spec. V1.2.
 One half-size PCI-Express Mini Card which complies with PCI-Express Mini Card
Spec. V1.2.
 Power Input
 DC power jack.
 +12V only DC-in.
 AT auto power on function supported.
 Power Management
 ACPI (Advanced Configuration and Power Interface).
 Form Factor
 Nano-ITX form factor.
All specifications and images are subject to change without notice.
Note
Introduction
NANO840/842 Nano-ITX Board
3
