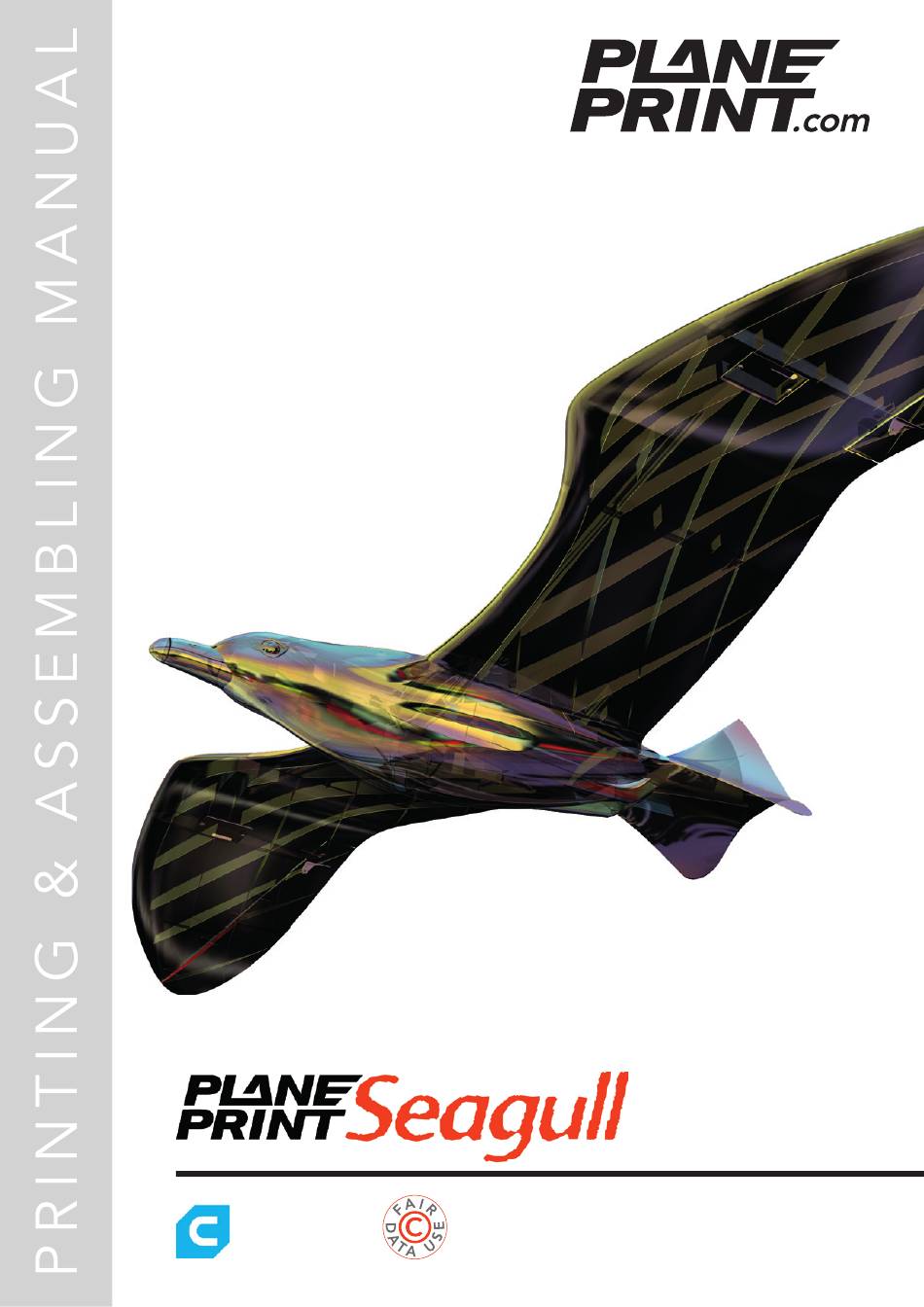

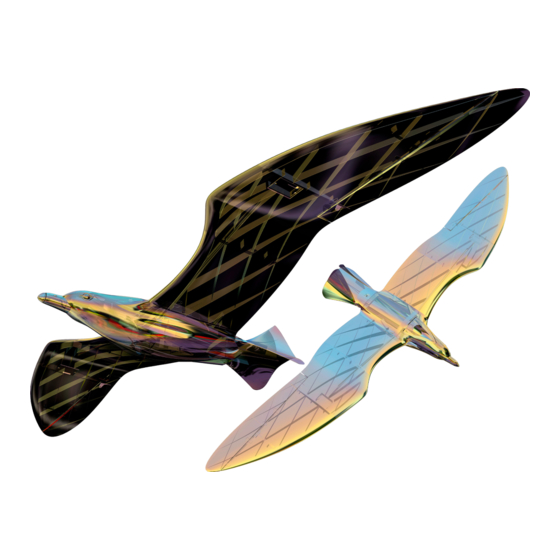

- Page 1 Glider version You can fi nd the STL data NOTE: Slicing only at www.planeprint.com works with CURA!
- Page 2 For this model we need only 4, easy to create profiles. It is important to follow the instructions from PLANEPRINT.com to slice the part correctly. However, it can be useful to perfect your 3D printing by making some additional settings depending on the printer and filament used.
-
Page 3: Additional Settings
Please note the additional settings for the individual parts! Central piece GLIDER_profi le1_sg.stl MATERIAL PLA, Weight: ~ 11 g ADDITIONAL SETTINGS None required Servo mount_profi le1_sg.stl MATERIAL PLA, ~ 7 g ADDITIONAL SETTINGS None required SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT... - Page 4 The following parts must be sliced with the PROFILE P1_FULLBODY. Please note the additional settings for the individual parts! Small parts_profi le1_sg.stl MATERIAL PLA, ~ 4 g ADDITIONAL SETTINGS None required SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 5 Depending on your printer, a brim may not be required. Fuselage 1-GLIDER_profi le3.stl MATERIAL PLA, ~ 45 g ADDITIONAL SETTINGS None required Wingmount-GLIDER_profi le3_sg.stl MATERIAL PLA, ~ 2 g ADDITIONAL SETTINGS None required SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 6 In profi le P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. Cover-GLIDER_profi le3.stl MATERIAL PLA, ~ 7 g ADDITIONAL SETTINGS None required SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 7 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 8 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 9 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 10 The optimal weight and suffi cient strength is achieved with 60 % fl ow. Increase the temperature until the wall thickness is 0.4 to 0.5 mm. (We print at 250° and 60% fl ow). SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 11 MATERIAL TPU ~ A95, Weight: ~ 1 g ADDITIONAL SETTINGS None required Tension belts_profi le4_sg.stl MATERIAL TPU ~ A95, Weight: ~ 2 g ADDITIONAL SETTINGS • Infi ll Density: 100 % SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 12 • small Rod connection, 3 pieces • Neodym Super Magnets 5x5x5mm, 4 pieces • Self adhesive velcro tape Rod connection Tools • Cutter knife • small Philips screwdriver • Drill Ø1.5mm • needle-nose pliers SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 13 • PLANET-HOBBY ECO PLUS • PICCO 8 DIGITAL SERVO • Diamond D47 • Hitec HS 40 Eco Servo 4,8g • Hitec HS-5055MG Maximum dimensions: Maximum dimensions: max. 23 mm max. 13 mm SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 14 GLIDER version LW-PLA...
-
Page 15: Assembling Manual
Then put the flap in the wing and put a drop of CA glue on the hinge. Wait again for the glue to run in, and then spray the activator on it. Do not use too much glue, the flap must move easily! thin SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT... -
Page 16: Fuselage Assembly
Ø6mm*38mm Fuselage assembly thin Pin the parts together and then let thin CA glue run into the gap. Seen from the side: 2 mm Fuselage 2-GLIDER-LW_profi le3_sg.stl Central piece GLIDER_profi le1_sg.stl SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT... - Page 17 Fuselage assembly Assemble the parts as shown in the picture. medium l. Wingmount-GLIDER_profi le3_sg.stl from above medium l. Fuselage 2-GLIDER-LW_profi le3_sg.stl Fuselage 1-GLIDER-LW_profi le3_sg.stl Small parts_profi le1_sg.stl SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
- Page 18 Make sure that the tail moves easily! Bowden Small parts_profi le1_sg.stl Tapping screws Ø2*10mm Tail-LW_profi le3_sg.stl Steel wire Ø0.8mm Steel wire Ø0.8mm 210 mm SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
-
Page 19: Rudder Servo
The holes in the wing must be drilled beforehand. The easiest way to do this is to heat a piece of steel wire with a fl ame to melt the hole for the screw. Cable duct SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT... - Page 20 Attach the wing to the fuselage and tighten the tension belt between the bracket at the front. If the tension belt is too loose, tighten it a little further inside the wing. SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
-
Page 21: Center Of Gravity (Cg)
RC components Use self-adhesive Velcro tape to attach the RC components. Set the exact CG by positioning the battery. Center of Gravity (CG) The aircraft must balance these points. SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT... -
Page 22: Control Direction Test
Turn on the transmitter and connect the battery. When checking the control directions, look at the aircraft from behind. Elevator up Elevator down Aileron left Aileron right Rudder left Rudder right SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT... - Page 23 11 mm, down: 11 mm RUDDER left/right: 30 mm Expo setting (for some remote ELEVATOR 20 % RUDDER controls a minus has to be in front AILERON 20 % of the number) SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT...
-
Page 24: Technical Specifications
Therefore you should not support it behind with your index fi nger (see picture)! TECHNICAL SPECIFICATIONS WINGSPAN 1500 mm/59 inches LENGHT 530 mm/20.8 inches FLIGHT WEIGHT FLIGHT WEIGHT 436 grams 436 grams SEAGULL PRINTING & ASSEMBLING MANUAL GLIDER VERSION © PLANEPRINT... -
Page 25: Age Recommendation
Filaments, printing supplies, hardware or mitter or model. consumables that can not be used after faulty 3D printing will not be replaced by PLANEPRINT.com in any way. Always keep the model in view and under control. Use only fully charged batteries.
