PLANEPRINT EAGLE Printing & Assembling Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EAGLE
NOTE: Slicing only
works with CURA!
You can fi nd the STL data
at www.planeprint.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EAGLE and is the answer not in the manual?

Questions and answers

Related Manuals for PLANEPRINT EAGLE

Summary of Contents for PLANEPRINT EAGLE

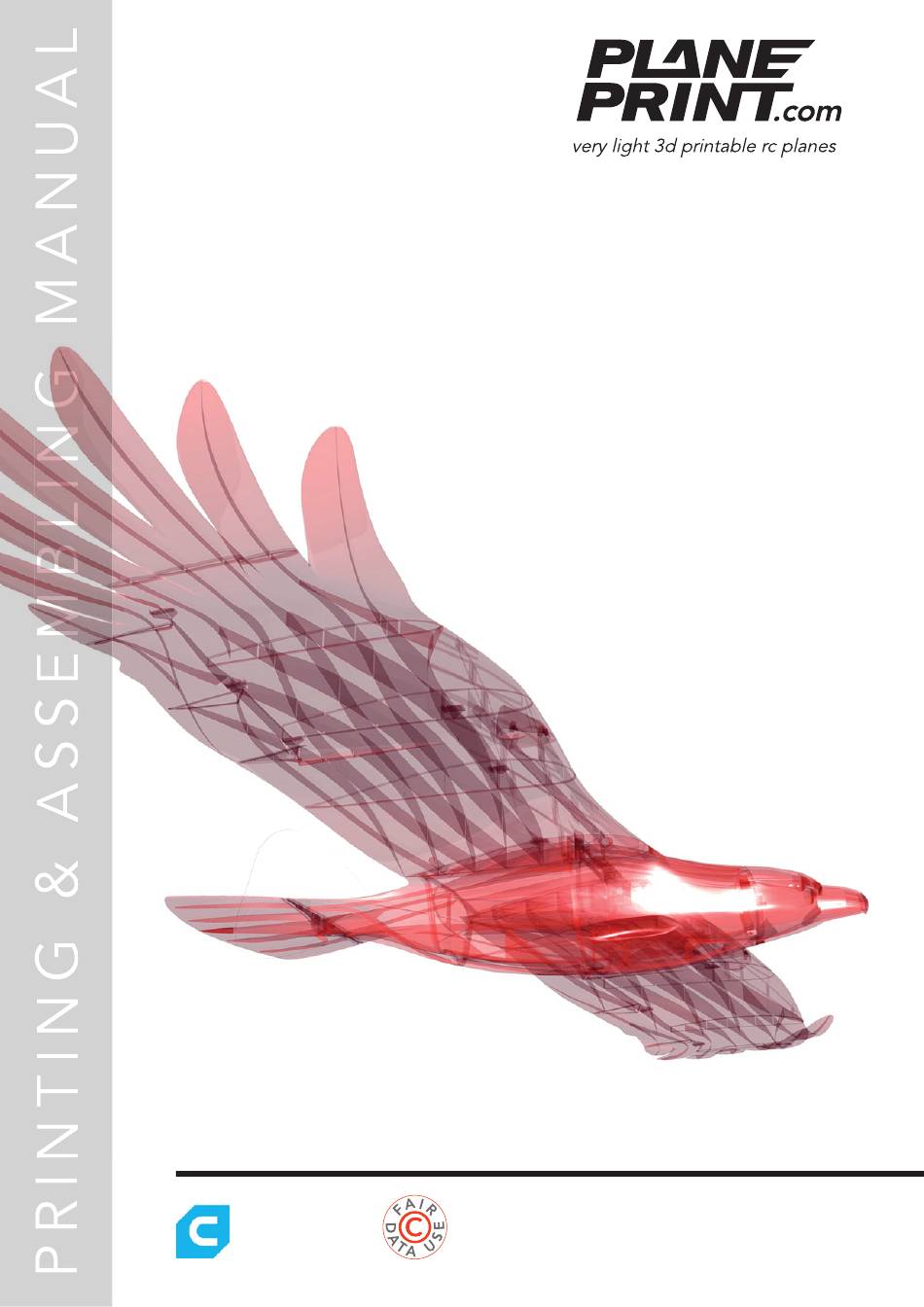

  • Page 1 EAGLE You can fi nd the STL data NOTE: Slicing only at www.planeprint.com works with CURA!
  • Page 2 Our STL files are provided with indelible copyright water- marks that can be verified at any time. Thank you for your understanding and have fun with your PLANEPRINT MODEL! EAGLE PRINTING & ASSEMBLING MANUAL...
  • Page 3 PROFILE P1_FULLBODY The following parts must be sliced with the PROFILE P1_FULLBODY. Please note the additional settings for the individual parts! eagle-Motormount-profile1.stl MATERIAL PLA, Weight: ~ 2 g ADDITIONAL SETTINGS None required eagle-Servomount-profile1.stl MATERIAL PLA, ~ 2 g ADDITIONAL SETTINGS...
  • Page 4 PROFILE P1_FULLBODY The following parts must be sliced with the PROFILE P1_FULLBODY. Please note the additional settings for the individual parts! eagle-Tail hinge-profile1.stl MATERIAL PLA, ~ 7 g ADDITIONAL SETTINGS None required eagle-wingservo_xxx-profile1.stl MATERIAL PLA, ~ 2 g ADDITIONAL SETTINGS...
  • Page 5 PROFILE P1_FULLBODY The following parts must be sliced with the PROFILE P1_FULLBODY. Please note the additional settings for the individual parts! eagle-Parts-profile1.stl MATERIAL PLA, ~ 5 g ADDITIONAL SETTINGS None required EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 6 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Head-profile3.stl MATERIAL PLA, ~ 28 g...
  • Page 7 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Body1-profile3.stl MATERIAL PLA, ~ 88 g...
  • Page 8 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Wing2-left/right-profile3.stl MATERIAL PLA, ~ 33 g...
  • Page 9 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Servocovers-profile3.stl MATERIAL PLA, ~ 2 g...
  • Page 10 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Body2_LW-profile3.stl MATERIAL LW-PLA, ~ 105 g*...
  • Page 11 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Aileron1_LW-left/right-profile3.stl MATERIAL LW-PLA, ~ 18 g*...
  • Page 12 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Aileron3_LW-left/right-profile3.stl MATERIAL LW-PLA, ~ 10 g*...
  • Page 13 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Tail-left/right_LW-profile3.stl MATERIAL LW-PLA, ~ 23 g*...
  • Page 14 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Wing5_LW-left/right-profile3.stl MATERIAL LW-PLA, ~ 78 g*...
  • Page 15 PLEASE NOTE In profile P3_SURFACE, there should not be more than one STL on the buildplate at the same time, otherwise slicing errors can occur! Depending on your printer, a brim may not be required. eagle-Wing7_LW-left/right-profile3.stl MATERIAL LW-PLA, ~ 37 g*...
  • Page 16 PROFILE P4_FLEX The following parts must be sliced with the PROFILE P4_FLEX. Please note the additional settings for the individual parts! eagle-Parts-flex-profile4.stl MATERIAL TPU ~ A95, Weight: ~ 4 g ADDITIONAL SETTINGS • Wall Line Count: 10 Tension belt lenght In the folder Individual parts you will find the tension belts also as a single file.
  • Page 17 • Neodym-Super-Magnet 5*5*5mm, 4 pieces • Rod connection, 3 pieces • Foil 0,5mm/0.020inches Din A4 (PVC, PET-G, Polycarbonate or Lexan), 1 piece Tools • Cutter knife • small Philips screwdriver • Drill Ø2,5mm, Ø1,5mm EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 18 30-50 A (must fi t the engine!) RECEIVER 4 Channel BATTERY 2S or 3S Lipo, about 1000-2200 MaH SERVOS Hitec HS-55 or EMAX ES08(A or D), 3 pieces max. 22,5 mm max. 12 mm (0.88 inches) (0.47 inches) EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 19: Assembling Manual

    For a strong connection, the adhesive surfaces should be sanded. Please only use fresh CA glue and activator spray for curing! The adhesive connections must hold perfectly! Connection pieces This surfaces should be sanded EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 20 Wait again for the glue to run in, and then spray the activator on it. Do not use too much glue, the flap must move easily! These spacers ensure the correct gap distance. Don´t remove! EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 21: Wings Assembly

    Wings assembly eagle-Wing2-left-profi le3.stl medium l. eagle-Wing1-left-profi le3.stl eagle-Parts-profi le1.stl remove support Wings assembly eagle-Wing5_LW-left-profi le3.stl medium l. STEP 1 medium l. medium l. eagle-Wing4_LW-left-profi le3.stl STEP 2 EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 22: Fuselage Assembly

    Fuselage assembly eagle-Body1-profi le3.stl medium l. eagle-Parts-profi le1.stl eagle-Body3_LW-profi le3.stl medium l. eagle-Body1-profi le3.stl medium l. eagle-Tail hinge-profi le1.stl eagle-Tail hinge-profi le1.stl EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 23: Tailplane Assembly

    First check that the steel wire fi ts into the tail hinge and that fi ts into the tail hinge and that it moves easily and accurately. it moves easily and accurately. eagle-Tail hinge-profi le1.stl Steel wire Ø1mm eagle-Tail-left_LW-profi le3.stl eagle-Tail hinge-profi le1.stl medium l.
  • Page 24 The rudder is enormously important for a safe fl ight and must not be smaller! First, please print the fi le Rudder template.pdf from the download folder. Insert the rudder into the slot of the fuselage and tighten it with two short tapping screws. EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 25 The cover is inserted into the ope- ning at the head and fixed with the magnets at the back. EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 26 Screw the TPU tensioners into the wings, attach the wings to the fuselage and clip the tensioners into the frame. Carbon rod Ø8*40mm eagle-Parts-flex-profile4.stl eagle-Parts-profile1.stl Carbon rod Ø8*920mm Head attachement The head is screwed on from the inside with four tapping screws 2*8mm and can be exchanged for the motor head.

  • Page 27: Motor Mounting

    SAFETY FIRST Use appropriate screws for motor mounting to ensure safe operation! Make sure the prop runs smoothly and does not generate vibrations. Check regularly that the motor mounting is absolutely tight! eagle-Motorhead-profile3.stl eagle-Motormount-profile1.stl Servo Elevator EAGLE PRINTING & ASSEMBLING MANUAL...
  • Page 28 LW-left-profi le3.stl eagle-Aileron2_LW-left-profi le3.stl eagle-Parts-fl ex-profi le4.stl eagle-Aileron3_LW-left-profi le3.stl NOTE Put wire in before glueing. eagle-Parts-profi le1.stl eagle-Wingservo_XXX-profi le1.stl When the servo is installed, fi x the cover (eagle-Servocovers-profi le3.stl) with a tape. EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 29 RC components Attach the Controller, receiver and battery with self-adhesive Velcro. EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...
  • Page 30 In-flight adjustments can be made later with the trim. IMPORTANT The eagle is programmed like a flying wing! This means that the ailerons also take over the function of the elevator. In addition, the tail must be mixed with the elevator function.

  • Page 31: Center Of Gravity (Cg)

    The aircraft must balance precisely 66 mm/2.59 inches behind the leading edge (see markings on the fuse- lage). For the first flight we recommend to move the center of gravity about 5 mm/0.2 inches further forward. EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 32: Technical Specifications

    TECHNICAL SPECIFICATIONS WINGSPAN 2000 mm/78.7 inches LENGHT 806 mm/31.7 inches FLIGHT WEIGHT 1160 grams (Motor version) Please be aware of wildlife and fly the eagle only in areas where it is allowed! EAGLE PRINTING & ASSEMBLING MANUAL © PLANEPRINT...

  • Page 33: Age Recommendation

    Filaments, printing supplies, hardware or mitter or model. consumables that can not be used after faulty 3D printing will not be replaced by PLANEPRINT.com in any way. Always keep the model in view and under control. Use only fully charged batteries.
