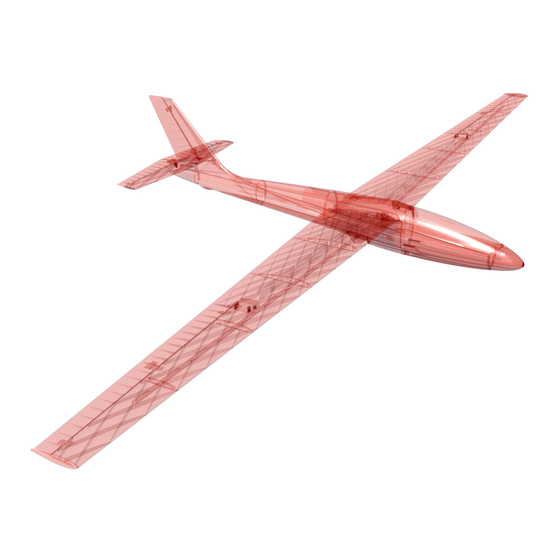

Foka 4
Foka 4
• Detailed semiscale model in 3D super lightweight construction.
• Real 1 wall construction (Currently only supported by CURA!).
• Wingspan 2000 mm (78.7 inches).
• Recommended for advanced pilots.
V4 2020
WATCH OUT!
This 3D print model
is specially optimized
for CURA.
STL DATA FOR DOWNLOADING
www.planeprint.com
AT
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Foka 4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PLANEPRINT Foka 4

Summary of Contents for PLANEPRINT Foka 4

  • Page 1 Foka 4 Foka 4 • Detailed semiscale model in 3D super lightweight construction. • Real 1 wall construction (Currently only supported by CURA!). • Wingspan 2000 mm (78.7 inches). • Recommended for advanced pilots. WATCH OUT! STL DATA FOR DOWNLOADING...
  • Page 2 Our STL files are provided with indelible copyright water- marks that can be verified at any time. Thank you for your understanding and have fun with your PLANEPRINT MODEL! FOKA 4 PRINTING & CONSTRUCTION MANUAL...
  • Page 3 PRINTING MANUAL FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...

  • Page 4: Additional Settings

    Recommended additional settings are listed in the screenshots. INFO STL: Interconnects_profi le1.stl Material: PLA Weight: ~ 4 g ADDITIONAL SETTINGS None required INFO STL: Parts_profi le1.stl Material: PLA Weight: ~ 4 g ADDITIONAL SETTINGS None required FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 5 Recommended additional settings are listed in the screenshots. INFO STL: Wheel_profi le2.stl Material: PLA Weight: ~ 4 g ADDITIONAL SETTINGS • Wall Line Count 3 • Top Layers 3 • Bottom Layers 0 • Skirt (no Brim) FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 6 Depending on your printer, a brim may not be required. INFO STL: Canopy_profi le3.stl Material: PLA Weight: ~ 18 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 7 STL: Fuselage1-glider_profi le3.stl Material: PLA Weight: ~ 9 g ADDITIONAL SETTINGS Reduce Nozzle heat a little and more fan around the nose. Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 8 Depending on your printer, a brim may not be required. INFO STL: Fuselage2_profi le3.stl Material: PLA Weight: ~ 39 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 9 Depending on your printer, a brim may not be required. INFO STL: Fuselage4_profi le3.stl Material: PLA Weight: ~ 34 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 10 Depending on your printer, a brim may not be required. INFO STL: Rudder+Elevator1_profi le3.stl Material: PLA Weight: ~ 38 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 11 Depending on your printer, a brim may not be required. INFO STL: Servo-covers-9mm_profi le3.stl Material: PLA Weight: ~ 2 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 12 The wings can also be printed indi- vidually („STL individually“ folder). INFO STL: Wing2-both_profi le3.stl Material: PLA Weight: ~ 78 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 13 Depending on your printer, a brim may not be required. INFO STL: Wing4-both_profi le3.stl Material: PLA Weight: ~ 37 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 14 INFO STL: Wing5-both_profi le3.stl Material: PLA Weight: ~ 37 g ADDITIONAL SETTINGS Depending on your printer, a brim may not be required. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 15 The following parts must be sliced with the profi le PROFILE P4_FLEX (fl exible materials). Recommended additional settings are listed in the screenshots. INFO STL: Hinges_profi le4.stl Material: TPU soft or middel Weight: ~ 1 g ADDITIONAL SETTINGS None required FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...

  • Page 16: Required Accessories

    2S ca. 1000 mAh or 3S LiPo-battery 2S ca. 1000 mAh or 3S LiPo-battery TIPP We recommend the purchase of a small range of screws, which can be used for all future PLANEPRINT models. TOOLS Simply search the Internet for: M2 Flat Head Tapping •...
  • Page 17 CONSTRUCTION MANUAL CONSTRUCTION MANUAL FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 18 Pay attention to the Neodym Super Magnet 5x5x5 mm correct alignment of the magnets so that they do not reject each other! FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 19 The adhesive connections must hold perfectly! and align the parts perfectly. If glue co- mes out, wipe with a cloth. Then spray IMPORTANT! activator spray on the glue points. This surfaces should be sanded Connections FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...

  • Page 20: Assembling The Fuselage

    Glue in the wheel Fuselage3 Fuselage3 Fuselage2 Remove support Fuselage1-motor or Fuselage1-glider Fuselage2 First glue the Interconnects (STL Interconnects_profi le1) into the openings. Then glue both parts together with plenty of CA glue. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 21 Be careful not to use too much glue, the flap must move easily! These spacers ensure the correct gap distance. Don´t remove! Step 1 Step 2 FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 22 Clean the edges of the elevator so that it lies exactly on the fuselage. Finally, stick the assembled rudder to the fuselage. Interconnects Step 1 STL Interconnects Right Not correct! FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT Wing-1...
  • Page 23 STL Interconnects 6 mm carbon fi ber Tube Lenght: 900 mm (35.4 inches) The carbon tube of the opposite wing must be fl ush here. FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 24 Then drill diagonally from below through the fuselage into the tube and screw it tight. tapping screw Ø2*8mm Drill Ø1.5 mm FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...

  • Page 25: Installation Of The Wing Servos

    You can use 12 mm or 9 mm servos for the wings. First screw the servo to the appropriate cover. Then screw the cover onto the wing. Stick the pin horn on well and check regularly! 12 mm Servo Hitec HS-55 FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...
  • Page 26 Installation of the fuselage servos Carbon wire Ø1,2 FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...

  • Page 27: Transmitter Configuration

     = 30 mm  = 30 mm TECHNICAL SPECIFICATIONS 940 mm (37 inches) 2000 mm (78.7 inches) FLYING WEIGHT: Glider ~ 900 g, motorized ~ 955 g (depending on RC components and 3D printing) FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...

  • Page 28: Control Direction Test

    5. Move the rudder lever to the left. The rud- der should move to the left. 6. Move the rudder lever to the right. The rud- der should move to the right RUDDER FOKA 4 PRINTING & CONSTRUCTION MANUAL © PLANEPRINT...

  • Page 29: Age Recommendation

    Filaments, printing supplies, hardware or mitter or model. consumables that can not be used after faulty 3D printing will not be replaced by PLANEPRINT.com in any way. Always keep the model in view and under control. Use only fully charged batteries.
