3.2.2 Deviation

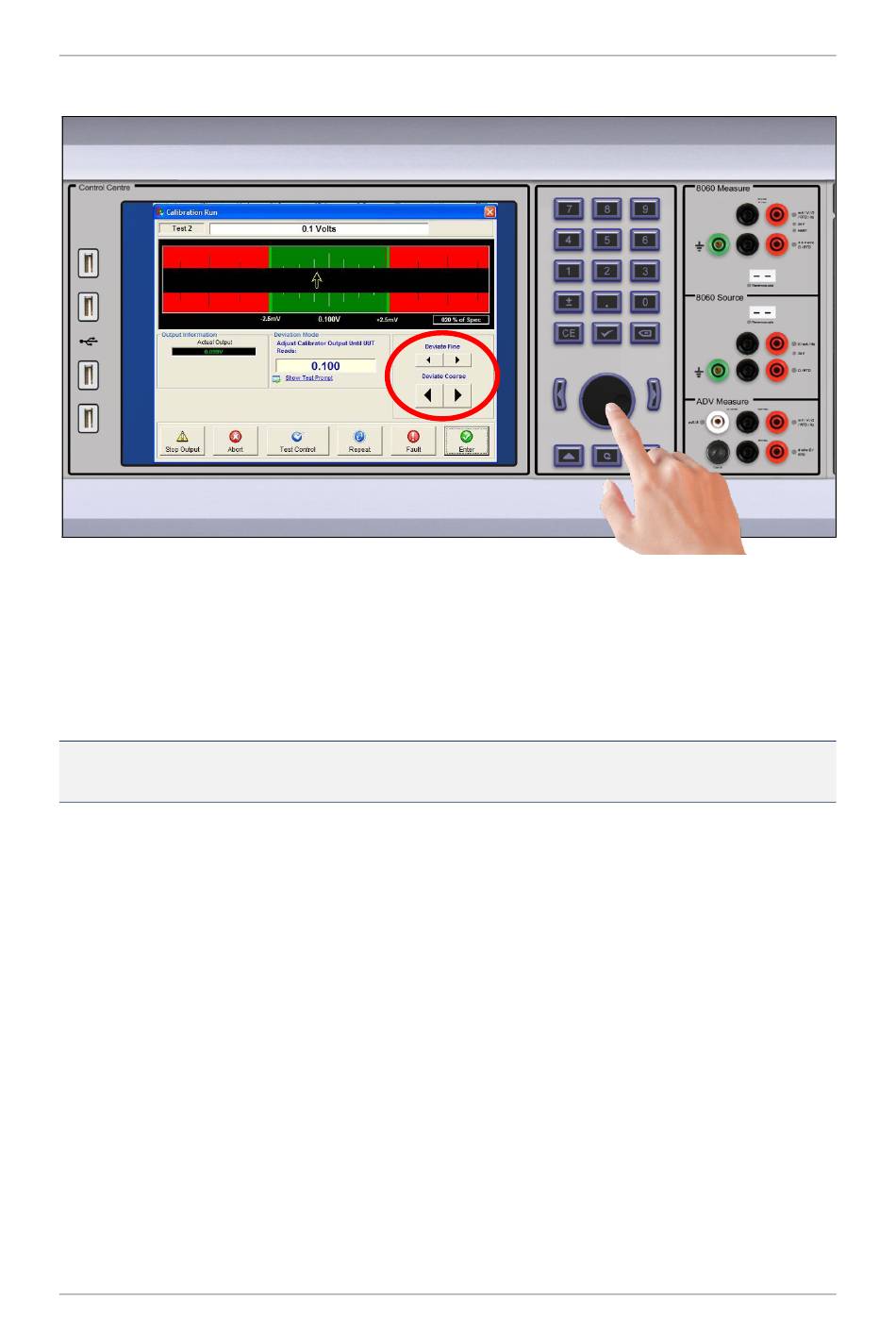

In deviation mode the jog dial becomes active.
The output is then finely adjusted by rotating the dial.
To confirm the value press the enter button or alternatively press the jog dial.
Note: Pressing the enter button activates the highlighted button at the bottom of the test screen. If the left/right or
up/down buttons have been pressed the Enter button may not be highlighted.
